• Model NO.：GD150
• Gross Weight：3500kg
• Transport Package：Wooden Case
• Specification：CE
• Trademark：SHINWEI
• Origin：China Shanghai

Basic Info.

Model NO. GD150 Gross Weight 3500kg Transport Package Wooden Case Specification CE Trademark SHINWEI Origin China Shanghai

Product Description

Complete Hard Candy Depositing Line with PLC control



FEATURES:
The processing line is a compact unit which can continuously produce various kinds of hard candies under a strict sanitary condition. It is also an ideal equipment which can produce out good quality products with the saving of both the manpower and the space occupied.
1) PLC /computer process control available;
2) An LED touch panel for easy operating;
3) The standard production capacity is from 150kgs/h to 600kg/h;
4) The main parts is made of hygienic Stainless Steel
5) Optional (mass) flowing controlled by Frequency inverters;
6) In-line injection, dosing and pre-mixing techniques for the proportional addition of liquid;
7) Dosing pumps for the automatic injection of colors, flavors and acids;
8) Use AUTOMATIC STEAM CONTROL SYSTEM instead of manual steam valve which controls a stable steam supply to the microfilm cooker;

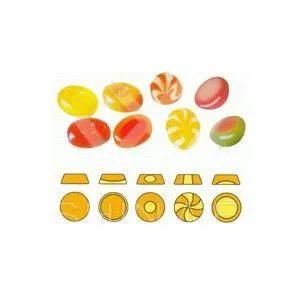

9) "two-color stripe depositing", "twocolor double layers depositing", "central filling", "clear" hard candies and etc. can be made.
10) Moulds can be made according to the candies samples provided by the customer.

finished products:







Model	GD150	GD300	GD450	GD600
Output(kg/h)	150	300	450	600
Max candy weight	6g	6g	6g	6g
speed	55~65 n/min	55~65 n/min	55~65 n/min	55~65 n/min
Steam consumption Steam pressure	250kg/h, 0.5~0.8MPa	300kg/h, 0.5~0.8MPa	400kg/h, 0.5~0.8MPa	500kg/h, 0.5~0.8MPa
Compressed air consumption Compressed air pressure	0.2m3/min, 0.4~0.6MPa	0.2m3/min, 0.4~0.6MPa	0.25m3/min, 0.4~0.6MPa	0.25m3/min, 0.4~0.6MPa
Electric power needed	18kW/380V	27kW/380V	34kW/380V	42kW/380V
Total length(m)	15	17	17	20
Gross weight	3500 kg	4000 kg	4500 kg	5000 kg
