• Model NO.：HT-NFLJ5A
• Application：Milk
• Customized：Customized
• Transport Package：Fumigation-Free Wooden Case
• Specification：On The Specification
• Trademark：HENTO
• Origin：Henan, China(Mainland)
• Production Capacity：500-800L,H

Basic Info.

Model NO. HT-NFLJ5A Application Milk Customized Customized Transport Package Fumigation-Free Wooden Case Specification On The Specification Trademark HENTO Origin Henan, China(Mainland) Production Capacity 500-800L/H

Product Description

Great Demand Milk Fat Separator / Milk Cream Separator Machine / Milk Separator Small1.Product Description
The milk cream separator is the most important equipment in dairy industry. Mainly used in the skim milk, butter, casein, cheese production, anhydrous butter production process, removing cream and foreign impurities in the milk. Similar materials can also be used for clarification and purification, such as coconut milk, fish oil, lemon oil.
This product absorbs the advantage of the same kind foreign .Product in Germany and Russia. All the parts that may contact the feedstock are made of stainless steel. Availably reduce the chemical effect of the feedstock and the machine spare parts.
Power drive adopts the friction clutch, Transfer power by the fluid, start reliably, prevent overland. The bearings are SKF grade in Sweden, guarantee working precision of the machine.
The separator adopts the PLC automatic control system, can carry out automatic de-slugging, ability of fitness is stronger, automatic degree is high. Easy to adjust, worker labor strength is opposite to ease, the solids content ratio in the mixture fluid is widely.

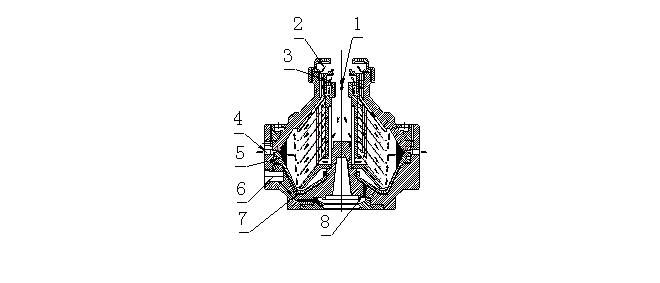

When working, the sealing water 8 is bumped into the sealing room 7, rising the sliding piston 5,and sediment ejection hole 4 is shut down, then milk
to be processed are fed to the bowl from feeding pipe 1, Under the effects of centrifugal force, the solids which has heavier density is collected on the bowl wall, After a while, the opening water 8 is bumped into the opening room 6, falling the sliding piston 5,open the sediment ejection hole 4, impurities are de-sludged from the bowl. The lighter liquid (cream) flow along the inner side of the discs into the passage in the upper distributor, the ighter product is discharged from the machine by the lower centripetal pump 3.The heavier liquid(skim milk) flow along another passage, discharged from the machine by the upper centripetal pump 2.Thus the milk is separated well. The separator adopts self de-slugging and centripetal pump. Thus the machine can work continuously for a long time, attain good separation effects in.

2.Technical Parameter


Model	HT-NFLJ5A	HT-NFLJ5B
Bowl inner	200mm	230mm
Bowl speed	7546r/min	7546r/min
Product	500-800L/H	500L/H
Fat output	Open	Centripetal pump
Skim milk output	Open	Centripetal pump
Sludge	Artificial	PLC
Power	380v/0.55kw	380v/1.5kw
Temperature	35-55ºC	35-55ºC
Fat in skim milk	0.015-0.05%	0.015-0.05%
Weight	90kg	120kg
Dimension	600*360*600mm	700*550*800mm

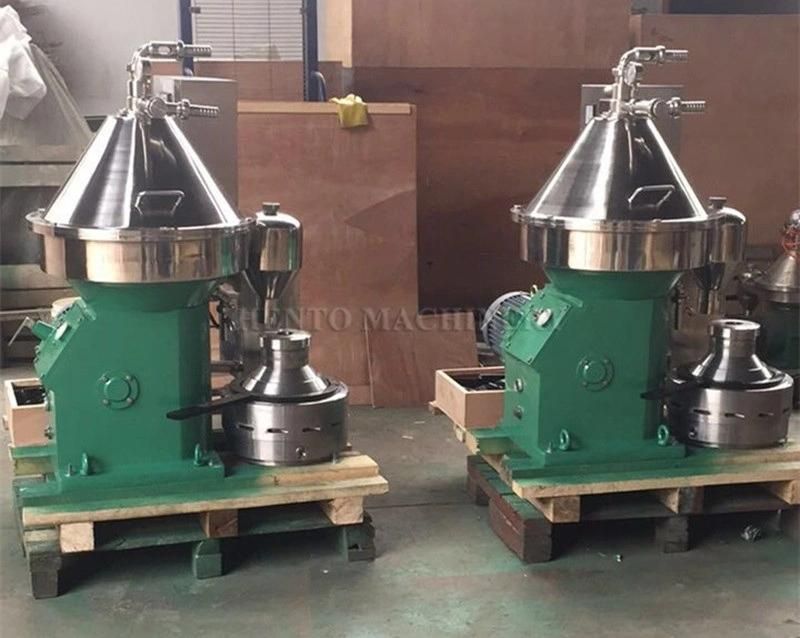

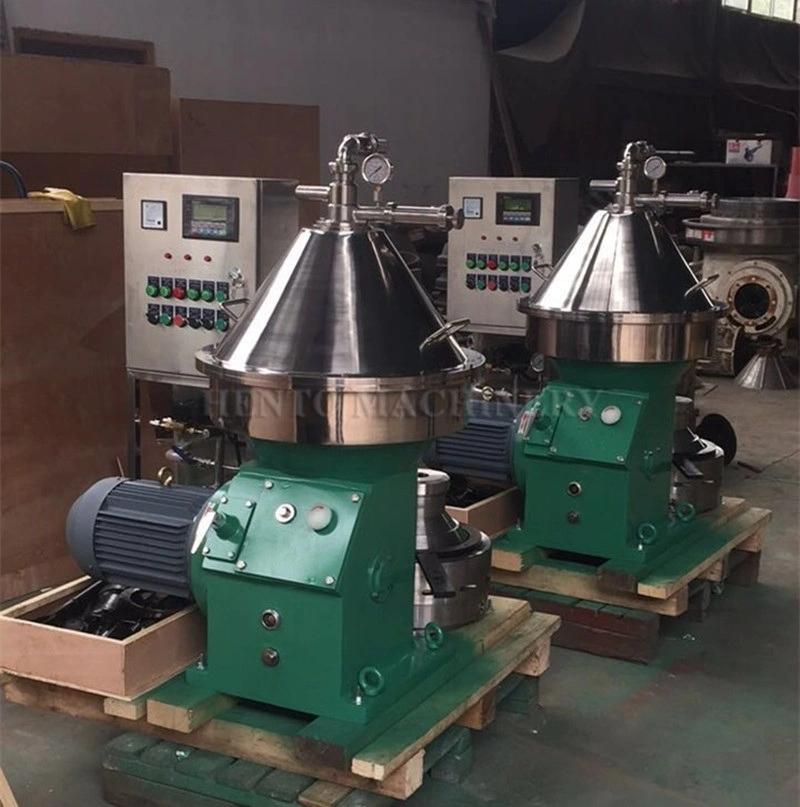

3.Product Pictures


4.Package & Shipping


5.Company Certificates


6.Our customers


7.Contact Us
