Coconut Milk Press Machine

Dalian Reyes Import & Export Co., Ltd.
  • Condition：New
  • Customized：Customized
  • Voltage：380V
  • Composition：Coconut Milk Machine
  • Processing Material：Coconut
  • Process：Press Machine

Base Info

  • Model NO.：CMM
  • Transport Package：Wooden Case
  • Specification：material: stainless steel
  • Trademark：REYES
  • Origin：China
  • Production Capacity：500sets,Year

Description

Model

CMM-11

CMM-15

Power(kw)

11

15

Capacity(kg/h)

1.5-2T/h

2.5-3T/h

Dimension(mm)

2100*710*1550

2400*710*1550

N.W.(kg)

1000

1200

Milk Extracting Rate

60-65%

60-65%

Also we have hydraulic Coconut Milk Extracting Machine for your choice. Besides, we have other coconut processing machinery such as washer, grinder, dryer and so on.

Model

PSYZ-100

Power(kw)

5.5

Capacity(kg/h)

1T/h

Dimension(mm)

1200*800*2200

N.W.(kg)

1500

Pressure(T)

100

Milk Extracting Rate

68%

4.Equipment strueture and working principle

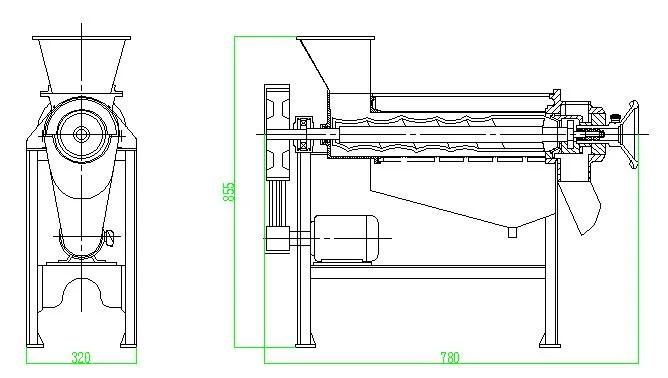

(refer to the drawing)
  1. Structure
This machine consists of such parts as the front support,feeding chute,spiral,stainer,juice container,the back support ,waste outlet.The left of screw spindle is in the rolling bearing and the right is in the handwheel bearing.The motor pulls a pair of triaagle belts to make tae screw work.
  1. Working principle
The componeat of this equipment is screw.The diameter gradually increases along the direction of fruit waste outlet while the distance from the screw clecreases,thus squeezing the materrals.
The rotational direction of screw spindle is clockwise.
5.Installation and Maintenance
  1. The machine must be installed in the horizontal line and must be fixed by the screw.
  2. Operation
When turning on the machine,the worker must regulate the press regulator to make the break become wide and taen it will nahoow.
  1. Maintenance
It must be washed when turning on the machine, especially the stainer. If there is too much fiber, the stainer must be washed very often.
