Machinery FOR Food Beverage Cereal

Hot Air Circulating Oven for Chewing Gum Production

WUXI YEAR INTERNATIONAL TRADING CO., LTD.
  • Usage:Biscuit, Cake, Pizza, Bread, Gum Base
  • Power Source:Electric
  • Timing Device:With Timing Device
  • Type:Oven
  • Voltage:380V
  • Customized:Non-Customized

Base Info

  • Transport Package:Wooden Case
  • Origin:China

Description

Basic Info.

Transport Package Wooden Case Origin China

Product Description

RXH Hot Air Circulating Oven for Pharmaceuticals and Snack Food Production

Rxh Hot Air Circulating Oven for Pharmaceuticals and Snack Food Production



Product description:
This RXH  Hot air circulation oven is used for heating and curing, drying and dewatering of materials in medicine, chemical industry, food, agricultural and sideline products, aquatic products, light industry and other industries.Such as raw materials, Chinese medicine medicinal slices, extract, powder, granule, dehydrated vegetables and so on .

Working principle
The hot air circulation oven air circulation system adopts the fan circulation air supply mode, the air circulation is uniform and efficient.The air source is driven by the circulating air supply motor (with no contact switch) through the heater, and the hot air is sent out, and then through the air duct to the oven, and then the air after use is inhaled into the air duct to become the air source again for heating.Ensure indoor temperature uniformity.When the temperature value swings due to the opening and closing action, the air supply circulation system quickly returns to the operating state until the set temperature value is reached.
The heating element is controlled by a temperature controller.

Feature
1, hot air circulation in the oven, high thermal efficiency, energy saving.
2. The oven is equipped with air duct by means of forced ventilation to ensure even drying of materials.
3. The oven runs smoothly.Automatic temperature control, easy installation and maintenance.
4, wide range of application, can dry all kinds of materials, is an ideal general drying equipment


Technical parameters
Model                                 Drying area
(CBM)
Dry quantity
 (kg/Batch)
Electric Heating
 Power (KW)
Power of Blower
Fan (KW)
Supporting
Baking Pan
Provided Baking
(set)
Dimension(mm)Weight
(kg)
RXH-2-C21060.45601000 X 860 X 1260350
RXH-4-C42080.451201000 X 860 X 1260400
RXH-5-C52580.451601500 X 1000 X 2044480
RXH-7-C76090.452411500 X 1000 X 2160800
RXH-14-C14120150.454822250 X 1200 X 20001050
RXH-27-C27240300.45 X 29642250 X 2160 X 21601100
RXH-41-C41360450.45 X 314463200 X 2260 X 20001950
RXH-54-C54480600.45 X 419284360 X 2160 X 20002380

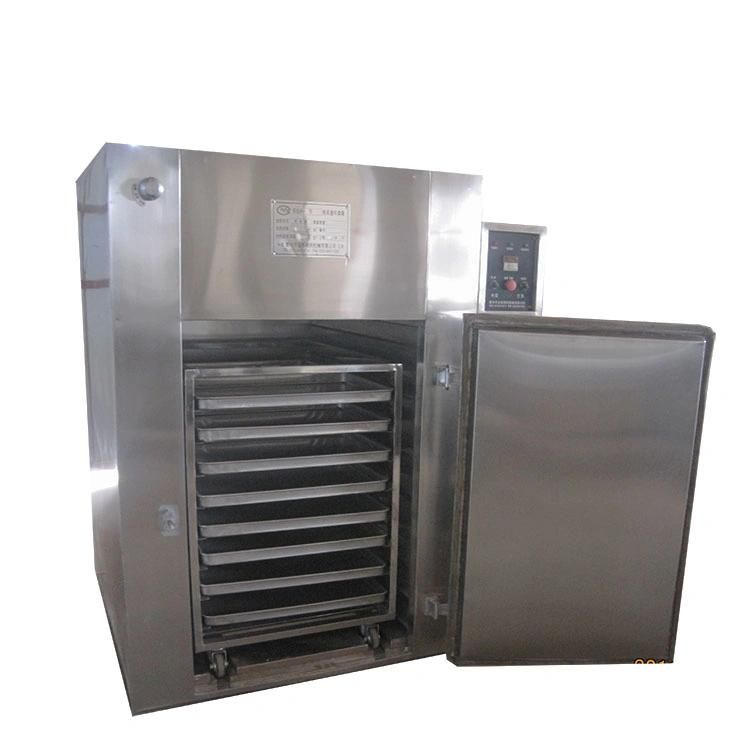

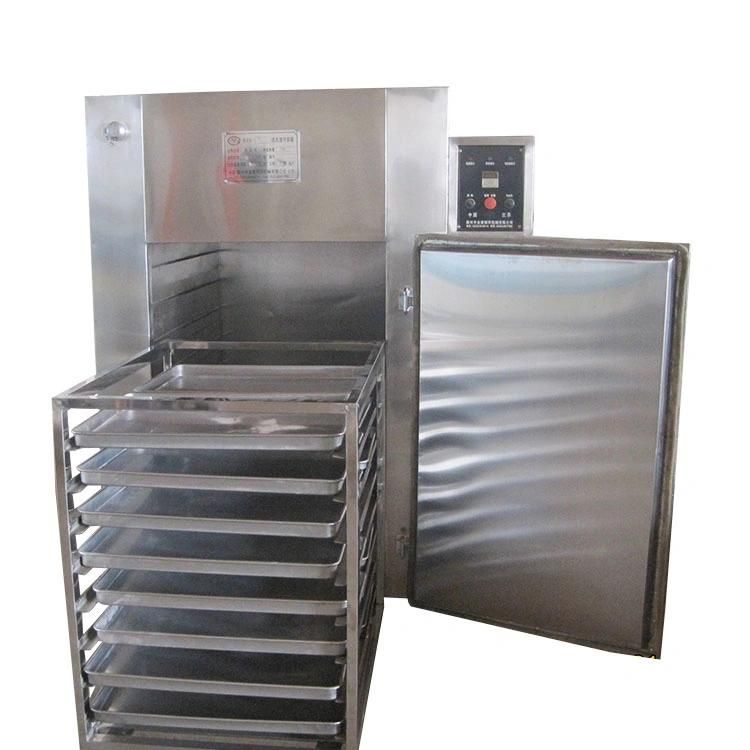

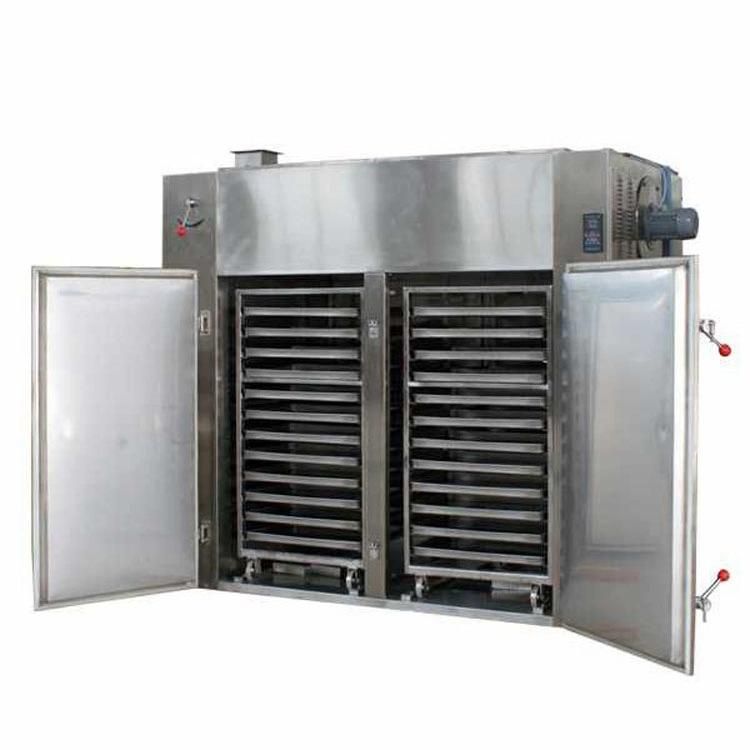

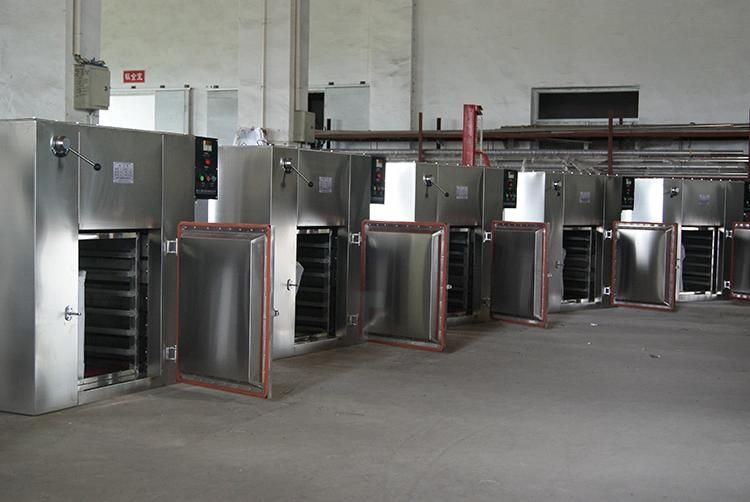

Product show:
Rxh Hot Air Circulating Oven for Pharmaceuticals and Snack Food Production

Rxh Hot Air Circulating Oven for Pharmaceuticals and Snack Food Production
Rxh Hot Air Circulating Oven for Pharmaceuticals and Snack Food Production

Our Service:
♦ Project Design
Assist you to choose the proper equipment according to your requirement.

♦ Installation Training
Provide telephone guidance for equipment installation and debugging.
Provide free relevant training as customer required.
Long-term technical support.

♦ After-sale service
One year warranty, life-long maintenance;
24 hours online for technical consulting service;

♦ One year warranty time
From the date which the product is qualified commissioning. Any damage except the wrong operation during warranty period is repaired freely. The travel and hotel expenses should be paid by buyer.

♦ Full document
All necessary documents will be provided.


Packing and Delivery:


Rxh Hot Air Circulating Oven for Pharmaceuticals and Snack Food Production

Contact details:
