Us 3A Food Processing Positive Displacement Screw Pump with Electric Motor

Donjoy Technology Co., Ltd.
  • Processing Material：Natural Ingredients
  • Application：Pet Food, Chocolate, Ice Cream, Vegetable, Fruit, Dairy, Beverage, Food Transfer
  • Certification：CE, 3A
  • Hygienic Level：Sanitary
  • Transfer Particle：Yes
  • Hopper：Option

Base Info

  • Max Flow：110 M3,H

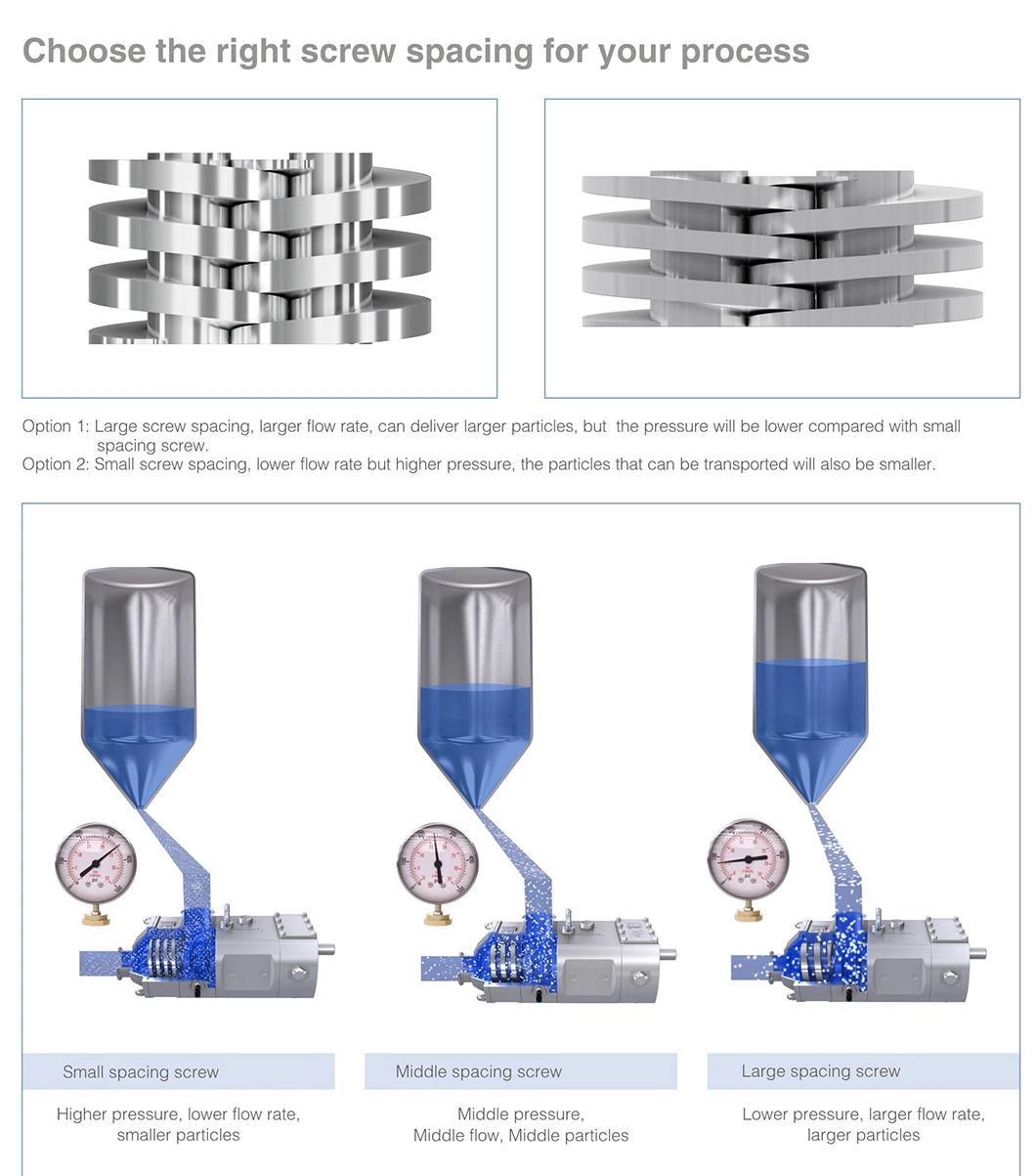

  • Max Particle：23mm
  • Product Name：3A Certified Food Grade Double Screw Pump
  • Transport Package：Wooden Case

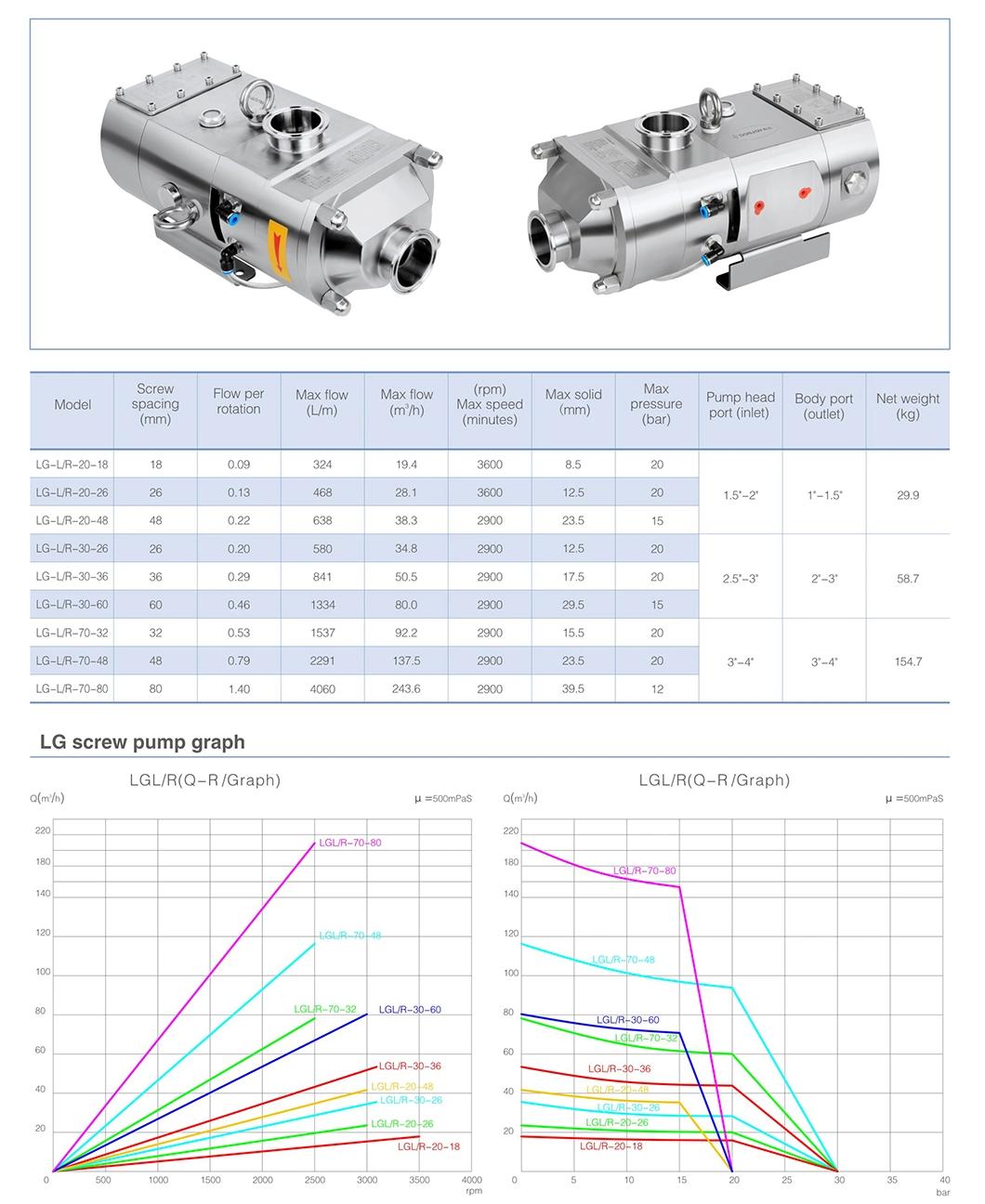

  • Specification：LG-L,R
  • Trademark：DONJOY
  • Origin：China
  • HS Code：8413602190

Description

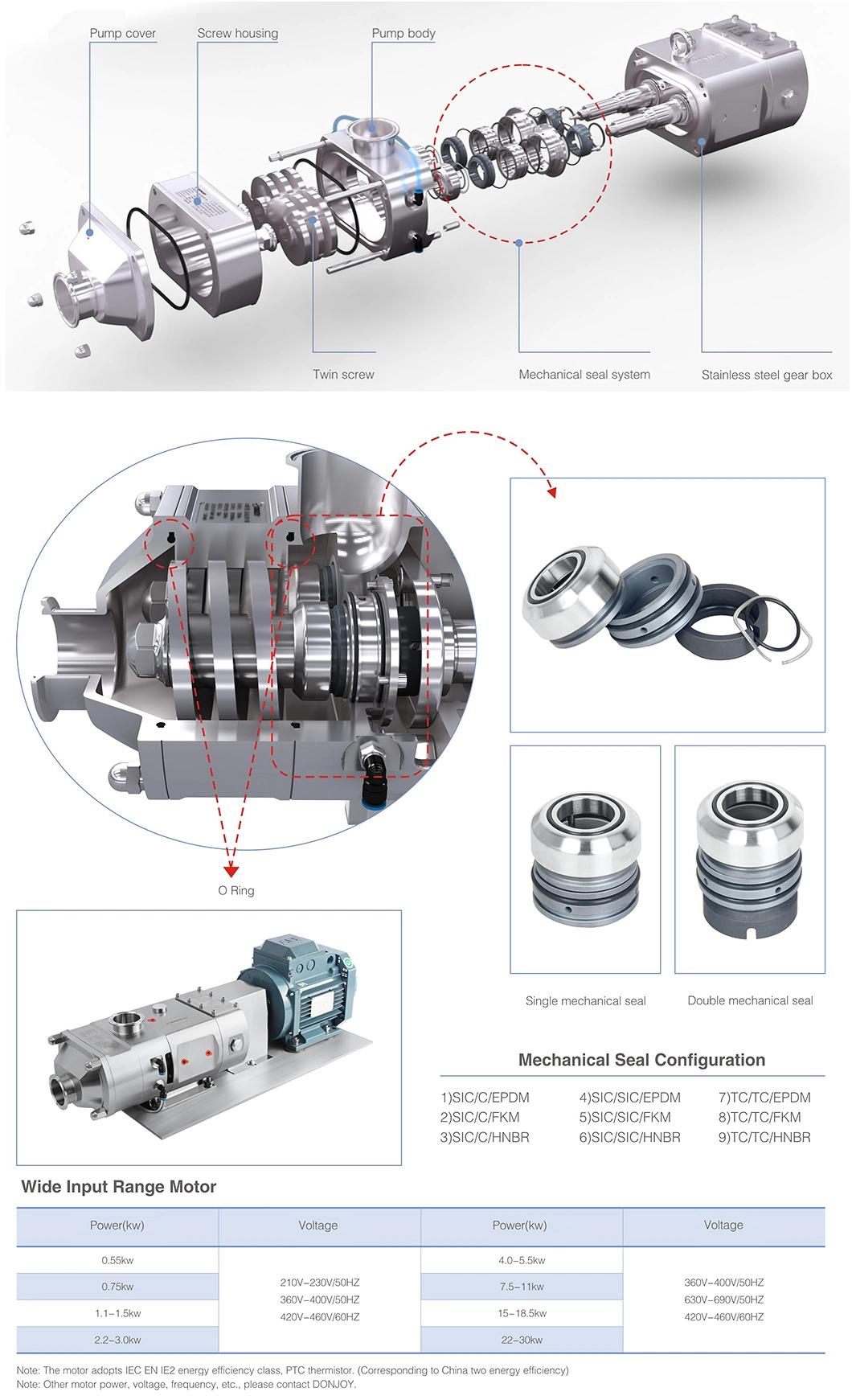

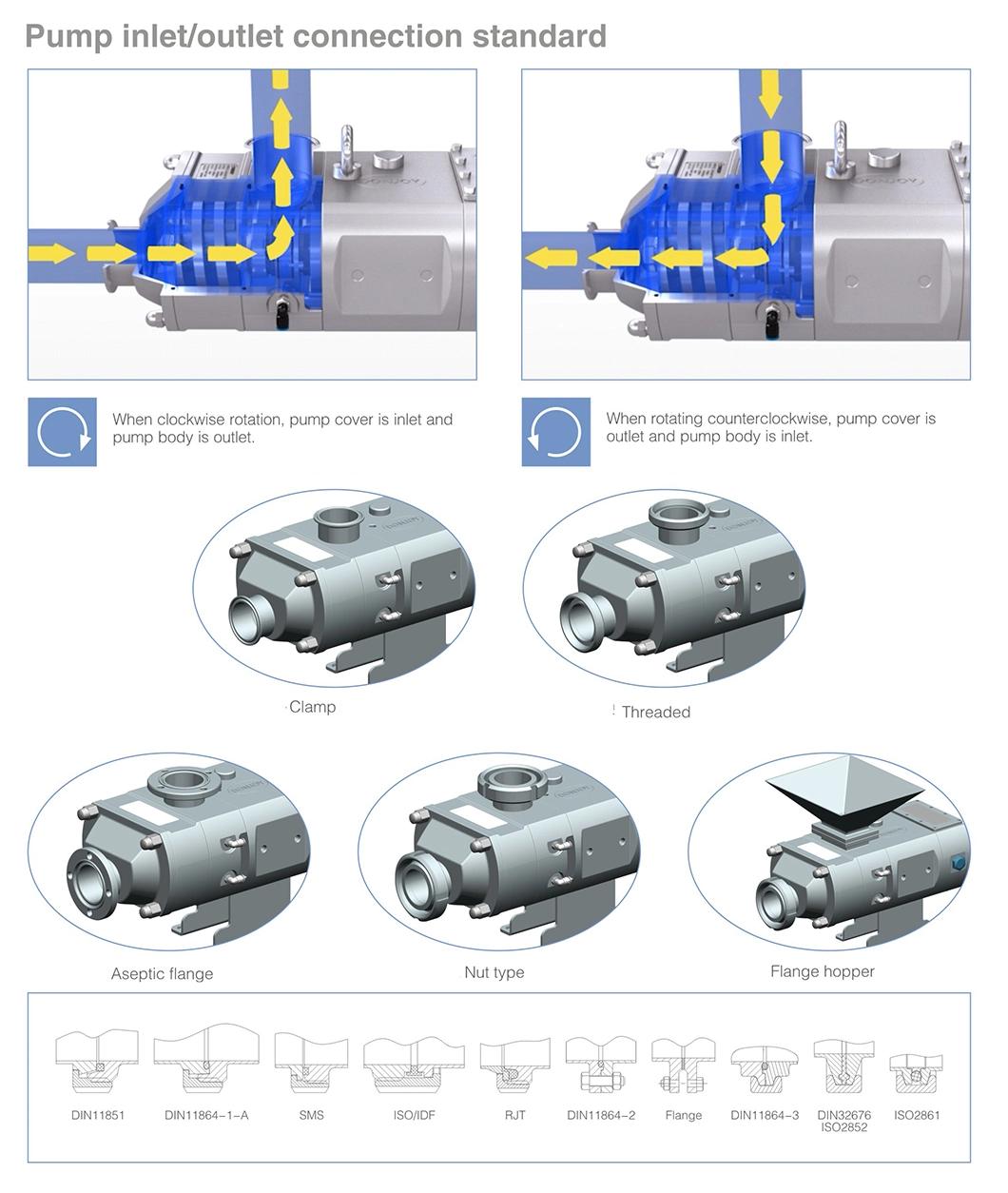

Item:3A Certified Low Shear Twin Screw Pump for Food Beverage ProcessingInlet & Outlet Sizes1 1/2″-5″ Contact Material:SS316LSeal Material:FKM(Viton)Max. Flow:110 m3/hMax particles23mmWorking temperature-40 degree to 150 degree celsiusSurface treatmentRA 0.6um,  RA 0.4umSpeed range:10-3500 RPMMechanical seal:SIC/SIC/FKM(Standard), Single or double mechanical sealWorking temperature:-40~150 degree centigradeVoltage:110V, 220V, 380VMotor:ABB or othersMotor Frequency:50HZ, 60HZAvailable Connection:Clamped, Threaded, FlangedStandard:DIN, SMS, 3A, RJT, ISO, IDFOperated:Electic motorCertificate:3-A-02-11 (1759), FDA.177.2600, CE-MD/06-42 NO. 705201402401-00Application Range: Mash, Dairy, food, beverage, pharmacy, cosmetic etcPackaging Details:Plywood case
• Delicate, Low Shear Product Handling
• Ability to Pass Soft Solids up to 2.5" in Diameter
• Ability to Run up to Speeds of 3,500 RPMs

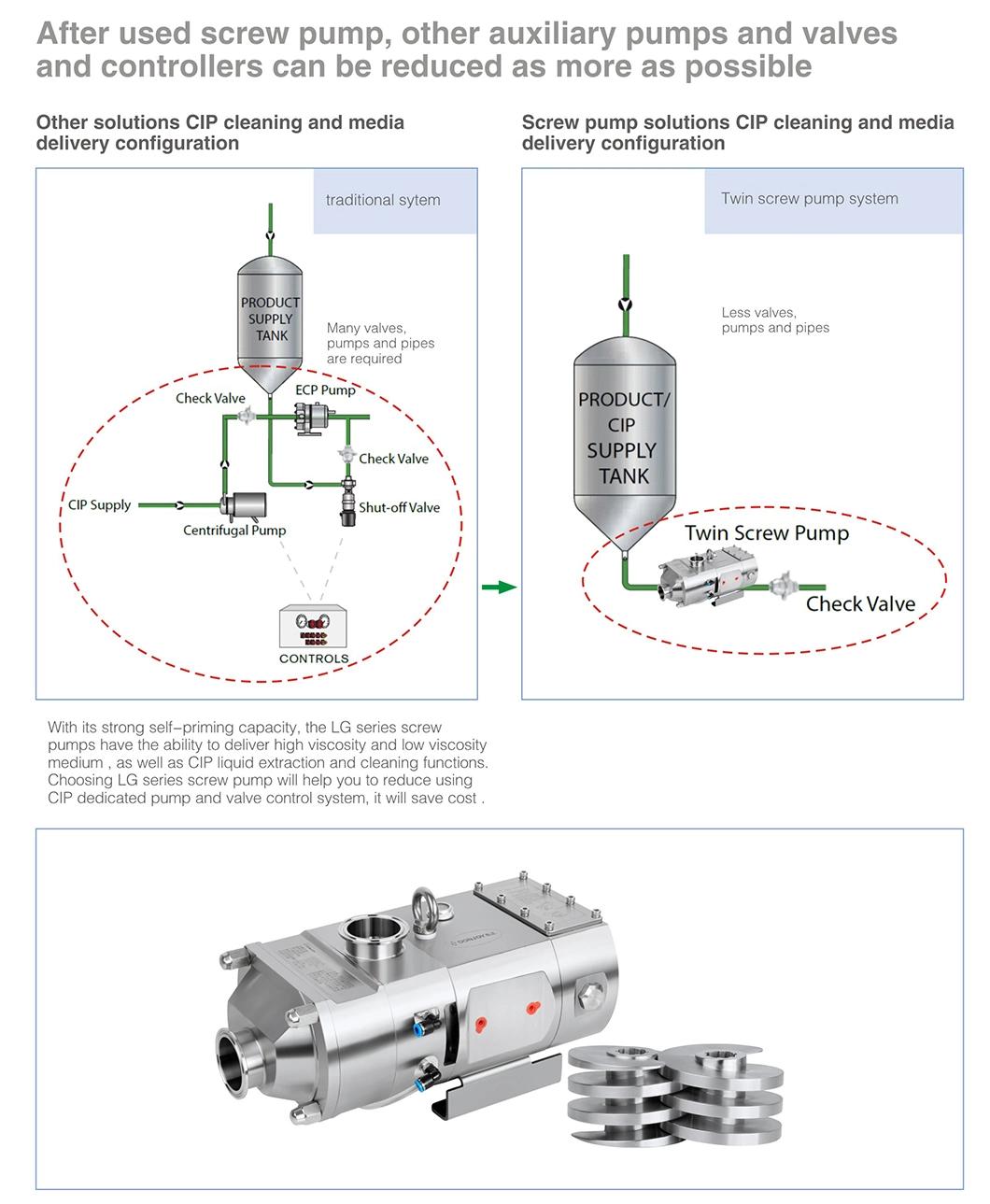

• Able to Generate the Velocities Required for CIP, with No Separate CIP Return Pump Required!
• Fully CIP-able
• Ability to Run Dry for Extended Periods of Time
• High Suction Capability • Smooth, Virtually Pulse-Free Delivery of Product
• High Resistance to Abrasive Products
