Elevator Bucket for Rice Mill Machinery Agriculture Processing Machine Parts
Hubei Pinyang Technology Co., Ltd.- Type:Rice Mill
- Application:Rice flour
- Voltage:380V
- Appearance:Vertical
- Press Materials:Rice
- Press Series:Second
Base Info
- Model NO.:rice mill
- Condition:New
- Customized:Customized
- Transport Package:Woven Bag
- Specification:plastic
- Trademark:pinyang
- Origin:Wuhan China
- HS Code:84379000
- Production Capacity:500000pieces,Year
Description
Basic Info.
Model NO. rice mill Condition New Customized Customized Transport Package Woven Bag Specification plastic Trademark pinyang Origin Wuhan China HS Code 84379000 Production Capacity 500000pieces/YearProduct Description
Features

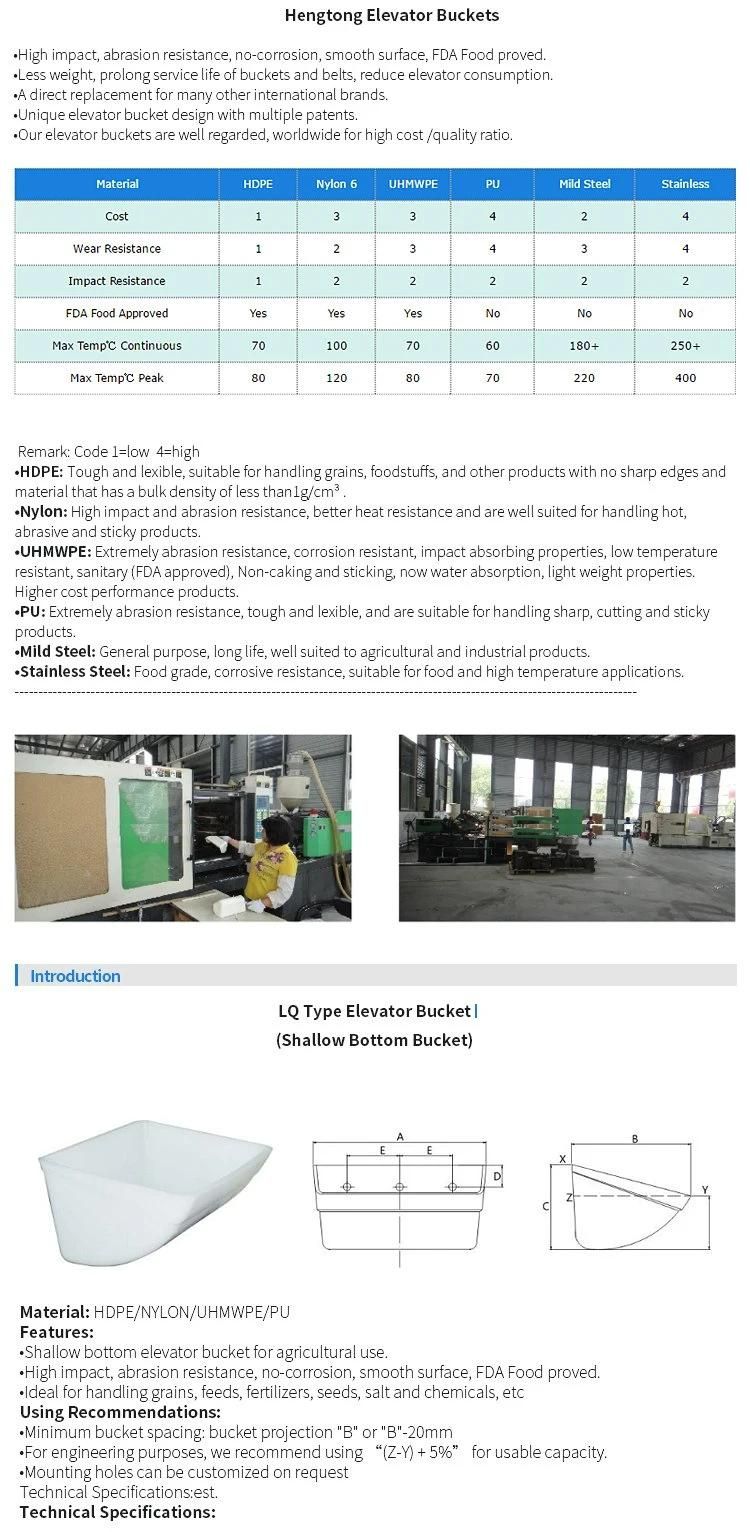

The product has high impact resistance and elasticity. When the hoist collides with a metal foreign body or a casing during operation, it can produce elastic shielding, reduce noise, and avoid the frequent deformation and tearing of the metal material bucket. Improve production efficiency.Unique design, the bottom of the bucket with a slide, is conducive to preventing the break in the lifting process; hoist line speed of 0.5-0.8 m / s; with a strong lifting belt with better results.
Use suggestions
1.suitable for gravity or mixed discharge.
2.the proposed minimum bucket distance for the bucket convex width "B" +25 mm, according to the amount of lifting requirements to reduce the small bucket installation spacing;
3.the proposed lift line speed ≤ 2.5 m / s; head wheel diameter can be obtained when the higher linear speed;
4.recommended "volume (L)" as the engineering capacity of the design.

Model | A | B | C | D | E | Hole number | Aperture | volume |
MD2921 | 294 | 210 | 200 | 55 | 113 | 3 | 9 | 6.2 |
MD2918 | 290 | 178 | 195 | 70 | 100 | 3 | 9 | 5.38 |
MD2419 | 246 | 190 | 221 | 65 | 90 | 3 | 9 | 4.74 |
MD2313 | 230 | 138 | 136 | 44 | 125 | 2 | 9 | 2.21 |
MD2118 | 218 | 195 | 210 | 60 | 140 | 2 | 9 | 4.51 |
MD2017 | 207 | 179 | 194 | 60 | 139 | 2 | 9 | 3.6 |
MD1715 | 175 | 156 | 176 | 52 | 113 | 2 | 9 | 2.4 |
MD1413 | 142 | 143 | 172 | 52 | 93 | 2 | 9 | 1.6 |
MD1310 | 207 | 110 | 128 | 37 | 80 | 2 | 9 | 0.88 |
MD1010 | 108 | 110 | 129 | 48 | 50 | 2 | 9 | 0.7 |
