• Model NO.：DR-SJB
• Transport Package：with Wooden Box
• Specification：CE certificate
• Trademark：D&R
• Origin：Ningbo of China
• HS Code：8438900000
• Production Capacity：2000 Sets,Year

Basic Info.

Model NO. DR-SJB Transport Package with Wooden Box Specification CE certificate Trademark D&R Origin Ningbo of China HS Code 8438900000 Production Capacity 2000 Sets/Year

Product Description

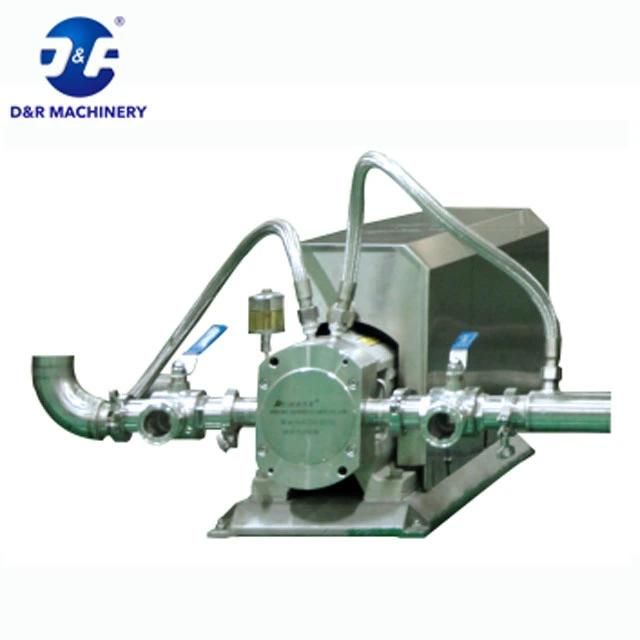

Water-circulating Chocolate Dosing Pump Chocolate Feeding Pump with High Speed
Production Specification:
The chocolate pump is specialized for delivery of the chocolate mass.
The pump body is with  water-circulating heat preservation jacket system. Customers can choose the different model according to the flow rate required. The pump can be used individually or with other production lines for automatic chocolate mass feeding.
The pump head and shell  is stainless steel.
Tri-impeller rotor :the capacity and performance is better than other rotors .

Technical data

Type	Capacity (L/r)	Rotation speed(r/min)	Flow(m3/h)	Pressure(MPa)	Power(kw)	Inlet&outlet DN(MM)
DR-ZZB12- 0.1C	0.01	10-720	0.1	0.1-1.2	0.12-1.1	10
DR-ZZB12- 0.5C	0.04	10-720	0.5	0.1-1.2	0.25-1.5	15
DR-ZZB12- 2C	0.15	10-720	2	0.1-1.2	0.25-2.2	25
DR-ZZB12- 5C	0.32	10-500	5	0.1-1.2	0.37-3	40
DR-ZZB12- 10C	0.65	10-500	10	0.1-1.2	1.5-7.5	50
DR-ZZB12- 15C	1.1	10-500	15	0.1-1.2	2.2-11	65
DR-ZZB12-20 C	1.74	10-500	20	0.1-1.2	2.2-15	65
DR-ZZB12- 30C	2.6	10-500	30	0.1-1.2	3-22	80
DR-ZZB12- 40C	3.65	10-500	40	0.1-1.2	4-30	100
DR-ZZB12- 60C	5.2	10-500	60	0.1-1.2	5.5-45	125
DR-ZZB12- 80C	6.8	10-500	80	0.1-1.2	7.5-55	125
DR-ZZB12- 120C	9.8	10-400	120	0.1-1.2	11-90	150
DR-ZZB12-150 C	12.8	10-400	150	0.1-1.2	15-160	150
DR-ZZB12-200C	16	10-300	200	0.1-1.2	18.5-185	200

Detailed Images:


Company Introduction:

We are the main exporter and manufacturer of all kinds of food machinery and high-quality package machinery. As the top-leading corporation for the packaging and food machinery, d&r offers not only the advanced equipment with competitive and economic efficiency but also bring to the customer the whole solution method for the packaging, i. e. To provide the customer with a turn-key project. We provide the design, production, and assembly of small and medium food and beverage lines in accordance with the customer's specific demands. We are never satisfied with the present achievements. The client's need is our motive force to design and build the top quality product in China. For detailed information, you can contact our sales office/agent worldwide. We are happy to co-operate with you.
