• Model NO.：YZYX140GX
• Condition：New
• Customized：Non-Customized
• Dimension(L*W*H)：2250*720*1550mm
• Daily Processing Capacity：10ton,24hours
• Weight：1320kgs
• Power：18.5-22kw
• Transport Package：Fumigated Wooden Packing, or as Customers′ Request
• Specification：ISO BV SGS
• Trademark：GUANGXIN
• Origin：Sichuan, China
• HS Code：8479200
• Production Capacity：400 PCS,Month

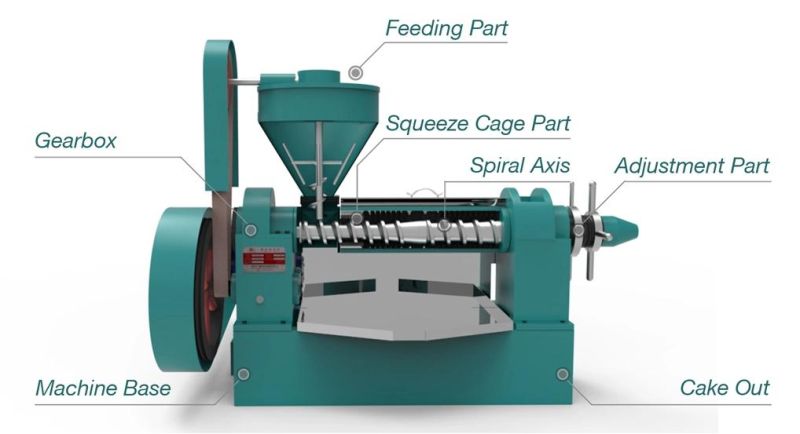

                                                            Screw Oil Press YZYX140GX Technical CharacteristicsProcessing Capacity(t/24h)9-11Measurement(LWH mm)2010*750*1430Motor Power(kw)18.5 or 22Oil Content of Dry Cake(%)7.6Weight(kg)806Spiral Axes Rotate Speed32-40 Internal structure

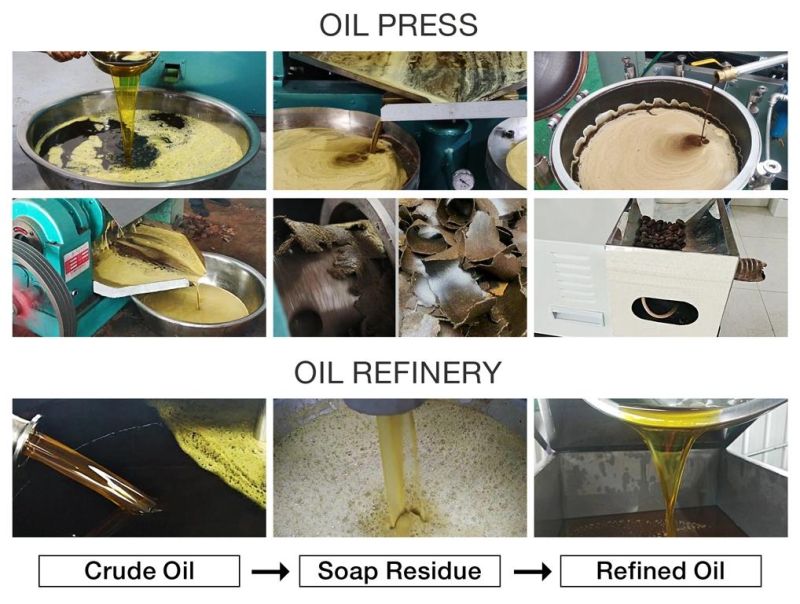

Oil production process

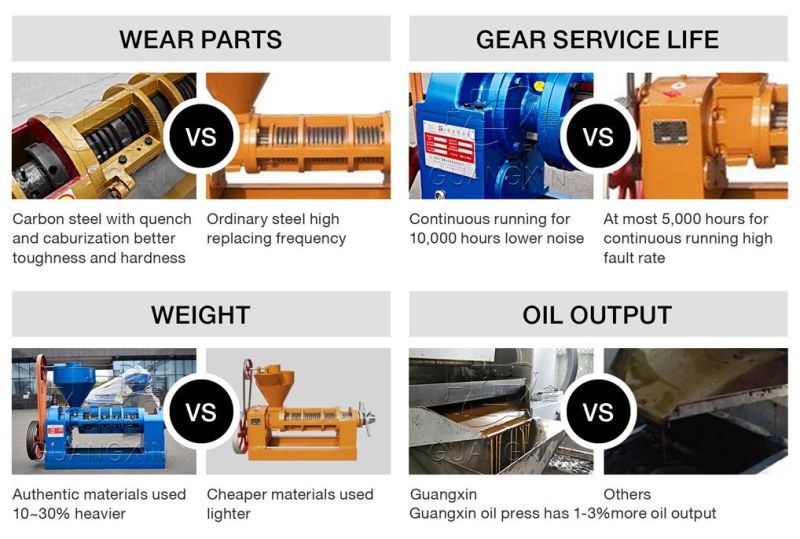

Main advantages
 A. The YZYX140GX is a big spiral plant oil expeller made by our company-Mianyang Guangxin Machinery of Grain & Oil Processing Co., Ltd. The day out put is quite big, approx. 10t/24hours.
 (a)"GX" means this machine is equipped with big deceleration box, which works stably and has a long durability.(b) The gears enquipped on this machine is bevelled, so the relative friction is smaller and durability is better.

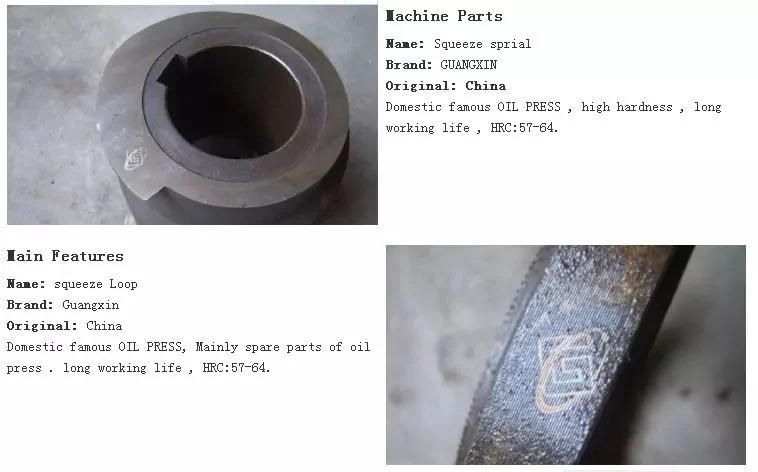

 B. Adopting screw squeezing structure, the squeezing power is strong and the residue oil of cake is ≤ 8, lower than other types of oil press. Besides, the squeeze spirals and squeeze loops can be disassembled. When they are out of service period, users only need to replace the press loops and spirals, no need to displace the whole machine.

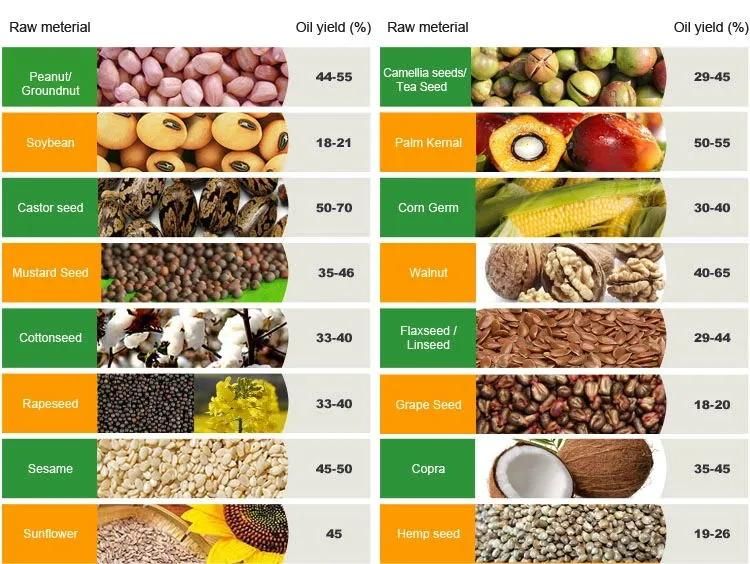

 Applicable oil plants seeds
 2 step squeezing model, suitable for make oil from sunflower seeds, rapeseeds. Soybean, sesame seeds, flaxseed, palm kernel, coconut, camellia seeds and peanut, etc.

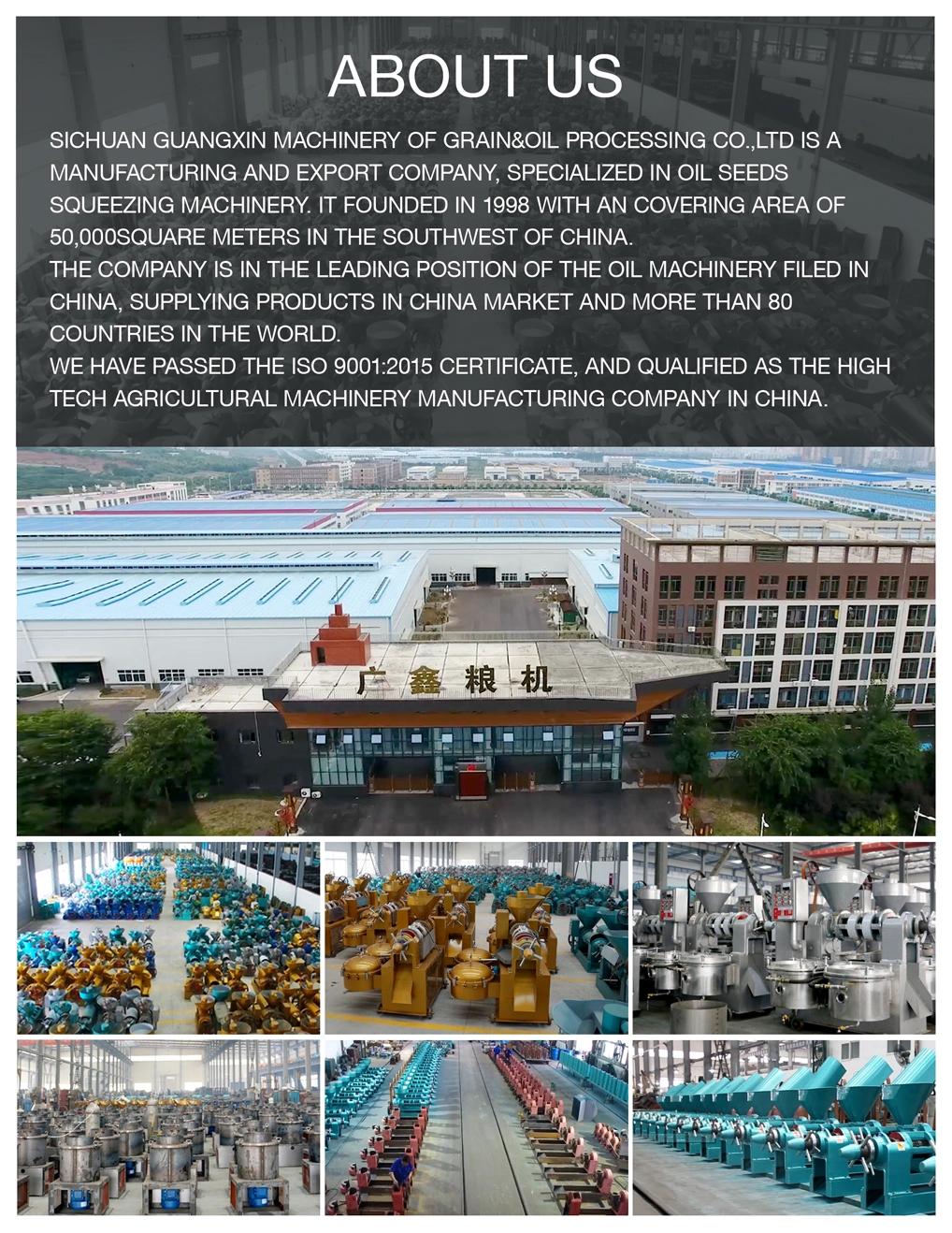

Our company

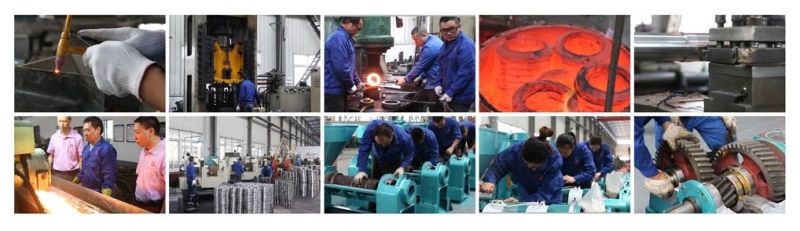

Production process




Quality Standard
 1. Conform to JB/T9793· 1-1999 of the People's Republic of China.2. ISO9001: 2015 and BV certified.
 Exhibition over the world


  After-Sale Service
 1. We supply spare all year around.2. We supply technical solutions and helps for buyers at any time.3. We have professional team, help uses design and plan the oil refinery's construction.
Packaging & Delivery
 1. Packaging Detail: Fumigated wooden box packing or as per customer's requests.2. Delivery Detail: 10-20 day after order confirm
