• Model NO.：YLWD-600
• Power：16kw
• Steam Pressure：0.6-0.8MPa
• Transport Package：Wooden Case
• Specification：2150X1450X3100mm
• Trademark：Youlu
• Origin：China
• HS Code：8438900000
• Production Capacity：450kg,H

Basic Info.

Model NO. YLWD-600 Power 16kw Steam Pressure 0.6-0.8MPa Transport Package Wooden Case Specification 2150X1450X3100mm Trademark Youlu Origin China HS Code 8438900000 Production Capacity 450kg/H

Product Description

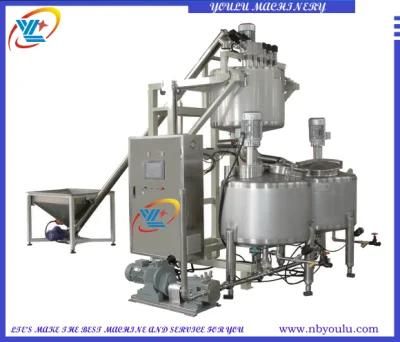

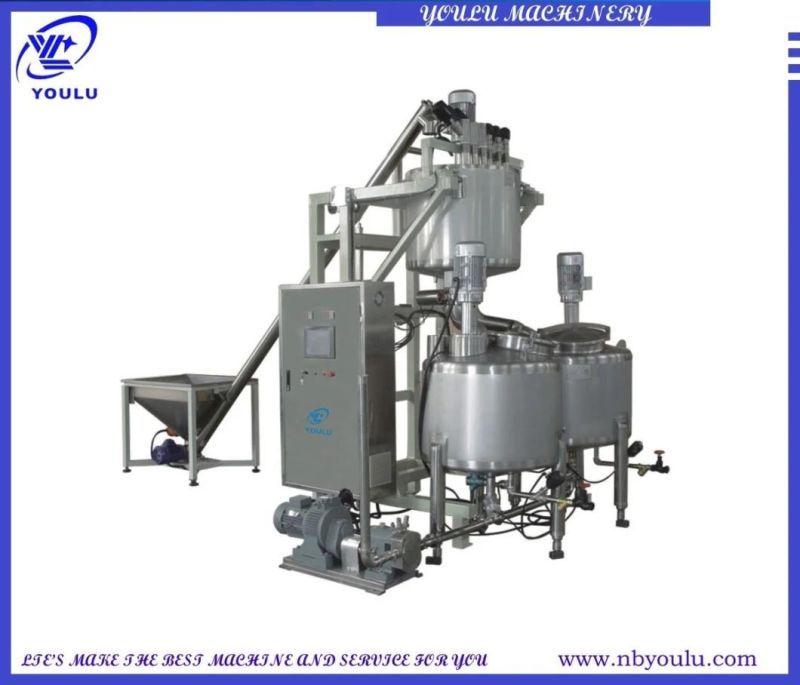

The Auto-Feeding Dissolving System Combined By Auto-Feeder And Dissolving1.Automatic Material Feeding System
A. Feeding material connecting system: sugar screw conveyor,for liquid material,on the top of the tank fixed with control valve and fixing frame.glucose connector diameter 50mm,other pipe and valve(diameter:30mm set ,diameter 20mm 2set)
B. Mixing tank: with hot water jacket tank(φ700mmX650mm),thickness of shell is 2.5mm. With one set mixing system rotary speed at 1440rpm and unloading valve(φ100mm)and pipe(φ100mm)
C. Weighing System: machine frame and load cell and so on.
D. Pneumatic System: pneumatic valves and pneumatic controlling system.
2.Dissolving System
A Dissolving system: Dissolving tank (φ800mmX800mm,2.5mm thickness) ,mixer(1440rpm). unloading valve (φ65mm) and manually 3-way valve (φ65mm) ,with top and bottom level senor
B. Heating system: disconnecting valve,pressure regulator valve ,pneumatic disconnecting valve,heating coil(φ25mm pipe),bleeder
C. Temperature controlling system: temperature sensor and temperature controlling unit.
D.Pneumatic system: pneumatic valve and pneumatic control system.
E.Impeller pump: with inverter controlling speed.


Model	AWD-600	AWD-1200
Power	16kw	20kw
Capacity	600kg/h	1200kg/h
Air Consumption	0.5m3/h	0.5m3/h
Steam consumption	450kg/h	450kg/h
Steam Pressure	0.6-0.8Mpa	0.6-0.8Mpa
Dimension	2150x1450x3100mm	2150x1850x3100
Weight	1100kg	1300kg
