Soft Serve Ice Cream Machine

Ningbo Sicen Refrigeration Equipment Co., Ltd.
  • Certification：CE, ISO9001
  • Power Source：Electric
  • Process：Frozen and Chilled
  • Automatic Grade：Semi-Automatic
  • Application：Ice Cream
  • Customized：Non-Customized

Base Info

  • Model NO.：6220
  • Model：6220
  • Power (Kw)：1.4 Kw
  • Voltage (V)：210-230V
  • Dimension (Net)：620mmx420mmx732mm
  • Dimension (Packing)：710mmx515mmx850mm
  • N.W. (Kg)：75 Kg
  • G.W. (Kg)：85 Kg
  • Transport Package：Carton with Pallet
  • Specification：CE
  • Trademark：SPACE
  • Origin：Ningbo, China
  • HS Code：8418699020
  • Production Capacity：10000 Units,Year

Description

Basic Info.

Model NO. 6220 Model 6220 Power (Kw) 1.4 Kw Voltage (V) 210-230V Dimension (Net) 620mmx420mmx732mm Dimension (Packing) 710mmx515mmx850mm N.W. (Kg) 75 Kg G.W. (Kg) 85 Kg Transport Package Carton with Pallet Specification CE Trademark SPACE Origin Ningbo, China HS Code 8418699020 Production Capacity 10000 Units/Year

Product Description

Professional manufacturer of soft serve ice cream machines.

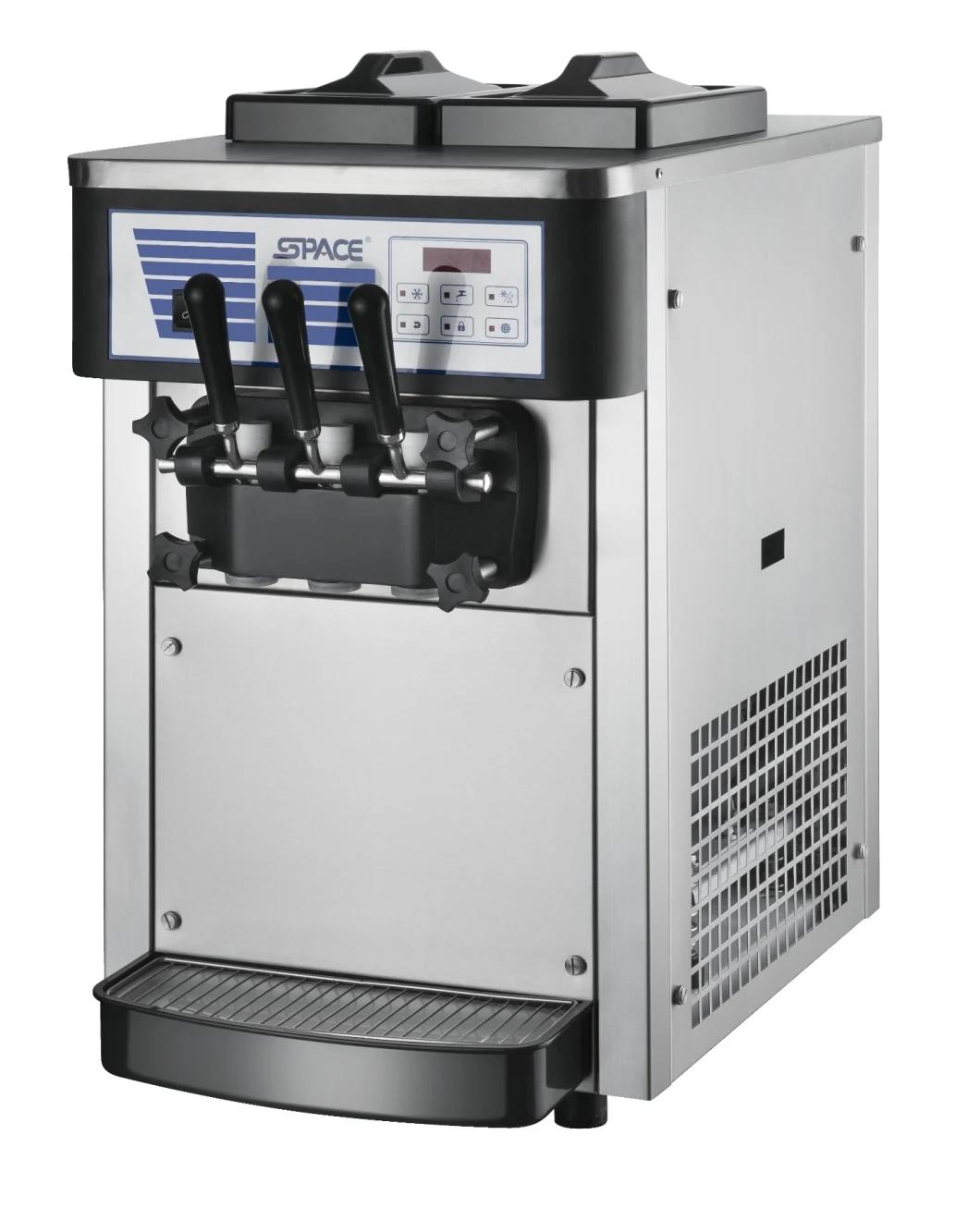

Soft Serve Ice Cream Machine




Frozen yogurt machine 6220, Table model, Gravity Feed

FEATURE
Offer all the popular soft serve variations from low or non-fat ice creams to custards, yogurt and sorbet.

FREEZING CYLINDER
Two, 1.0x2 Liter

MIX HOPPER
Two, 4.0x2 Liter
Separate hopper refrigeration(pre-cooling)maintains mix below 4.4º C.

MICROPROCESSOR CONTROLS
Microprocessor regulates refrigeration by measuring product viscosity to maintain consistent quality.

MIX LOW LIGHT
The mix low light turns "ON" to alert operator to add mix, preventing cylinder over freezing.

STANDBY
Maintains product temperature in the mix hoppers and freezing cylinders below 4.4 º C during long no-use periods.

COUNTER
Records number of dispenses per day and total number of dispenses.

AGITATOR IN THE HOPPER
Mixture has better liquidity, the temperature of the mix to be more uniform.

OUTPUT
20 Liter/Hour
(At 4 º C Liquid&24º C Ambient )

ELECTRICAL REQUIREMENTS
One dedicated electrical connection is required. Make voltage steady when machine is ON.

MAIN MOTOR
One, 1.0HP

REFRIGERATION SYSTEM
One compressor: 3100 BTU/hr. R404A
Separate hopper refrigeration(Pre-cooling): One main compressor: 400BTU/hr. R134A
(BTU may vary depending on compressor used. )

AIR COOLED
Minimum clearance of 152mm on both sides to achieve optimum performance.
