• Model NO.：TSGH-24
• Applications：Fruits,Vegetables,Fish
• Drying Plates：24 Pieces
• Drying Time：1-24hours
• Transport Package：Wrapped in Film, Wooden Case
• Specification：1400*1200*2500mm
• Trademark：AMBITIOUS
• Origin：China
• HS Code：8438600000
• Production Capacity：200pieces,Year

Basic Info.

Model NO. TSGH-24 Applications Fruits,Vegetables,Fish Drying Plates 24 Pieces Drying Time 1-24hours Transport Package Wrapped in Film, Wooden Case Specification 1400*1200*2500mm Trademark AMBITIOUS Origin China HS Code 8438600000 Production Capacity 200pieces/Year

Product Description

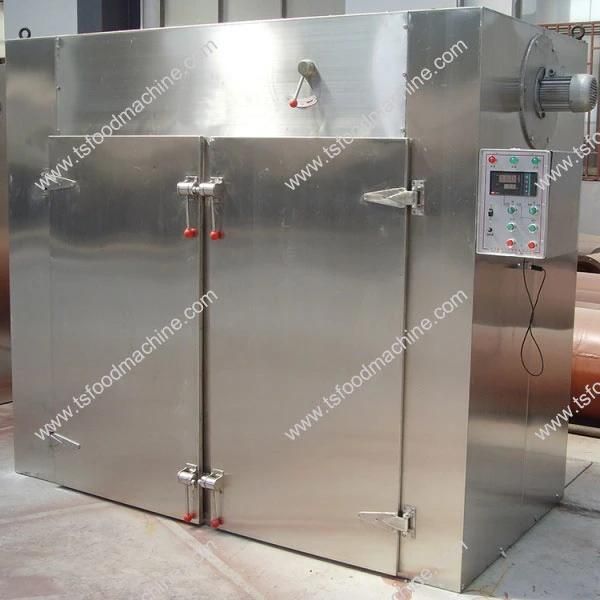

1.- Cabinet Food Dehydrator Dried Apricot Fruit Drying Machine

Features and Advantages of hot drying machine:

The hot drying machine works with the automatic control system which can control the drying temperature and time according to the different materials.

The hot drying machine has the functions of heat recovery and dehumidification at the same time, which can reduce energy consumption and have high thermal efficiency.

It is easy to be installed and operated, so that can save space.

The type and sizes can be cusotmized according to the requirements.

It is suitable for drying vegetables,fruits,meat,scented tea,spices and nuts.It has the characteristics of high efficiency and green environmental protection.

It can ensure the drying quality of each stage,effectively ensure the nutritional composition or medicinal value of the whole material after drying,and keep the shape,color and fragrance of the material without changing.

Precision and intelligence: It is equipped with intelligent PLC microcomputer control system, it can accurately control the temperature, humidity, air volume, duration, mode, stage and other parameters during drying.

It can process 10 different kinfs of materials at the same time.

Exclusive design: the structure, the layer frame of the cart and the mesh size of the tray are all redesigned based on the drying cases of tens of thousands of customers,very suitable for matching with the drying room to ensure the drying effect.







2.-Applications of Cabinet Dehydrator Apricot Drying Machine


Fruits:Apricot,lemon,sliced apple,banana,orange,mango,peach,and many other fruits.
and whole body of blueberry,strawberry,banana,longan,pitaya,hawthorn, blackberry,kiwifruit,dates,
peanut,etc.

Vegetables: Pepper,tomato,and also for green onions,carrots,cucumbers,beans,ginger,onions,garlic and so on.






3.-Techinical Index of Cabinet Dehydrator Apricot Drying Machine


Machine Name	Hot air drying machine
Model	TSGH-24
Outside Size	1400*1200*2500mm
Plate Size	640*460*30mm
Power	13KW
Voltage	380V/50HZ
Quantity of Drying Plates	24 pieces
Temperature Controlling Range	Under 90ºC
Drying Time	1-24hrs,up to the products



4.-Packaging and Delivery

Packaging	With Wrapping film and in wooden case, or according to the customer needs.
Delivery Time	15-20 Working days.
Shipping Type	By sea, railway, etc.

5. -Introduction of Our Company

Zhucheng Tianshun Machinery Co.,Ltd. has grown into a large, specialized food machinery manufacturing enterprise which integrates R & D and manufacturing. Currently has more than 100 employees, the division of labor is professionalization and specific, there are technical department, after-sales service department, domestic marketing department, international business department, etc. The company has all kinds of welding equipment, machining equipment to meet the needs of different customers.


Our Main Products:
Vegetables&fruits cutting machines,
Peeling&washing machines,
Frying equipment,
Air drying machinery,
Blanching&cooking machine,
Food flavoring machine,
Fruit drying machine,
Vacuum packing machine,
Donuts machine,
Freeze drying machine,
Potato chips production line,french fries production line,plantain chips production line.

All of them can be designed semi-automatic and full automatic, and widely used for processing varieties of vegetable, fruits, fish, seafood, etc. Some of them have pass the CE certificate. All of them could be customized, and we also provide and design individual machines for customers.
