• Model NO.：JBJ
• Material：SS304,316
• Power：380V
• Capacity：100L-100000L
• Warranty：1year
• Transport Package：Plywood Case
• Trademark：yuxiang
• Origin：China
• HS Code：8479820090
• Production Capacity：60sets,Month

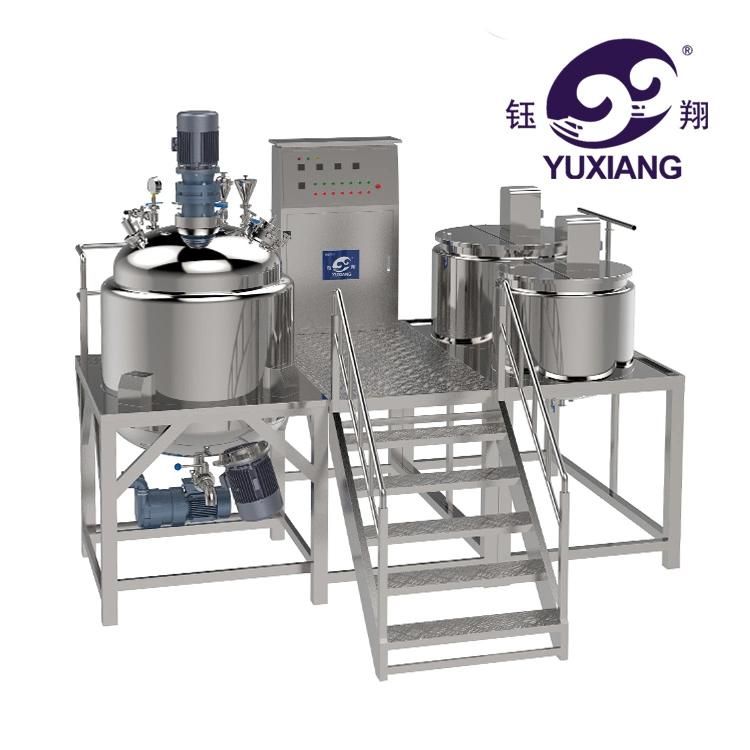

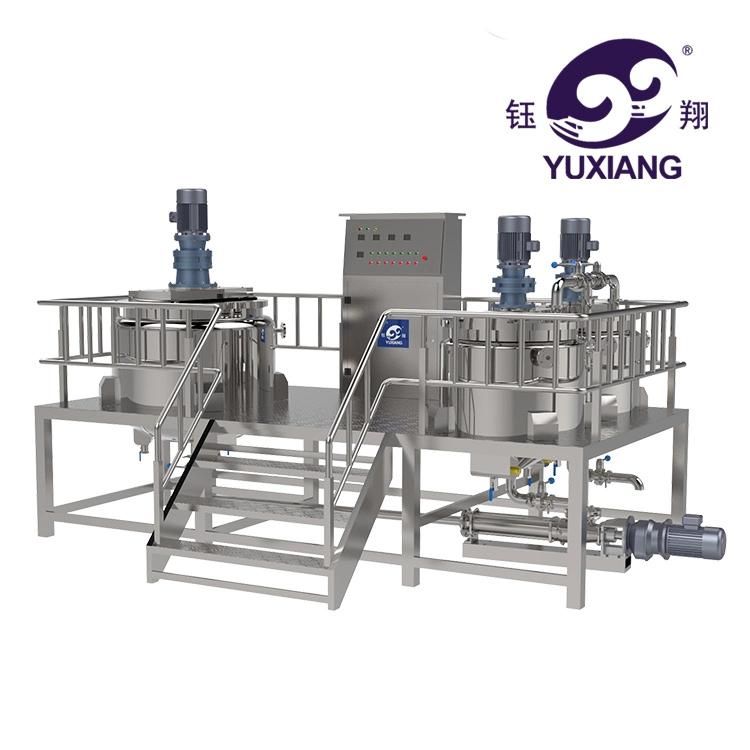

Model
CapacityHomogenizer motorStir MotorDimension
Total Power(Mpa)
Limir vacuum
 KWr/minKWr/min
Length(mm)
Width(mm)Height(mm)Steam heating
Electric hratingJBJ100100L2.8-41440/28801.50-63275027002250/31001332-0.09JBJ200200L6.5-81440/28802.20-63310030002500/34501545-0.09JBJ300300L6.5-81440/28802.20-63350033502650/36001849-0.085JBJ500500L6.5-81440/288040-63385036002750/40002261-0.08JBJ10001000L9-111440/28805.50-63420038503300/48002888-0.08JBJ20002000L151440/28807.50-63485043003800/540040_-0.08



2. Parameters

(1). Mixer

Single-bladed paddle mixing and Fixed paddle 0-63RPM,power:0.75KW , speed is ajdusted by frequency controller .
(2).Homogenizer

Speed :0-3000r/min,Power:2.2KW ,speed is adjusted by frequency controller

(3).Heating and cooling

heating by electric pipe , 2 pcs 6KW heating pipe in the jacket . Cooling by water .

(4).Material

The machine is made of stainless steel . There are three layers . The inner layer is SUS304 , thickness :4 mm . The middle and out layers are made of SUS304 , thickness :3 mm .

The legs and electric case are made of SUS304 .

(5).Dimension :

1.34*0.95*2.01m-Packing  size .

(6).Discharge material from the bottom outlet ,with butterfly valve .
