High Quality Rice Grader Machine Shifter
HUNAN CHENZHOU GRAIN & OIL MACHINERY CO., LTD.- Type：Rice Mill
- Application：All
- Voltage：380V
- Appearance：Horizontal
- Press Materials：Rice
- Condition：New
Base Info
- Model NO.：MMJX160(5+1)
- Customized：Customized
- Weight：2000kg
- Power：2.2kw
- Capacity：8-10t,H
- Air Volume：900m3,H
- Transport Package：Wooden Case
- Specification：2220x2340x2290 mm
- Trademark：CLJ
- Origin：China
- HS Code：84378000
- Production Capacity：3000units,Year
Description
Characteristic:Adopt turning around the center of the screen movement type, the moving speed and the rotary turning amplitude are adjustable.
Grading layer by layer to ensure less head rice in big broken rice and none in small broken rice.
Airtight sieve body equipped with suction device, less dust.
Using u-joint to hang the main body
Equipped with additional screen to separate middle-sized chaff.

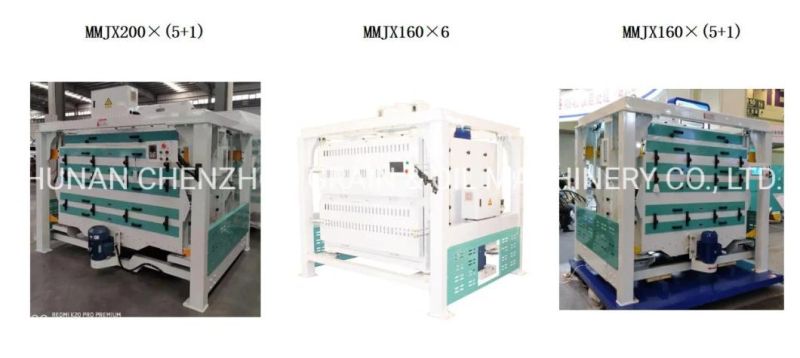

| Model number Parameter | MMJX125×4 | MMJX160×4 | MMJX160×4+1 | MMJX160×5+1 | MMJX200×(5+1) |
| output(t/h) | 3.5~4.5 | 5~6.5 | 5-6.5 | 8-10 | 10~13 |
| power(kw) | 1.5 | 1.5 | 1.5 | 2.2 | 3 |
| rotate speed(r/min) | 160 | 160 | 160-200 | 160-200 | Controlled by frequency converter |
| Slant angle(°) | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 |
| Air volume(m/min) | 16 | 10×2 | 10×2 | 16 | 20×2 |
| weight(kg) | 1350 | 1500 | 1650 | 1900 | 2600 |
| Broken in fine rice(%) | <5 | <5 | <5 | <5 | <5 |
| Fine in big broken(%) | <5 | <5 | <5 | <5 | <5 |
| Fine in small broken(%) | 0 | 0 | 0 | 0 | 0 |
