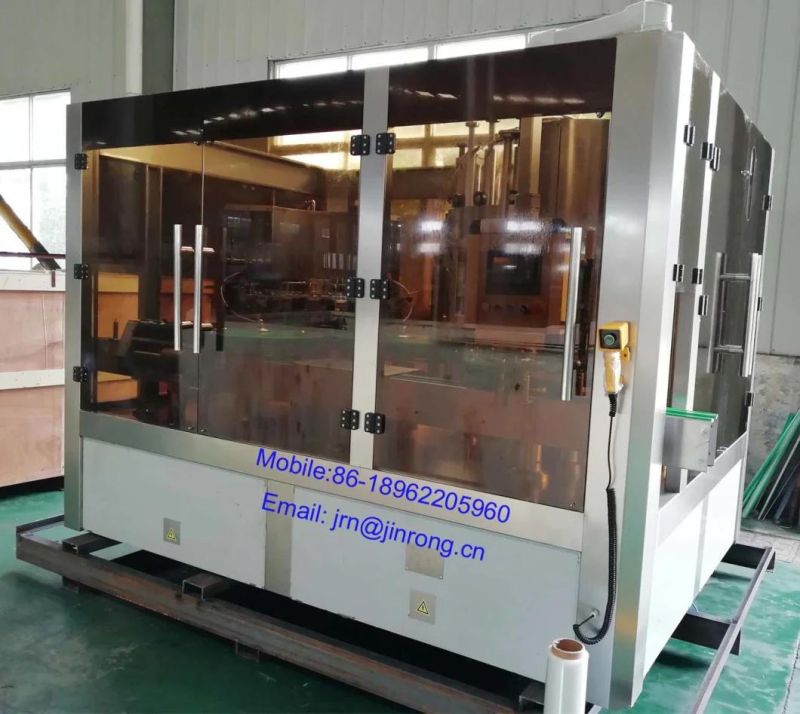

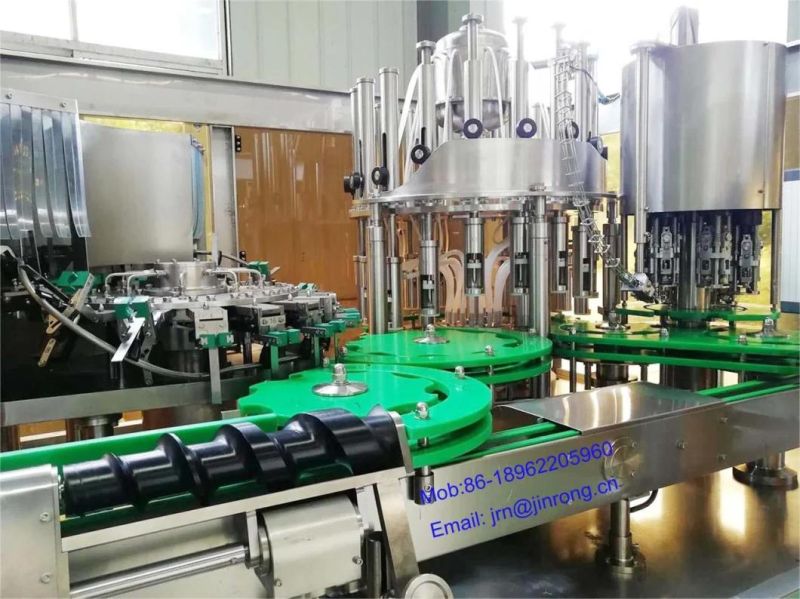

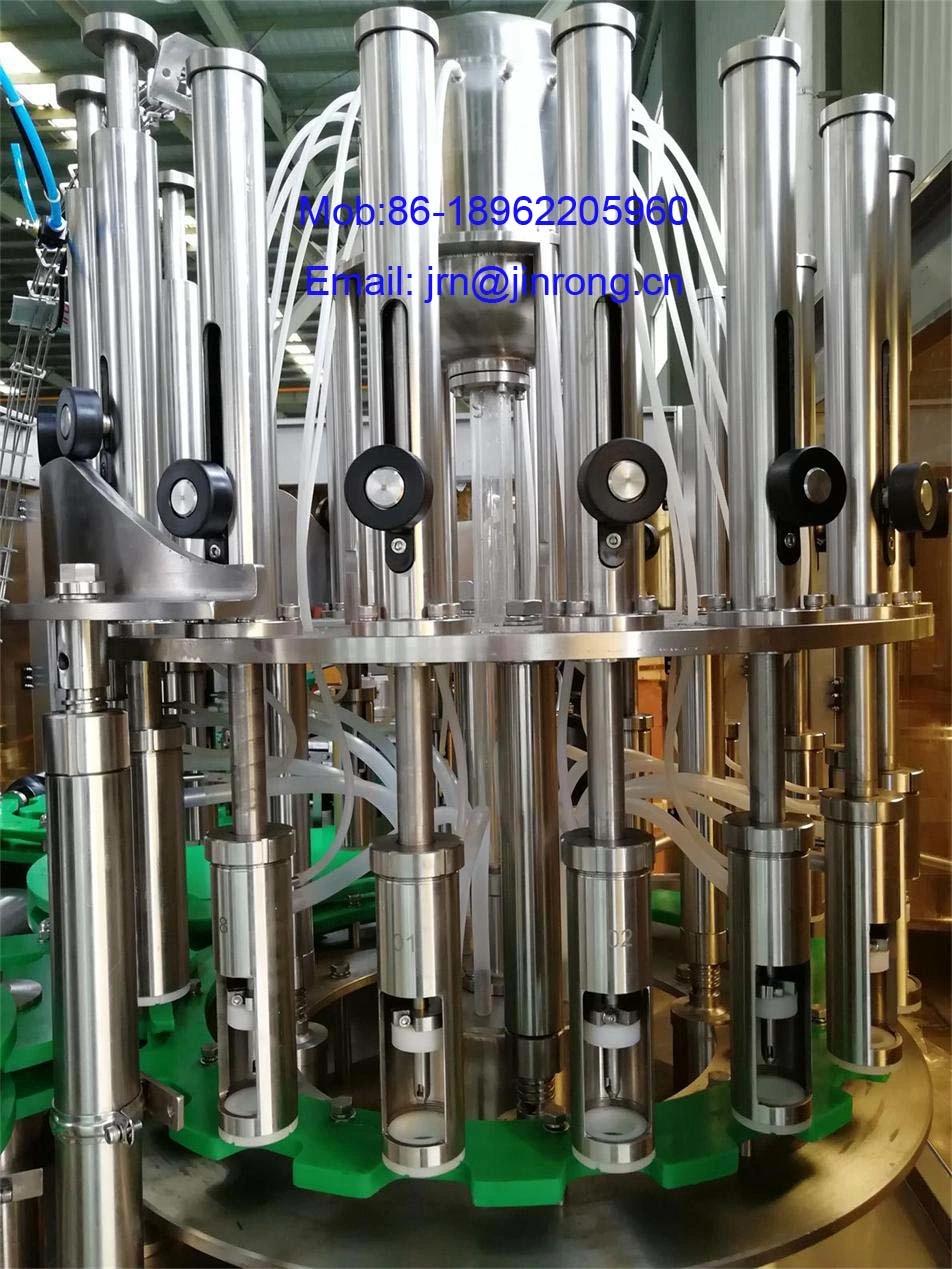

Automatic Glass Bottle Alcohol Vinegar Filling Machine
Jiangsu Jinrong Machinery Co., Ltd.- Condition：New
- Customized：Customized
- Voltage：Customized
- Composition：Filling Machine
- Processing Material：Alcohol, Vinegar, Soy Sauce
- Process：Filling Machine
Base Info
- Model NO.：JR18-18-6, 24-24-8
- Machine Function：Washing, Filling, Capping 3 in 1 Machine
- Bottle Material：Glass Bottle
- Cap Type：Aluminium Cap
- Filling Medium：Alcohol, Vinegar, Soy Sauce etc.
- Factory Level：Top 5 in China
- Transport Package：Wood Package
- Specification：500ml
- Trademark：JR MACHINE
- Origin：China
- HS Code：8422301090
- Production Capacity：3000~40000bph
Description
Basic Info.
Model NO. JR18-18-6, 24-24-8 Machine Function Washing, Filling, Capping 3 in 1 Machine Bottle Material Glass Bottle Cap Type Aluminium Cap Filling Medium Alcohol, Vinegar, Soy Sauce etc. Factory Level Top 5 in China Transport Package Wood Package Specification 500ml Trademark JR MACHINE Origin China HS Code 8422301090 Production Capacity 3000~40000bphProduct Description
Fully Automatic Glass bottle Aluminium cap alcohol filling machine30 years focus makes best machines !

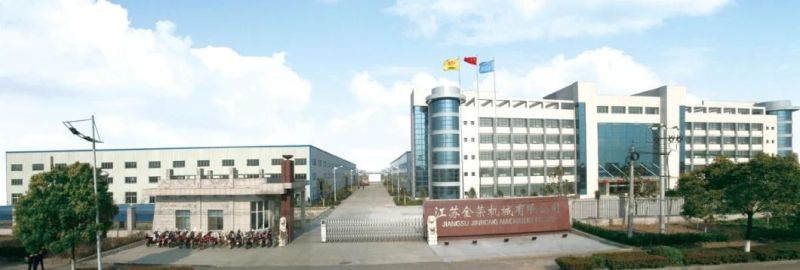

Factory established : Since 1987
Factory scale: 150,000 square meters
Employee quantity: 260
Machine information:
Capacity: 3000~30000bph
Bottle size: 0.2~2L
Bottle material: glass bottle
Cap type: aluminium cap
filling medium: alcohol, vinegar, soy sauce etc.
Different models with different capacities as following
| Model | Stable Capacity | Overall dimenstion | Power | Weight |
| JR18-18-6DB | 3000bph | 2800*2050*2200 | 4kw | 5500kg |
| JR24-24-8DB | 6000bph | 3100*2250*2800 | 4kw | 7000kg |
| JR32-32-10DB | 8000BPH | 3600*2900*2900 | 5.5kw | 8500kg |
| JR40-40-10DB | 10000BPH | 4250*3250*2900 | 7.5kw | 1000kg |
| JR50-50-12DB | 13000BPH | 5200*3700*3000 | 11kw | 14000kg |
| JR60-60-15DB | 18000BPH | 6300*4400*3000 | 11kw | 17000kg |
| JR72-72-16DB | 25000BPH | 6900*4950*3000 | 11kw | 18000kg |
| JR80-80-18DB | 30000BPH | 7600*5100*3000 | 15kw | 20000kg |
Electrical and pneumatic parts
| Items | Products Name | Brand |
| 1 | Frequency converter | Siemens |
| 2 | PLC | Siemens |
| 3 | Circuit breaker | Siemens |
| 4 | Circuit contactor | Siemens |
| 5 | Thermal relay | Siemens |
| 6 | Proximity switch | Omron |
| 7 | Fiber switch | Omron |
| 8 | Touch screen: | Kinco/Siemens |
| 9 | Pneumatic components | AIRTAC/FESTO |
| 10 | Stainless Steel | POSCO |
Company Main Products:
1.mineral water/pure water filling production line
2.carbonated drinks filling production line
3.juice(with/without pulp) filling production line
4.Bottle blowing machine
5.water treatment, packaging machinery etc.
30 Years Big factory, Quality Assured !
Contact: Horry
Mobile: 86-18962205960
