2021 Popular Manufacturer Fresh Sugar Cane Juicer Extractor Machine
Zhengzhou AG Machinery & Equipment Co., Ltd.- Warranty：1 Year
- Type：Juicer Extractor
- Voltage：380V
- Power：7.5kw
- Customized：Non-Customized
- Product Name：Fruit Extractor
Base Info
- Model NO.：AG-1.5 T
- Processing Types：Fruit and Vegetables
- Material：304 Stainless Steel
- Package：Wooden Case
- Advantage：Long Life Working
- Application：Beverage Fruit Store
- Function：High Efficiency Juicer Squeezer
- Feature：Anti-Rust Head
- Usage：Extracting Vegetables and Fruits
- Key 1：Screw Press Juicer
- Key 2：Small Juice Production Machine
- Key 3：Tamarind Paste Making Machine
- Key 4：Watermelon Juicer Machine
- Key 5：Fresh Orange Juicer
- Transport Package：Wooden Case
- Specification：AG-1.5 T
- Trademark：AG Mach
- Origin：China
- Production Capacity：1.5 T,H
Description
Equipment structure
1. Structure: It consists of front support, feed hopper, crushing, spiral, filter net, juice extractor, rear support, slag sump, etc.
2. The left end of the spiral main shaft is supported in the rolling bearing housing, and the right end is supported by the hand wheel bearing.
3. In the seat, the motor is driven by a pair of V-belt drive screws.

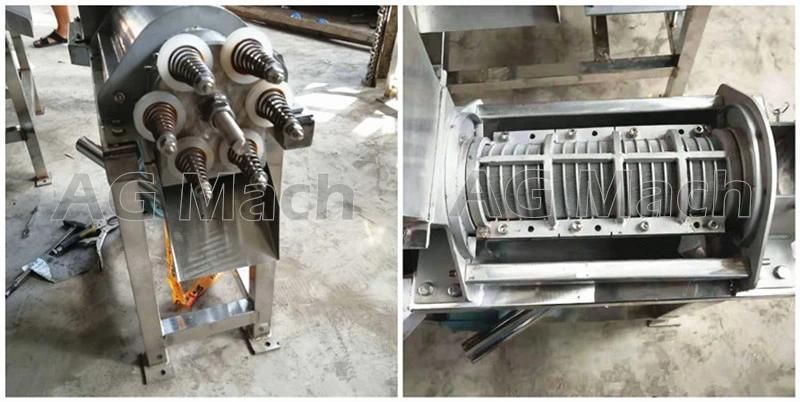

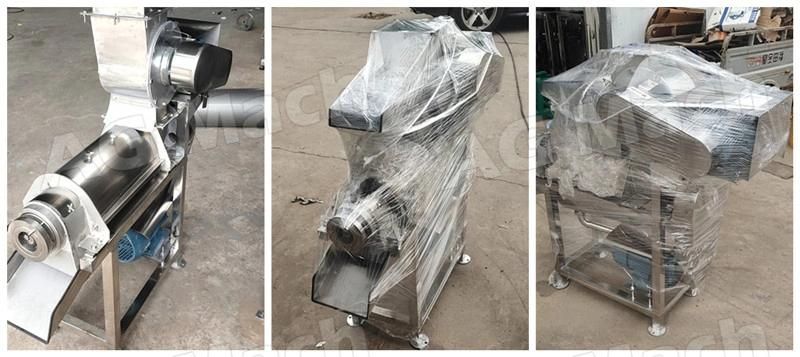

Detailed picture

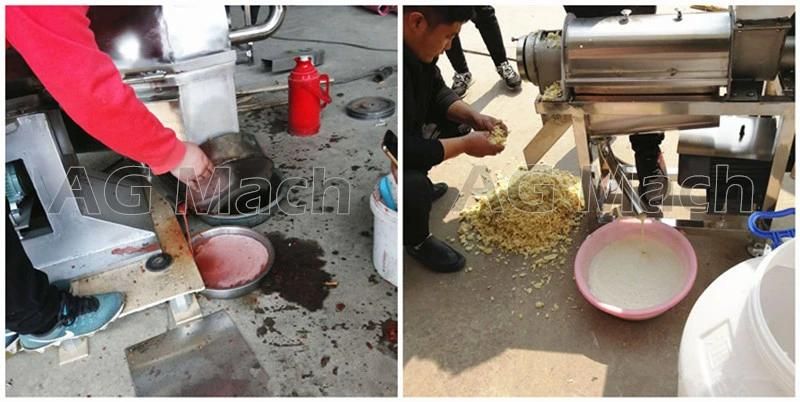

Working principles of fruit crusher and juicer
1.The main commercial juicer of this aquipment is spiral, along the material of slag exit to increase gradually and pitch diameter and gradually reduce, when the material is spiral advancing, for a decrease in the size of the spiral cavity, form to material squeezed. Spiral spindle rotation direction from hopper to slag slot, dockwise direction.
2.Raw material to join into hopper,in advance of the spiral down under pressure, the aqueeze juice through the screen pack into the bottom of the filled the juice, and waste, through the spiral and pressure regulating cone shaped parts formed between the circular gap eduction, pressure regulation head along the axial movement can adjust the size of the space.

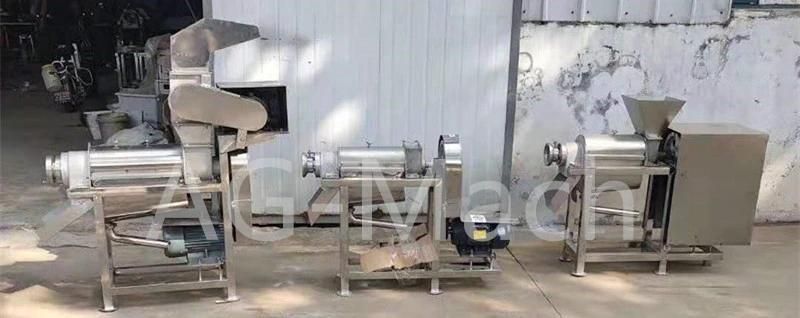

Finished picture

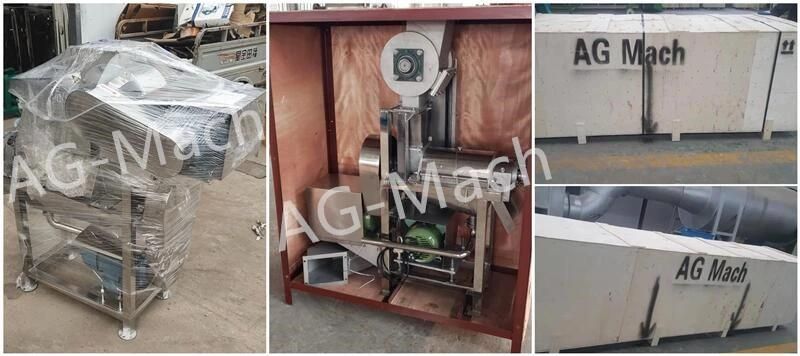

Packing and delivery
