• Model NO.：DCM8435 DCM8450 DCM1070 DCM8465
• Product Name：Stainless Steel Rasper
• Line：Sweet Potato Starch Production Line
• Service：Overseas Installation
• Training：Yes
• Useful Life：20 Years
• Dimension：3000X1590X1500 mm
• Weight：1200 Kg
• Drum Diameter：1905 mm
• Power：250 Kw
• Maintain：Yes
• Capacity：20-45 T,H
• Warranty：1 Year
• Transport Package：Wooden Case
• Specification：stainless steel
• Trademark：JINGHUA
• Origin：Zhengzhou City, China
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. DCM8435 DCM8450 DCM1070 DCM8465 Product Name Stainless Steel Rasper Line Sweet Potato Starch Production Line Service Overseas Installation Training Yes Useful Life 20 Years Dimension 3000X1590X1500 mm Weight 1200 Kg Drum Diameter 1905 mm Power 250 Kw Maintain Yes Capacity 20-45 T/H Warranty 1 Year Transport Package Wooden Case Specification stainless steel Trademark JINGHUA Origin Zhengzhou City, China Production Capacity 20 Sets/Month

Product Description

hot selling rasper sweet potato starch grinder milling making machines starch processing plant

1.Description of rasper
Sweet potato starch is mainly stored in the fleshy part of the root, the raw material particles are relatively large, the internal organization is not easy to destroy, the use of repeated file grinding, fully destroy the potato block structure, can make the small starch particles can be successfully free from the root, improve the extraction rate of starch.

Structure Introduction

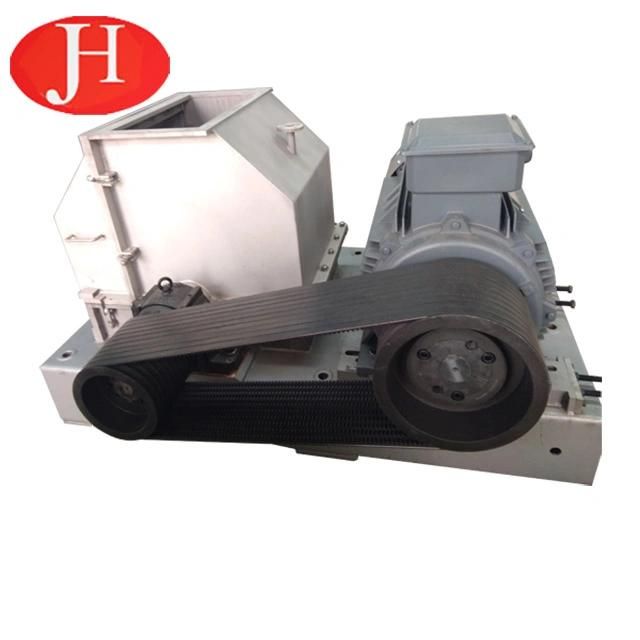

Complete machine consists of rotor, rasping blade, engine base, upper cover, side cover, bearing base, gearing, motor, etc.
1. Engine base props up all components, which rotor and bearings are all fixed on.

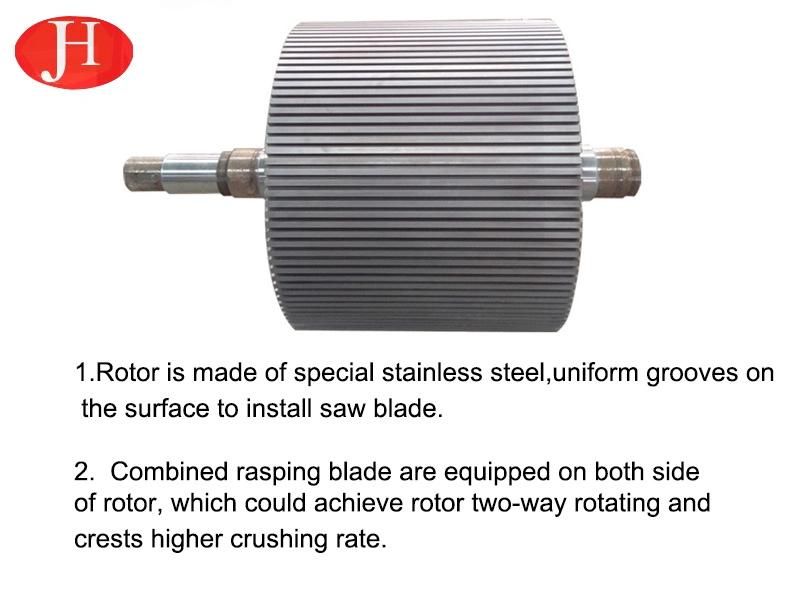

2. Rotor is made of special stainless steel, uniform grooves on the surface to install saw blade.

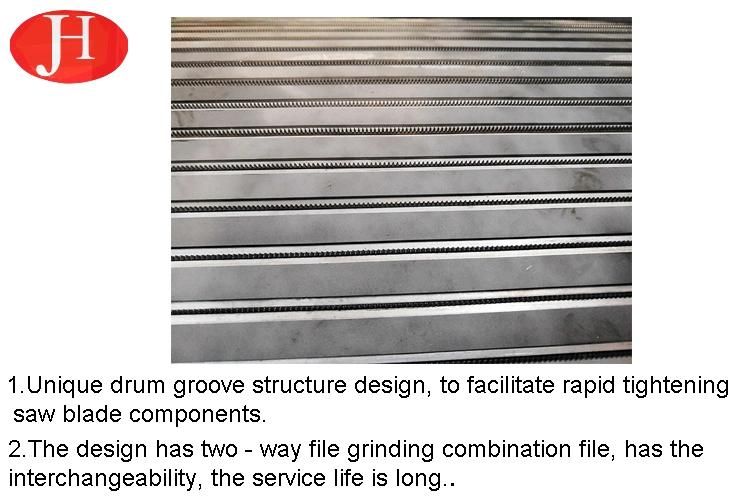

3. Saw blade is comprised of 2 stainless-steel layer with locating pin and a saw blade.
4. Combined rasping blade are equipped on both side of rotor, which could achieve rotor two-way rotating and crests higher crushing rate.
5. A sieve is equipped between rasping blades, which is tensioned by two sets tensioning instruments.
6. For easy operation, upper shell divides into two parts, upper cover and side cover.
7. Use Sweden SKF Bearings and German opittle belt.

Main technical parameters

Model	DCM8435	DCM8450	DCM8465	DCM1070
Main shaft rotating speed(r/min)	2100	2100	2100	1470
Drum diameter (mm)	Φ840	Φ840	Φ840	Φ1100
Drum width (mm)	350	500	650	700
Power (Kw)	110	160	200	250
Capacity (t/h)	20-23	30-33	35-40	40-45
Dimension(mm)	2170x1260x1220	2170x1385x1250	2170x1650x1380	3000x1590x1500

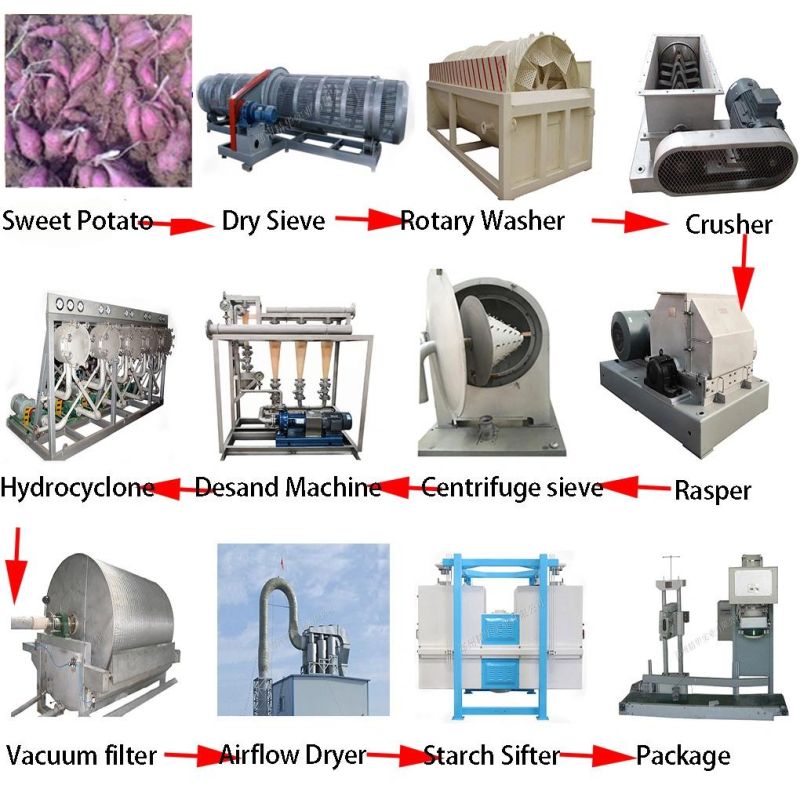

There are four steps to making starch
1.Cleaning:To remove the stone sand and from the raw material.
2.Crushing :To destroys the fiber structure and makes the starch particles free.
3.Separator:To removing sand ,mud from starch slurry, degreasing, microslag separation, protein separation, washing and concentration of all kinds of starch and modified starch emulsion.
4.Drying and Packing:To dehydrator the wet starch, sifter and packaged.

2.Why Choose Us
On the afternoon of June 6th, One Belt And One Road Cambodian delegation came to visit zhengzhou jinghua industrial co., LTD. Professor wang yanbo, chairman of zhengzhou jinghua company and other relevant personnel introduced to the delegation the achievements made by jinghua company over the years, the production technology of products and the production process of starch. The delegation visited the company's office building, production workshop and finished product warehouse, showing the delegation the company's production and research capabilities.


Jinghua company is a specialized engineering technology company specializing in various starch engineering design, equipment manufacturing, engineering installation and debugging, technical personnel training and other work. Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services overseas. Our company has undertaken national and provincial scientific research projects.,with more than 30 invention patents, various honor certificate more than 20.The chairman of the board is professor wang yanbo, who is mainly engaged in theoretical research on the transformation and utilization of grain resources, teaching, scientific research and engineering design of starch and its deep processing direction, and research and development of modern equipment. He has published 7 scientific works, 6 national standards and 30 academic papers.

Our Factory

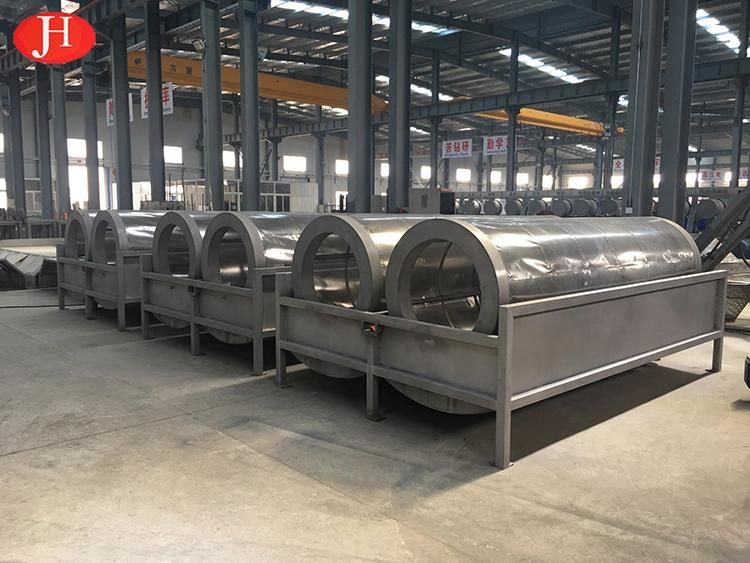

Our Workshop


Awarded the title of Advanced & High Technology Enterprise by Henan Science & Technology Department. Jinghua is the Vice president member of Sweet Potato Starch Professional Committee of China Starch Industry
Association Units, the member of Potato Starch Professional Committee and the vice president member of China Food and Packaging Machinery Industry Association and Potato Food Processing Machinery Professional Committee Unit. Awarded the "ten years brilliant" honorary certificate issued by China international potato fair.


3.Our Service
Pre-sale service
1.Accept customer consultation and customize products according to customer requirements.
2.Provide customers with product process, equipment parameters and processes, and train personnel according to customer requirements.

Sale service
1.The company sent technical personnel to the scen of the on-the -spot guidance equipment installation,debugging and training operators.
2.If there is any problem during the installation, please contact the responsible person in time. We will solve the problem in time to ensure the installation progress.

After-sale service
1.Provide telephone and video support. If the customer has any problems or abnormal devices in use, you can contact us by phone. We will help the customer solve the problems by phone or video.
2.If the phone or video doesn't work, the company will send technicians to the scene to fix the problem.
3.Products purchased in our company, we provide one-year warranty and lifelong maintenance service.

4.Packing & Shipping
Packing & Shipping: Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).


5.FAQ
Q1: Can you provide detailed parameters and drawings of the equipment?
A: Yes, you can contact us by email, we will provide you with the detailed parameters and drawings of the equipment.

Q2:How long is the warranty period of the equipment?
A:After the successful installation and commissioning of the equipment, there is a one-year warranty period.

Q3:What kind of after-sales service do you provide?
A:Provide after-sales service for customers through telephone, video guidance, on-site maintenance, etc.

Q4: Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.

Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;

Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.

Zhengzhou Jinghua Industry Co.,Ltd.
Add:Guanggu Road, Xingyang City,Henan Province,China
