• Model NO.：AW6Y-58C
• Condition：New
• Customized：Customized
• Power：Electric Motor
• Output：100~300kgs Per Hour
• Raw Material：Oily Material, Peanut, Seasame, Bean, Almond, etc
• Key Word 1：Oil Mill
• Key Word 2：Oil Press Machine
• Key Word 3：Oil Mill Machine
• Transport Package：Wooden Case
• Specification：Commercial or Domestic use
• Trademark：CHINA MANUFACTURER
• Origin：China
• HS Code：8474900000
• Production Capacity：200 Units Per Month

Basic Info.

Model NO. AW6Y-58C Condition New Customized Customized Power Electric Motor Output 100~300kgs Per Hour Raw Material Oily Material, Peanut, Seasame, Bean, Almond, etc Key Word 1 Oil Mill Key Word 2 Oil Press Machine Key Word 3 Oil Mill Machine Transport Package Wooden Case Specification Commercial or Domestic use Trademark CHINA MANUFACTURER Origin China HS Code 8474900000 Production Capacity 200 Units Per Month

Product Description

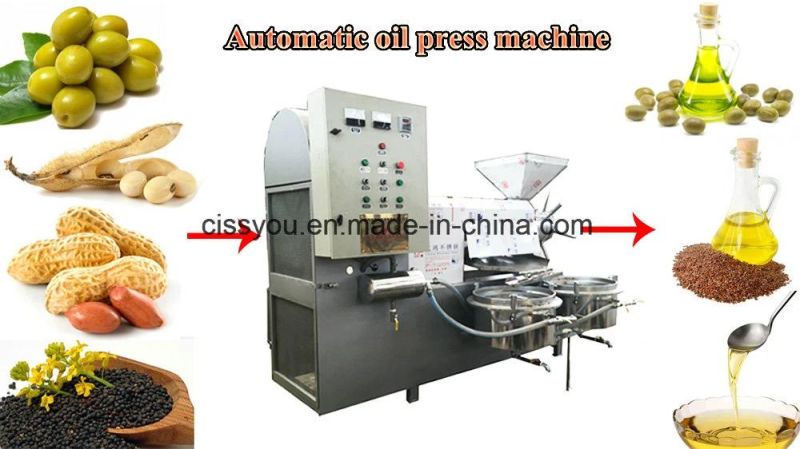

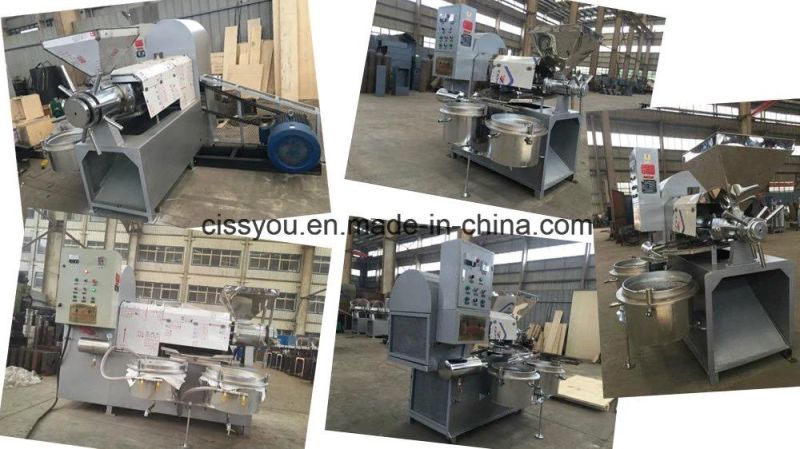

We have different kinds of oil press mill machine as follows:
1.Semi-automatic oil press expeller machine
2,Stainless steel Automatic screw oil press machine
3,Big capacity oil press machine
4,Stainless steel Hydraulic oil press machine


Description:
screw oil press is mini type equipment which is widely used in crushing vegetable oil seeds. This small oil press has advantage of simple design, easy to operate and low maintenance. At the same time it can be designed into D series and A series

(1). Application:
This equipment can be sued to extract vegetable oil by continuously pressing vegetable seeds,palm,mustard seeds,groundnut,canola,jatropha,blackseed,olive,canola,peanuts, rapeseeds, soya beans, sesame seeds, palm-seeds and seeds of sunflowers, cottonseeds, tea seeds and tung tree seeds, coconut and olives palm seeds as well as rice brans etc
(2). Principle and Structure:
Screw oil press is to separate the oil from oil bearing materials by the pressing power which comes from the change of chamber volume, drive from screw worm, resistance of curve teeth at press rings and extrusion friction between oil materials. Under the big pressure created in press chamber, the oil can be discharged from gap of press bars and oil trough of press rings. Either big scale and small scale of screw oil press, they have similar theories in screw expeller pressing. Because the screw type seed oil expeller is mainly used by extrusion theory, so it is also called as oil extruder or oil extrusion process.

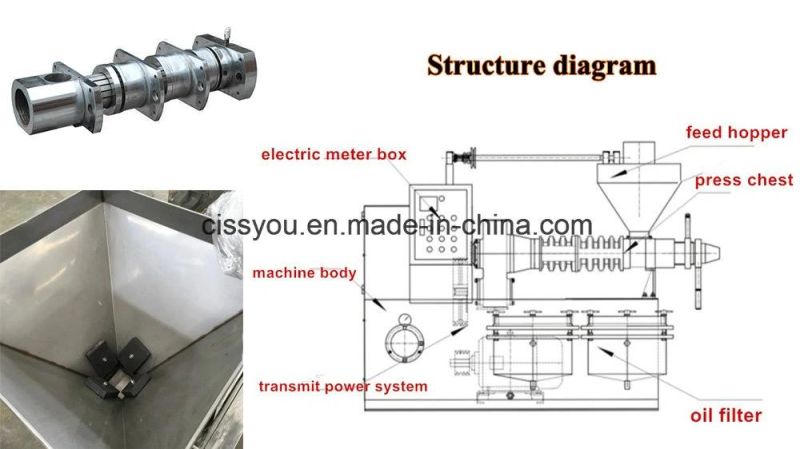

(3). The structure of Screw oil press:
Screw oil press are mainly composed by shift gears box, press cage, feeder, press screw, and machine frame. The five parts are the main structure of screw oil press. The screw type seed oil expller is crude oil processing equipment.
(4).Features of screw oil press:
* Cast iron machine base; * Special gear box structure make the rotating speed averagely; * Main parts of chamber through the processing of high-temperature tempering and low temperature quenching; * Cake thickness can be adjusted once the machine stop running; * Superior grade oil cake; * Compact structure, stable function, simple maintenance.




MODEL	WS6YL-68	WS6YL-80	WS6YL-95	WS6YL-100	WS6YL-120	WS6YL-130	WS6YL-165
Size	900*380*810	1520x450x710	1820x500x710	2100*550*770	2150*620*770	2350*730*900	2340*880*1440
Power	4kw	5.5Kw	5.5Kw	7.5kw	11 KW	15Kw	22kw
Capacity	0.8-1ton/24h	2-3ton/24h	3-5ton/24	5ton/24h	7-8 ton/24h	10-12ton/24h	20ton/24h
Weight	150kg	350kg	540kg	600kg	9000kg	1200kg	1600kg
Worker needed	2	2	2	2	2	2	2
Working hours	24	24	24	24	24	24	24

Remarks:
I.Delivery time: 15 days after receiving clients' prepayment.
II.Payment term: 50% as prepayment by T/T, the balance of 50% should be paid after the scan document of BL.
III. Valid time: This quotation is valid for one month.
IV .Quality Guarantee Terms:
Quality guarantee term is for one year. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which are caused by operation mistakes, man-made problems, etc will be responsible for clients-self.
V. Contact details:
Contact:Miss Susan
TEL:0086-371-55960109
HP:0086-15838007835
Address:No 99th,guoji road,jinshui zone,zhengzhou city.



Our feature products: hammer mills,small hammer mills,grain hammer mills,corn/maize/wheat flour hammer mills,
farm machinery,feed processing machinery,feed pellet machine,small feed mills,peanut processing machine,
corn sheller and thresher,wood processing machine,etc.

Moreover, our products have attained ISO9000 Certificate.

Taking "Sincerity makes trust, Quality wins market"as our business philosophy, Our
company always puts quality in the first place and meet our customers' needs by ensuring
high quality products and the most professional services, Therefore, our products have
been exported to almost the whole world and enjoyed a good reputation from our
customer for years.
For warranty parts and service:
**1 year warranty.
**Within warranty period, all exchanges due to defects are free (Buyer is responsible for shipping charges).
** Within warranty period, As to after-sales service, all the freight fare and accommodation will be paid by buyer.
