• Model NO.：KQ
• Name：Gjb Series Liquid Homogenizer for Milk Juice Ice
• Capacity：500L,H--10000L,H
• Material：Stainless Steel 304 ,316
• Pressure：250bar to 700bar
• Certificate：Ce
• Appication：Milk , Juice, Beverage, Butter, Honey, Cream
• Voltage ,Hz,Phase：Customized Electricity Motor
• Motor：Make It to Your Order
• Pressures：Two Stage
• Working Life：More Than 10years
• Homogenizer Spare Parts：Provide
• Motor Brand：Siemens ,ABB ,China Brand
• Cleaning：CIP Rotary Ball
• Temperature：85 Celsius
• Spare Part：Available
• Transport Package：Standard Wooden Box
• Specification：CE
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：100 Units,Month

Basic Info.

Model NO. KQ Name Gjb Series Liquid Homogenizer for Milk Juice Ice Capacity 500L/H--10000L/H Material Stainless Steel 304 /316 Pressure 250bar to 700bar Certificate Ce Appication Milk , Juice, Beverage, Butter, Honey, Cream Voltage ,Hz,Phase Customized Electricity Motor Motor Make It to Your Order Pressures Two Stage Working Life More Than 10years Homogenizer Spare Parts Provide Motor Brand Siemens /ABB /China Brand Cleaning CIP Rotary Ball Temperature 85 Celsius Spare Part Available Transport Package Standard Wooden Box Specification CE Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 100 Units/Month

Product Description

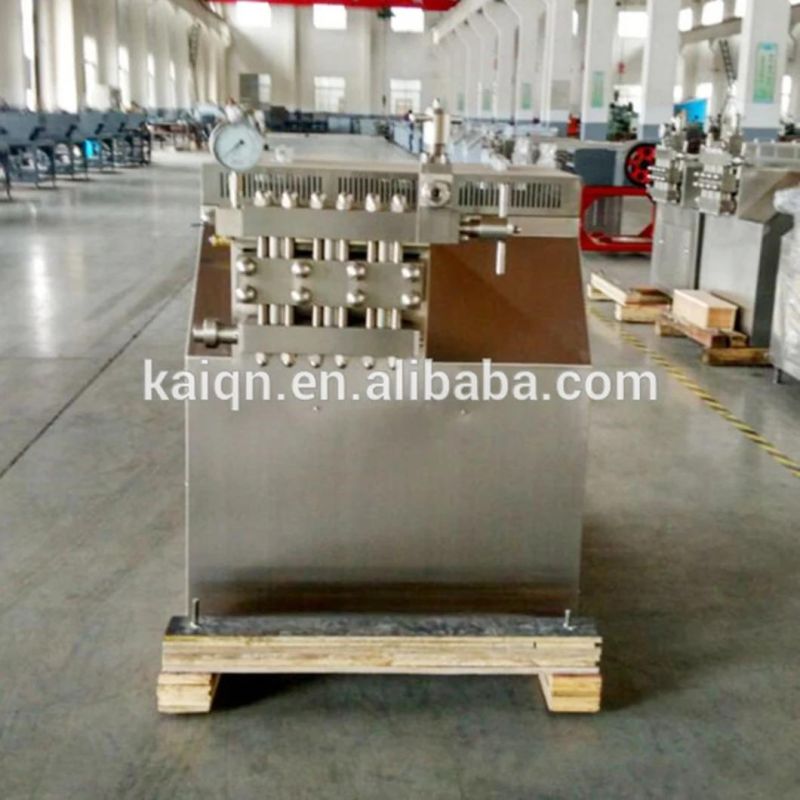

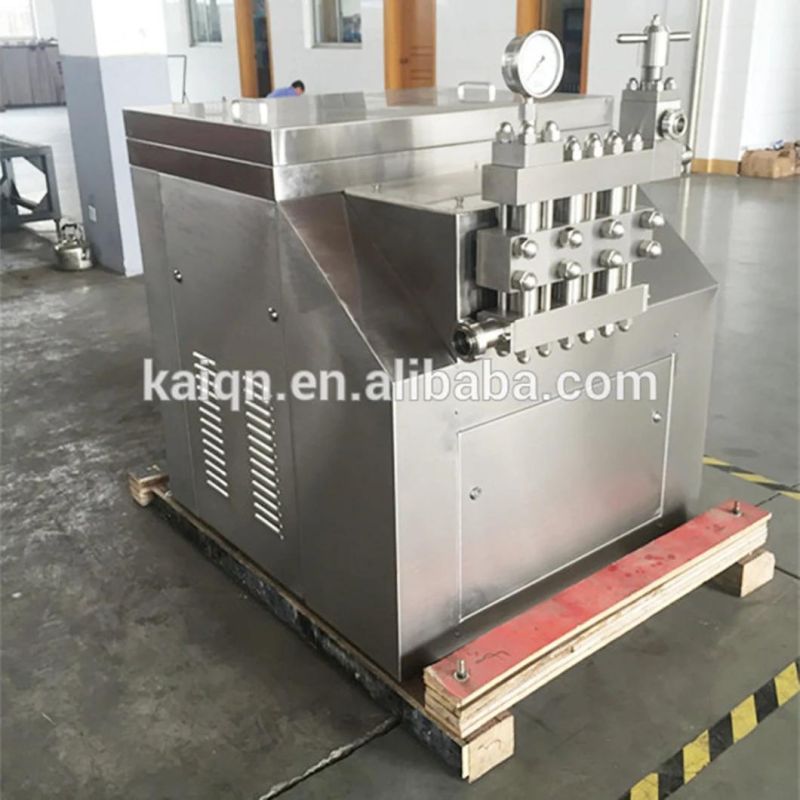

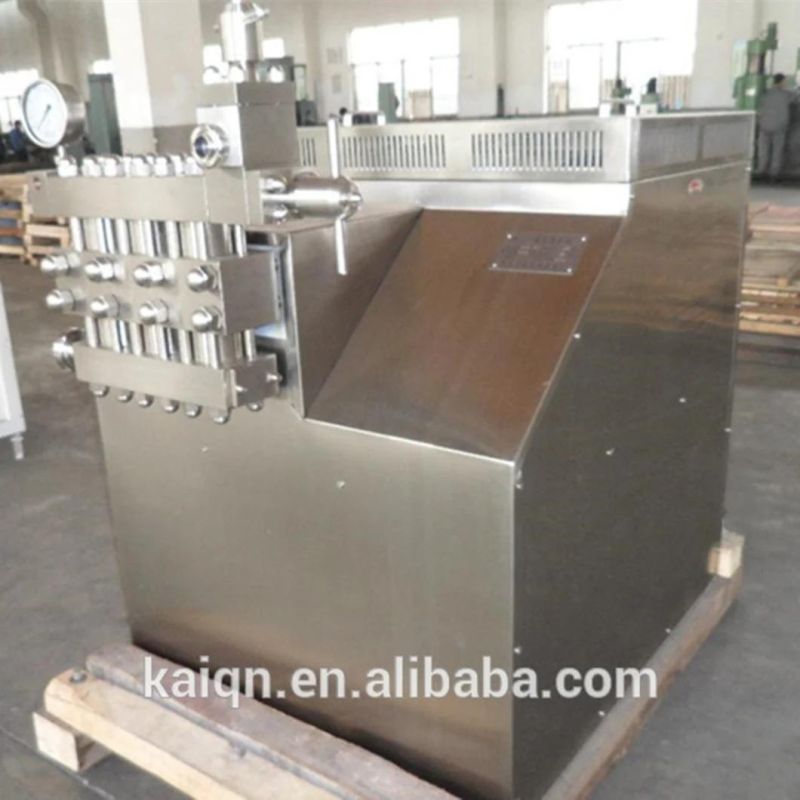

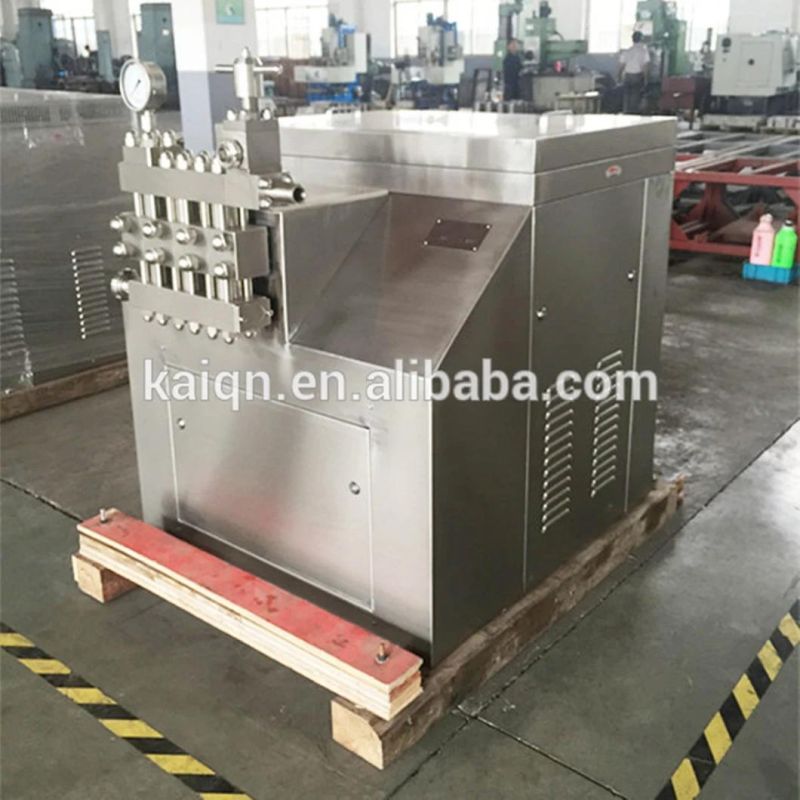

GJB Series Liquid Homogenizer For Milk Juice Ice Cream Price
Soybean milk homogenizer,  40MPA homogenizer

Model No. Technical parameter	KQ0.5-25	KQ1-25	KQ1.5-25	KQ2-25	KQ2.5-25	GJB3000-25 KQ3-25	KQ5-25
Rated pressure(MPa)	25	25	25	25	25	25	25
Rated flow ( Liters/H )	500	1000	1500	2000	2500	3000	5000
Medium temperature(C)	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Feeding pipe diameter(mm)	25	25	25	25	25	32	40
Discharge pipe diameter(mm)	15	15	20	20	20	20	25
Power of motor(Kw)	5.5	7.5	11	15	18.5	22	45
Volt and Electricity Flow	220V,60HZ,3PH	380V,50HZ	380V,50HZ	380V,50HZ	220V,60HZ,3PH	380V,50HZ	380V,50HZ
Outline dimension (m) Length * width * height	1.16×0.9×1.24	1.16×0.9×1.24	1.16×0.9×1.24	1.4×1.1×1.42	1.4×1.1×1.42	1.4×1.1×1.42	2.2×1.45×1.1
Weight(Tons)	0.4	0.5	1.25	1.25	1.25	1.25	1.7

Tea drinks homogenizer,  juice homogenizer
homogenizer pumps
High pressure homogenization is a standard industrial process for dairy products, to improve their stability and shelf life
series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.
The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.


The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )
GJB Series Liquid Homogenizer For Milk Juice Ice Cream Price .
