Beer Wort Chiller Heat Exchanger

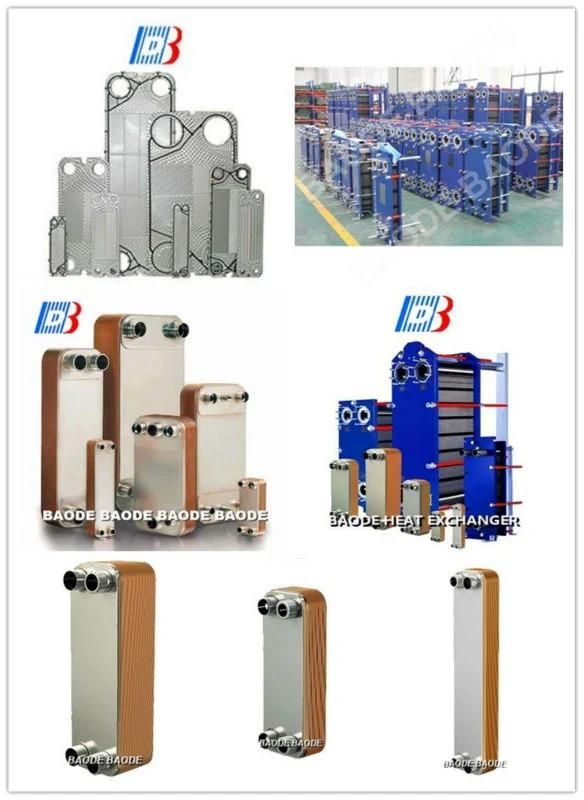

Jiangsu Baode Heat-exchanger Equipment Co., Ltd.- Heat Exchanger Type：Copper Brazed Plate Type
- Main Application：Liquid to Liquid Heat Exhange

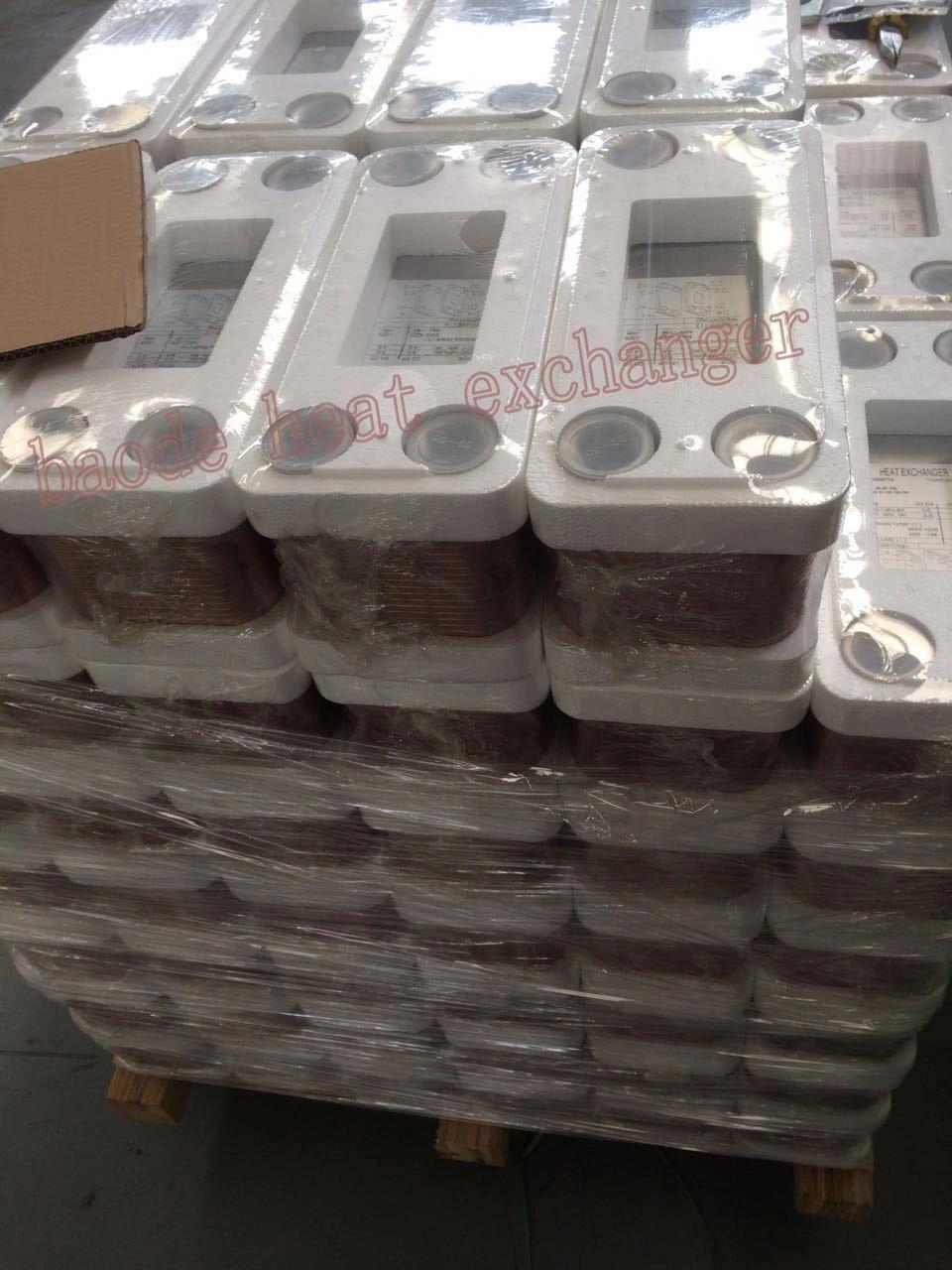

- Transport Package：Standard Plywood Box
- Specification：ISO9001, CE, UL, WRAS, ROHS and etc.
- Trademark：Baode
- Origin：China
Base Info
- Model NO.：BL Series
- HS Code：84159090
- Production Capacity：1000 PCS,Month
Description
Common Beer Wort Chilling ApplicationHX Model Wort Flow(gpm) cool time for 5 gals (mins) Wort in (F) Wort out (F) Water Flow(gpm) Water (F) BL14 -10 Plate 0.3 16.7 212 75 5 68 BL14 -20 Plate 0.65 7.7 212 75 5 68 BL14 -30 Plate 0.85 5.9 212 75 5 68 BL14 -40 Plate 1 5.0 212 75 5 68 BL20 -20 Plate 1.55 3.2 212 75 5 68 BL20 -30 Plate 1.9 2.6 212 75 5 68 BL20 -50 Plate 2.35 2.1 212 75 5 68 BL26 -20 Plate 1.65 3.0 212 75 5 68 BL26 -40 Plate 2.25 2.2 212 75 5 68 BL26 -60 Plate 2.6 1.9 212 75 5 68
Beer Wort Chilling with High Cooling FlowHX Model Wort Flow rate (gpm) cool time for 5 gals (mins) Wort in temp (F) Wort out Temp (F) Water Flow rate (gpm) Water Temp (F) *BL14 -20 Plate 0.8 6.3 212 75 10 68 *BL14 -30 Plate 1.15 4.3 212 75 10 68 BL14 -40 Plate 1.4 3.6 212 75 10 68 *BL20 -20 Plate 2.3 2.2 212 75 10 68 *BL20 -30 Plate 2.9 1.7 212 75 10 68 BL20 -50 Plate 3.4 1.5 212 75 10 68 BL26 -20 Plate 2.4 2.1 212 75 10 68 BL26 -40 Plate 3.55 1.4 212 75 10 68 BL26 -60 Plate 4.2 1.2 212 75 10 68
Beer Wort Chilling with High Cooling Flow
