• Model NO.：HDFM
• Condition：New
• Customized：Customized
• Warranty Time：Two Years for Maize Flour Milling Machine
• Installation Form：Steel Frame Construction
• Noise：Less Than 85 dB
• Dust：Less Than 10mg,M3
• Pipe：Stainless Steel for Maize Flour Milling Machine
• Spare Parts：Yes
• Control System：PLC for Corn Mill, Maize Flour Mill
• After Sale Service：Engineer Overseas
• Extraction Rate：70-90%
• Pack：Suitable for Sea Transportation
• Transport Package：Plastic Film, Transported in Container20′or 40′
• Specification：HDFM20
• Trademark：hongdefa
• Origin：Hebei China
• HS Code：84370000
• Production Capacity：More Than 200 Sets,Year

Basic Info.

Model NO. HDFM Condition New Customized Customized Warranty Time Two Years for Maize Flour Milling Machine Installation Form Steel Frame Construction Noise Less Than 85 dB Dust Less Than 10mg/M3 Pipe Stainless Steel for Maize Flour Milling Machine Spare Parts Yes Control System PLC for Corn Mill, Maize Flour Mill After Sale Service Engineer Overseas Extraction Rate 70-90% Pack Suitable for Sea Transportation Transport Package Plastic Film, Transported in Container20′or 40′ Specification HDFM20 Trademark hongdefa Origin Hebei China HS Code 84370000 Production Capacity More Than 200 Sets/Year

Product Description

Hot Sell Corn Mill, Maize Flour Milling Machine For Africa
High Standard Quality  Corn Mill, Maize Flour Milling Machine           Advance roller stands
           Screw air compressor
           Stainless steel pipe where contact with the material 1.  Corn Mill, Maize Flour Mill includes clean mill and pack Can produce fine maize flour and grits
2.  Corn Mill, Maize Flour Mill can be uesed for processing ugali, posho, Fufu, grits etc.
3. High extraction rate
4. Good quality
5. Material: Steel

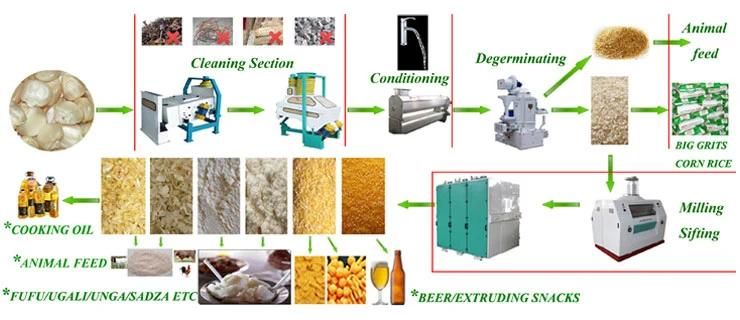

Techniques flow Grits: Raw maize →Cleaning →Moisture adjust →Peel and break →Embryo Select →Milling →Finished product
Cleaning flow: Raw maize →High efficiency vibrate sifter →Magnetic separator →Horizontal Scourer →Gravity classification stoner→ Clean maize

CAPACITY:30T/24H PROCESSING MAIZE
The core technologies of our group are in the filed of wheat flour mill and maize mill process
engineering, with European technology, South Africa maize process, China wheat process, roll out
unique and innovative wheat flour and maize meal processing line
1. CAPACITY:PROCESSING MAIZE 30T/24H
2. Final products:maize grits and bran
3.Workshop: (L×W×H):30m×8m×6m
4. Power supply: About86.6kW
6.Container:40'
7. Installing time: one  months.

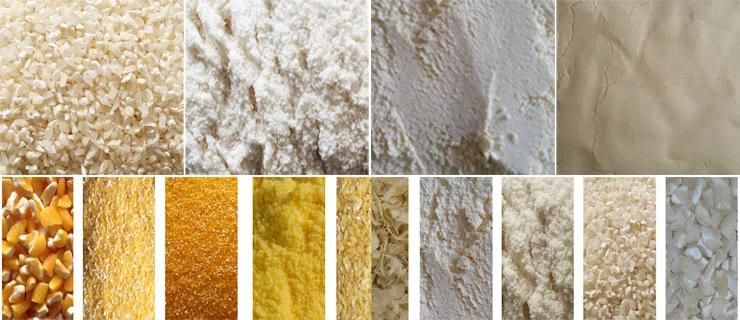

Final products:Different size of maize flour and maize grits


We have export our product to many countries, like Argentina (100t/24h) , Brazil(200t/24) ,South Africa
(1500t/24h), Zimbabwe (120t/24h, 50t/24h, 30t/24h) , RD Congo (20t/24h) ,Zambia (30tons/24h,50t/24h ,
100tons/24h,150tons/24h),Benin (150t/24h), Kenya (150t/24h, 50t/24h.)
Hongdefa clients tree


Control system for  Corn Mill, Maize Flour Milling Machine

Type	Capacity	Flour extraction	power	Workshop	Container(ft)
6FYDT-5T	5t/24h	Fine flour 75-85%	15kw	10m/5m/5m	20*1
6FYDT-10T	10t/24h	Fine flour 75-85%	23kw	10m/5m/5m	20*1
6FYDT-12T	12t/24h	Fine flour 75-85%	55kw	16m/6m/5m	40*1
6FYDT-15T	15t/24h	Fine flour 75-85%	80kw	18m/5m/5m	40*2
6FYDT-25T	25t/24h	Fine flour 75-85%	95kw	18m/5m/5m	40*2
6FYDT-30T	30t/24h	Fine flour 75-85%	95kw	26m/8m/5m	40*2
6FYDT-50T	50t/24h	Fine flour 75-85%	135kw	27m/9m/7.5m	40*2
6FYDT-100T	100t/24h	Fine flour 75-85%	240kw	30m/9m/10m	20*1 40*4

Which countries installate the  Corn Mill, Maize Flour Milling Machine?

Capacity	Countries	Year
20tons/24h maize flour mill	Zimbabwe	2009
	RD Congo	2010
	Cameroon	2010
	Zambia	2010
	Zambia	2011
	RD Congo	2011
	Uganda	2011
	Angola	2011
50tons/24h maize flour mill	Malawi	2009
	Kenya	2010
	Zimbabwe	2010
	RD Congo	2010
	Argentina	2010
	Venezuela	2010
	Zambia	2010
	Uganda	2011
100tons/24h maize flour mill	South Africa	2010
	Venezuela	2010

Client visiting Hongdefa

FAQ:

Q1. Does the maize mill line can produce different kind of maize meal,maize flour same time?

Yes,the maize mill line can produce size maize meal or maize flour at same time at one production line

Q2. Does the maize mill line can running with Generator?

Yes,the maize mill line can running with Generator

Q3. Does the maize meal packing machine can pack different bags?

Yes,the packing machine can pack 1kg-5kg;5kg-20kg,12.5kg-25kg,50kg

Q4. Does the maize mill line can processing maize and wheat same time?

No,it is because the maize and wheat Physical Characteristics is different,like the shape,the hardness, all are different,and the final product flour size is also different. The cleaner,the roller millparameter, the plansifter sieve all are different. As professional manufacture for maize meal or flour,cannot processing maize and wheat same time.

Q5. Which country has installed the machine?

Kenya, Uganda, Tanzania, Zambia, Malawi, Namibia, Congo, South Africa, ect.

Contact details:

Mrs Grace
Shijiazhuang HONGDEFA machinery Co.ltd
No.388 jianhua north street,Shijiazhuang,China
Website:sjzafricachina.en.made-in-china.com
Mob:0086-15175126486

If you need more technical information and exactly price about the Corn Mill, Maize Flour Milling Machine, please contact with us freely.Thanks!
