• Model NO.：YGJ
• Trademark：Genyond
• Origin：Shanghai, China
• HS Code：843880000
• Production Capacity：10000 Pieces Per Year

Basic Info.

Model NO. YGJ Trademark Genyond Origin Shanghai, China HS Code 843880000 Production Capacity 10000 Pieces Per Year

Product Description

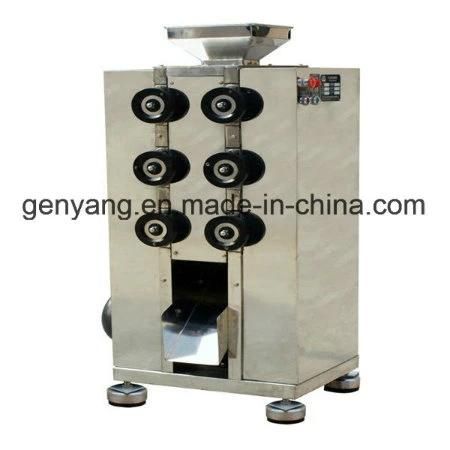

Steel material coffee bean Roller mill
Product description

Main Application

This machine is used to grind the materials which have oil such as sesame,penaut and almod.the machine is well designed and devloped by our company,it filled a gap in the oil mill,which had reached the international advanced level.

Working Principle
The raw materials are feed into the roller area form hopper,they are milled into powder by the squeezed of the rollers,you can get different sizes of final production by adjusting by the distance of two rollers.the machine is easy to operate with low noise and high capacity which is the best mill for material.

Technical Parameter


Model	Production Capacity(kg/h)	Crushing Fineness	Motor Power	Overall dimension (L*W*H)	Weight
YGJ1-100	20-80 kg/h	8-20 mesh	0.75 kw	500*500*890 mm	250 kg
YGJ2-100	20-80 kg/h	8-40 mesh	1.5 kw	500*500*1130 mm	300 kg
YGJ3-100	20-80 kg/h	8-60 mesh	2.2 kw	500*500*1370 mm	350 kg
YGJ4-100	20-80 kg/h	8-80 mesh	3 kw	500*500*1610 mm	400 kg
YGJ1-150	50-200 kg/h	8-20 mesh	2.2 kw	720*520*920 mm	500 kg
YGJ2-150	50-200 kg/h	8-40 mesh	3 kw	720*520*1160 mm	550 kg
YGJ3-150	50-200 kg/h	8-60 mesh	4 kw	720*520*1160 mm	600 kg
YGJ4-150	50-200 kg/h	8-80 mesh	5.5 kw	720*520*1640 mm	650 kg
YGJ1-300	100-500 kg/h	8-20 mesh	3 kw	920*700*1200 mm	720 kg
YGJ2-300	100-500 kg/h	8-40 mesh	4 kw	920*700*1480 mm	920 kg
YGJ3-300	100-500 kg/h	8-60 mesh	7.5 kw	920*700*1760 mm	1120 kg
YGJ4-300	100-500 kg/h	8-80 mesh	7.5 kw	900*700*2060 mm	1300 kg
YGJ1-500	200-1000 kg/h	8-20 mesh	5.5 kw	1100*730*1220 mm	950 kg
YGJ2-500	200-1000 kg/h	8-40 mesh	7.5 kw	1100*730*1480 mm	1250 kg
YGJ3-500	200-1000 kg/h	8-60 mesh	11 kw	1100*730*1820 mm	1550 kg
YGJ4-500	200-1000 kg/h	8-80 mesh	11 kw	1100*730*2120 mm	1850 kg

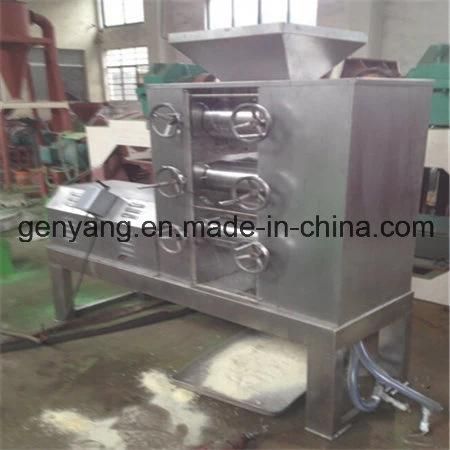

Detailed image

Packaging & Shipping

1.Package: wooden cases for sea transportation

2.Delivery time: 30 working days after receiving the deposit

3.Installation : engineers available for installation and training overseas

4.Guarantee : 12 months after it is sent out
