• Model NO.：BWG3000
• Material：Stainless Steel
• Transport Package：Wooden Box
• Specification：CE, SGS, ISO9001
• Trademark：Lejoy
• Origin：Suzhou, Jiangsu, China (Mainland)
• HS Code：84382000
• Production Capacity：20 PCS,Month

Basic Info.

Model NO. BWG3000 Material Stainless Steel Transport Package Wooden Box Specification CE, SGS, ISO9001 Trademark Lejoy Origin Suzhou, Jiangsu, China (Mainland) HS Code 84382000 Production Capacity 20 PCS/Month

Product Description

Use:

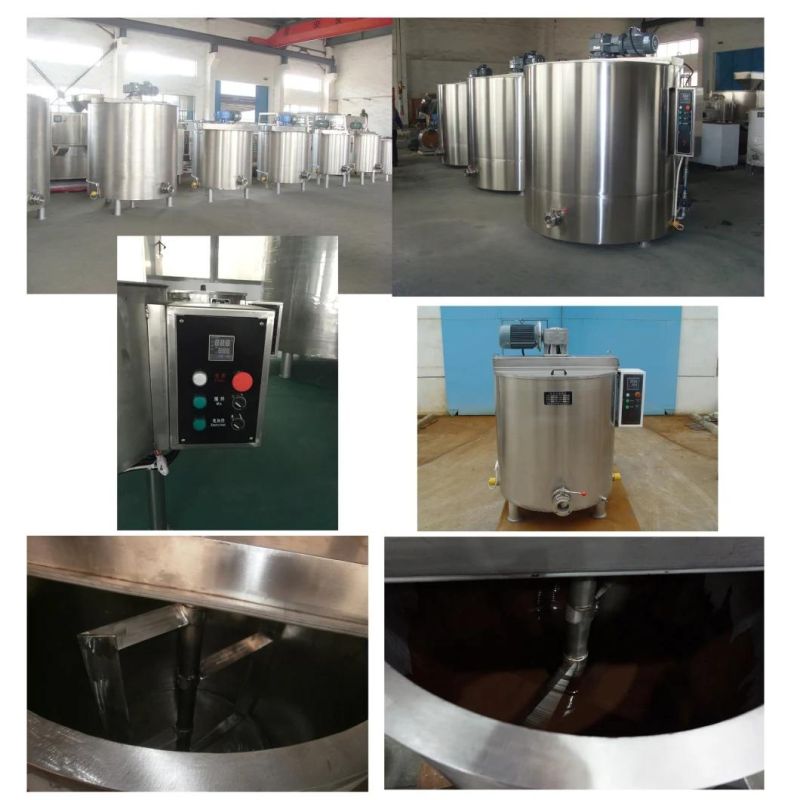

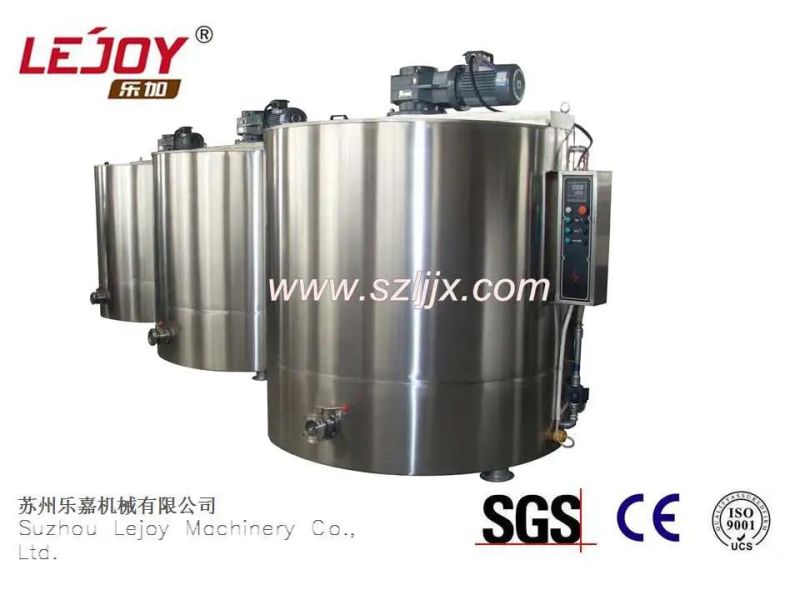

BWG Chocolate Storage Tank is the special storage container for conched or ball milled chocolate pastes with electric heating and automatic temperature control. It enables the chocolate pastes being kept at a set temperature. Through heat preserving and stirring, it will lower the moisture content of the chocolate pastes and improve its liquidity so as to have a longer shelf life and better taste.

Materails: Stainless steel

Technical Parameters:
Capacity: 3000L
Stirring speed: 23.5rpm
Main power: 5.5kW
Heating power: 9kW
Machine weight: 2000kg
Outside dimension: Φ1900×2150mm

Features:
* Electric heating
* Automatic temperature control
* With agitating system



Technical Parameter	BWG30	BWG50	BWG100	BWG200	BWG300	BWG500
Capacity(L)	30	50	100	200	300	500
Stirring Speed(rpm)	23.5	23.5	23.5	23.5	23.5	23.5
Main Power(kW)	0.25	0.25	0.55	0.75	0.75	1.5
Heating Power(kW)	2	2	2	4	4	4
Machine Weight(kg)	100	120	150	200	280	500
Outside Dimension(mm)	Φ500x800	Φ700x850	Φ650x950	Φ800x1150	Φ900x1250	Φ1000x1380



Technical Parameter	BWG1000	BWG2000	BWG3000	BWG5000	BWG10000
Capacity(L)	1000	2000	3000	5000	10000
Stirring Speed(rpm)	23.5	23.5	23.5	23.5	23.5
Main Power(kW)	2.2	3	5.5	7.5	11
Heating Power(kW)	6	9	9	9	12
Machine Weight(kg)	900	1500	2000	3100	5000
Outside Dimension(mm)	Φ1220x1850	Φ1700x2100	Φ1900x2150	Φ2200x2250	Φ2250x3800
