• Model NO.：DZ500-Q
• Material：304 Stainless Steel or According to Customer Requi
• Rated Power：2.0kw
• Sealing Dimensio：500*10mm,2
• Packaging Capacity：120-200 Units,Hour
• Transport Package：According to Customer Requirements
• Specification：1200*700*900mm
• Trademark：TIANSHUN
• Origin：China
• HS Code：8438600000
• Production Capacity：2000pieces,Year

Basic Info.

Model NO. DZ500-Q Material 304 Stainless Steel or According to Customer Requi Rated Power 2.0kw Sealing Dimensio 500*10mm/2 Packaging Capacity 120-200 Units/Hour Transport Package According to Customer Requirements Specification 1200*700*900mm Trademark TIANSHUN Origin China HS Code 8438600000 Production Capacity 2000pieces/Year

Product Description

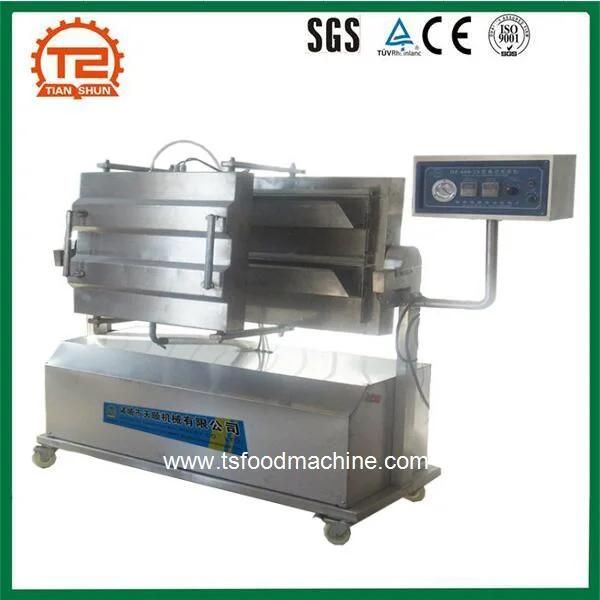

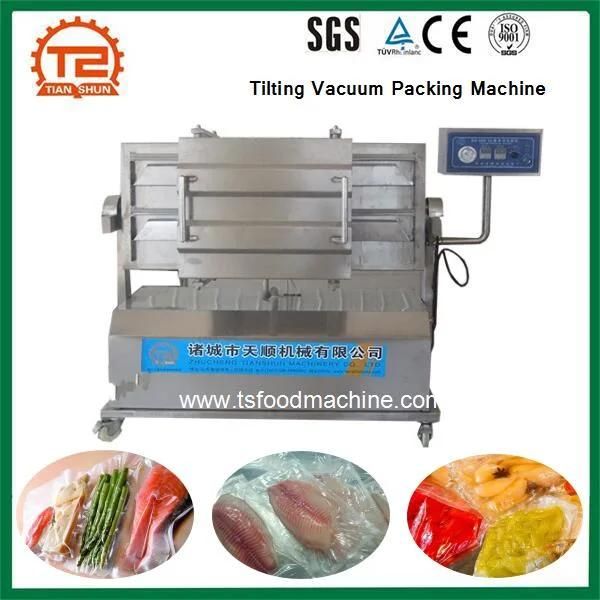

1.-Tilting Vacuum Packing Machine
Tilting Vacuum Packing Machine is designed for water more products (not flat)vacuum packaging research and development design, the original horizontal working mesa turned into a tilting, greatly satisfy the moisture more be flat the vacuum packaging of the product requirement, is the highest cost performance, easy maintenance, low energy consumption, stable performance of a new type of vacuum packaging machine.



2.-Applications of Tilting Vacuum Packing Machine
This machine can be widely used in meat products, aquatic products and others which have to be packed in vacuum bags for long shelf time.




3.-Technical Parameters

No.	Parameter	Introduction
1	Model	DZ500-Q
2	Studio size	590*540*130mm
3	The Voltage	308V/50HZ
4	Power	2.0kw
5	Installation dimensions	1200*700*900mm
6	The sealing line	500*10mm/2
7	Sealing ability	120-200 each/Hour

Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different needs.
Machines Materials: All the machines are made by 304 stainless steel.


4.-Package & Shipment
A).Packing:With wrapped film, in wooden case.
B).Transportation: Shipping, train, or other types.

5.-Company Introductions

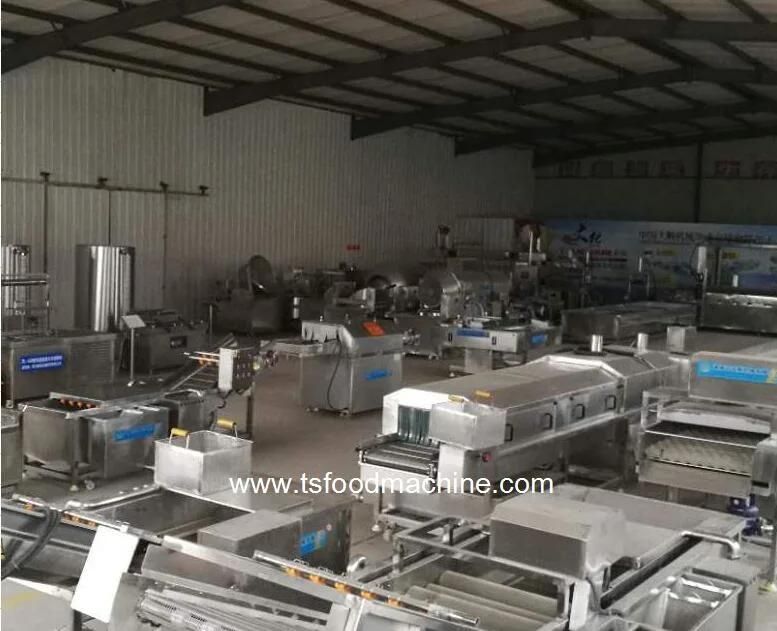

Zhucheng Tianshun Machinery CO.,LTD. is a collection research and development , production, sales and after sales in the integration of modern food machinery equipment manufacturing enterprises.
 The main production and processing of aquatic products, vegetable, fruits, roots,meat, pickled food pricessing, such as a complete set of equipment.


Cleaning equipment is widely used in aquatic products, vegetables, food flexible packaging bags, plastic crate, materials plate cleaning, etc.
 Blanching cooking equipment is widely used in aquatic products vegetables, meat, fish, products, conditioning, etc.
Pasteurization line is mainly used for vegetables, meat products, beverage and other food sterilization;
Air drying machine, dryer is mainly used in food packaging, food, and beverage to remove moisture drying.
Frying equipment widely use in seafood, nuts, the leisure class, canned meat, toning, vegetables, pasta and other products.
Vacuum packing machine is used for vacuum packing products.
The vacuum packaging machine, frying machine and vegetable cutting machine have passed the European CE certification.


Services & Installation:
1. ) Consultation service before, during, and after sales;
2. ) Project planning and design services;
3. ) Debugging of equipment until everything is functional;
4. ) One year time maintenance&repairing service.
