• Model NO.：HX-16Y-01
• Rated Power：5 Kw
• Frequency：50 Hz
• Oil Consumption：6 Kg,H
• Burner：Olympia or Riello
• Material：Stainless Steel #201
• Dimension：1900*1400*2500 mm
• Trolley Quantity：2 PCS
• Net Weight：1600kg
• Packing Volume：7.8cbm
• Packing Material：Wooden Case
• Transport Package：Woode Case,Customerized
• Specification：CE
• Trademark：Hongling
• Origin：Guangzhou China
• HS Code：841720000
• Production Capacity：50,Month

Basic Info.

Model NO. HX-16Y-01 Rated Power 5 Kw Frequency 50 Hz Oil Consumption 6 Kg/H Burner Olympia or Riello Material Stainless Steel #201 Dimension 1900*1400*2500 mm Trolley Quantity 2 PCS Net Weight 1600kg Packing Volume 7.8cbm Packing Material Wooden Case Transport Package Woode Case/Customerized Specification CE Trademark Hongling Origin Guangzhou China HS Code 841720000 Production Capacity 50/Month

Product Description

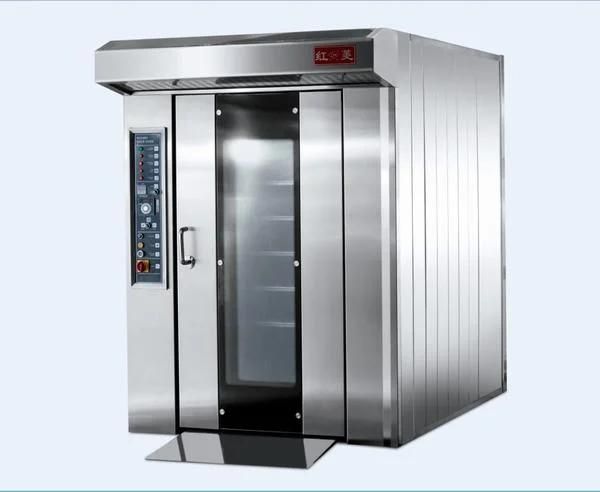

Product introduction

1. Suitable for commercial baked pastry food.
2. Easy to operate, one operator can save manpower.
3. Baking a wide range:cakes, toast, hamburger, egg, pie, etc.
4. Reasonable body structure design.
5. Efficient low-energy,super insulation.
6. Overheating protection, safe and reliable.
7. Full stainless steel body
8. Computer control panel, simple to operate
9. Steam humidification function

Product Features

Model: HX-16Y-01
Rated Voltage:380v/50 hz 3 phase
Rated Power: 5 kw
Dimension:1900*1400*2500 mm
Remark: with steamer
Burner: Olympia or Riello
Controlled system imported from Germany (Schneider)
English control panel
Heat exchanger : SS#201
Heating wind counter flow systems
Electric components imported from Germany
Heat insulation: 2 layered 145 mm thickness
Inner material: SS#201, 1.5 mm
Outer material:SS#201, 1.2 mm
Base plate thickness: 6 mm
Trolley: 2 pcs  Material SS #201
Tray Size: 400*600 mm
Net weight: 1600 kg
Gross weight: 1800 kg
Volume: 6.67CBM
Packing: wooden case

About the voltage and frequency: if need to change the voltage and frequency, will charge the price difference of motor

Model	HX-16D -01	HX-16Q-01	HX-16Y-01	HX-32D-01	HX-32Q-01	HX-32Y-01
Fuel	Electric	Gas	Diesel	Electric	Gas	Diesel
Capacity	16	16	16	32	32	32
Voltage	380	380	380	380	380	380
Power	35kw	5kw/gas 7kg/h	5kw/Oil 6kg/h	51kw	5kw/Gas 7kg/h	5kw/Oil 7kg/h
Width	1900	1900	1900	2550	2550	2550
Depth	1400	1400	1400	1600	1600	1600
Height	2500	2500	2500	2500	2500	2500
