8000liter Stainless Steel Milk Storage Tank Milk Cooler

Wenzhou Ranking Imp. & Exp. Co., Ltd.
  • Process：Frozen and Chilled
  • Power Source：Electric
  • Certification：CE
  • Automatic Grade：Manual
  • Application：Milk, Yogurt, Milk Powder, Cheese
  • Customized：Customized

Base Info

  • Model NO.：milk cooler
  • Main Material：Ss304
  • Cooling Medium：R404A (Environment Friendly)
  • Storage Temperature：4 Degree Celsius
  • Mixing Speed：25rpm
  • Refrigeration Unit：Copeland , Bitzer , Maneurop
  • Transport Package：Wooden Packaging , Pallet
  • Specification：500L ~ 8000L
  • Origin：China
  • HS Code：8419899090
  • Production Capacity：500PCS, Month

Description

NoModelMCT-5000L1Volume 5000L2Materials used for construction Stainless steel 304 3Shape and orientation Horizontal, Closed Cylindrical4Overall Dimensions 4200 × 2150 × 1800 mm5Weight (kg) 1100kg6Thickness of inner shells mm37Thickness of dimple jacket mm38Thickness of outer shells mm39Thickness of insulation50mm PU10Number of agitator 111RPM of agitator 3012Washing / CIP cleaningWith CIP cleaning ball13Make of compressor Copeland in USA 14Size 12HP15Number of Compressors 116Model of Compressor cooled Air17Number of condensers 218Number of fans 2~419Type of refrigeration R40420Control panel  121power supply380V  50Hz  3phase22PRICFE please contact our on line sales teamFlow rate5T/HLift head24MMotor power1.5PHIn/out let diameter51/38Motor brandABB with CE8000liter Stainless Steel Milk Storage Tank Milk Cooler

Item No. 3 Milk Analyzer
With six parameters: FAT, SNF, Density, Protein, Freezing point, Added Water
Master  LM2-P1
  •   Ultrasonic Technology
  •   Memory for 500
  •   measurements
  •   Peristaltic pump
  •    PH
  •   Conductivity(built-in probe)
  •   Low power consumption
  •   Very small quantity of milk
  •   1XRS 232 connection to PC
  •   ESC POS Printer Support
  •   Built-in keypad
  •   Large graphic display
  •   Scale(option)
  •   One year full warranty
  •   Clock (time and date)
  •   No acid or other
  •   chemicals are used
Measuring parametersAnalytical range in milk Maximum permissible absolute error Fat0,01- 20%±0,08%Solids-non-fat (SNF) 3% - 15% ±0,1%Density1015 - 1040 kg/m3±0,3kg/m3Protein2% - 7% ±0,1%Lactose0,01% - 6%±0,1%Added water 0% - 70%±3Milk sample temperature 1°C -40°C±1%Freezing point -0,3°C - -0,7°C±0,005%Solids 0,4% - 1,5%±0,05%PH 0 - 14±0,05%Conductivity 2 - 10 [mS/cm] ±0,1%Environmental Conditions:
  • Ambient air temperature - 5°C - 40°C
  • Milk temperature -1°C -40°C
  • Relative humidity - 30% - 80%
Electrical Parameters:
  • AC Power Supply voltage - 220V/110VDC
  • Power Supply voltage - 12V to 14,2V
  • Power Consumption - 50W max
Mechanical Parameters:
  • Dimensions (W x D x H) 110x260x205mm
  • Weight < 3,1 kg
Item No. 5 SS Dump Tank 500 Litre Capacity Capacity500LMAX capacity550LDimension mmm)L×W×H165×1150×850Inlet pipe Diameter100×1.5Outlet pipe diameterDN40Filter fineness80meshThis dump tank is made of SS304 material
With inner layer mirror polish and out layer mate.
3mm thickness, with a discharge valve at the discharge pipe.

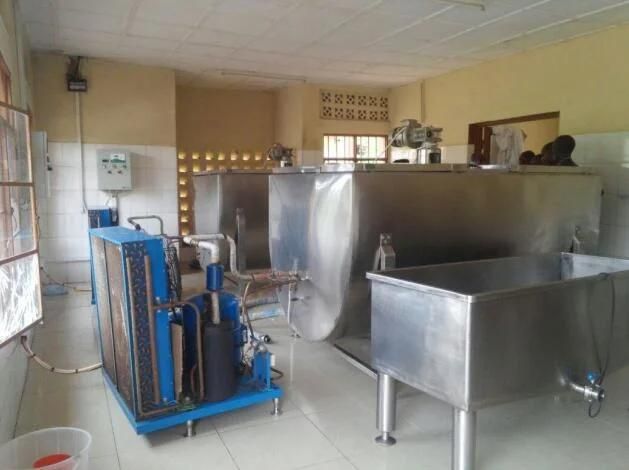

8000liter Stainless Steel Milk Storage Tank Milk Cooler
8000Liter stainless steel milk storage tank milk cooler
