• Model NO.：M5, M10, M15, M20, M30
• HS Code：8418699020
• Production Capacity：100 Pieces, Month

6 to 12 min10 to 18 minControl SystemElectronic, ComputerBeater DesignReplaceable BladesCondenserAir -CoolingWater -CoolingPower Type220v/1/50hz,60hz380v/3/50,60hz or 220v/3/50,60hz ConstructionWelded Steel (stainless steel available with extra cost charged)Frame TypeCounterFloorOuter Panel MaterialStainless Steel, AISI 304Rinse SystemNoStandardNet Weight239 lbs/110 kg391 lbs/180 kg478 lbs/220 kg564 lbs/260kg673 lbs /310 kgGross Weight315 lbs/145 kg467 lbs/215 kg564 lbs/260 kg651 lbs/300kg845 lbs/380 kgWidth 17.7 inch/45cm19.0 inch/48 cm21.9 inch/55 cm22.8 inch/58cm27.17 inch/69cmDepth 31.5 inch/80cm28.4 inch/72 cm30.1 inch/72 cm34.6 inch/88cm36.2 inch/92cmHeight 30.7 inch/78cm51.2 inch/130 cm52.0 inch/132 cm55.9 inch/142cm56.0 inch/142cmPower2500 w5500 w7100 w9100 w11200 wNote: 1. The batch time may change according to cooling condition and raw material.  2.The performance of air-cooled models is referred to <25 °C environment temperature.

Technical Specification

Model	Capacity	Cool.	Current	Installed Power	Compressor	Dim.W/D/H	Packaging Dim.	Net weight	Gross Weight
			Voltaje
	Itr.		Volt/ph/hz	Kw	hp	mm	mm	kg	kg
M10	10	Water	220,380/3/50,60	4.6	3	550/780/1360	700/1080/1520	283	345
M15	15		220,380/3/50,60	5.3	4			295	355
M20	20		220,380/3/50,60	7.7	6	550/860/1400	700/1150/1550	335	405
M30	30		220,380/3/50,60	7.25	5.0*			384	450

Machine Description

*MEHEN GelatoMaster integrates abundant ice cream making experience.

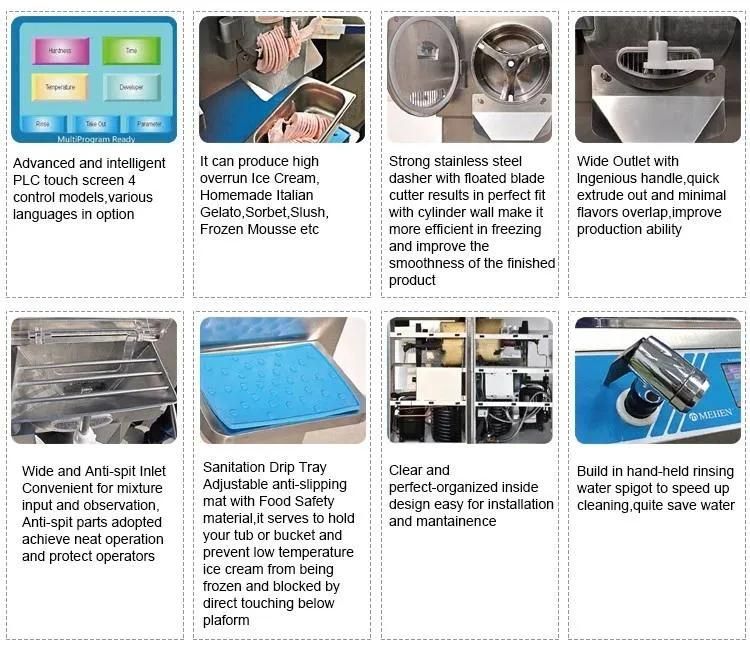

*Great stability, easy to operate, efficient freezing, advanced touch screen controller, any operators can make premium ice cream by presetting parameters in timer, temperature or hardness.

*Professional programs for customer reset are existed for master-chefs and technicians for development purpose.

*All these features make it an ideal machine for premium ice cream and cold dessert.
