• Model NO.：GJB Series
• Name：Double Wall Stainless Stee Mixing Heating Buffer
• Preparation Tank for Milk ,Yogurt：Aseptic Tank Set
• Material：Stainless Steel 304,316
• Capicity：50L to 5000L
• Heating：Electric , Steam
• Usage：Food Industry etc
• Orign：Shanghai China
• Delivery：10 Days After Get Your Payment
• Packing：Wooden Box
• Payment：Negotiable
• Warranty：One Year
• Spare Parts：Avilable
• MOQ：1set
• Working Life：More Than 10 Year
• OEM：Yes
• Transport Package：Standard Wooden Box
• Specification：10000L, 20000L, 30000L
• Trademark：KQ
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：50sets Per Month

Technical ParameterCapacityHomogeneous motorStir motorDimensions (mm)Total powerLimit vacuumKWr/minKWr/minLengthWidthHeightKWMpa5L0.370-30000.180-6312605401600/18505-0.0910L0.750-30000.370-631305801600/19506-0.0950L3-5.50-30001.10-63260022501950/270018-0.09100L4-7.50-30001.50-63275023802100/295032-0.09200L5.5-110-30002.20-63275027502350/335045-0.09300L7.5-110-30002.20-63290028502450/350049-0.085500L110-300040-63365033002850/400063-0.0951000L150-30005.50-63420036503300/480090-0.092000L150-30007.50-63485043003800/5400--0.85


Features:
Strictly according to GMP standard design and production, polishing meet 300U(sanitary standrad);
The inner parts adopts 316 stainless steel;
Bearing adopts Japanese NSK;
Imported frequency conversion control(Taiwan Delta)
Machinery sealing with excellent sealing quality and performance, can continuously work 24 hours;
Scraper blending and stable blending work at the same time
Material Information:
80% of the main parts of our products are provided by world famous suppliers.
Equipent Charcteristics:
- Electric heating and stream heating
- Wide suitability
- Labor saving
- Easy to use and maintain

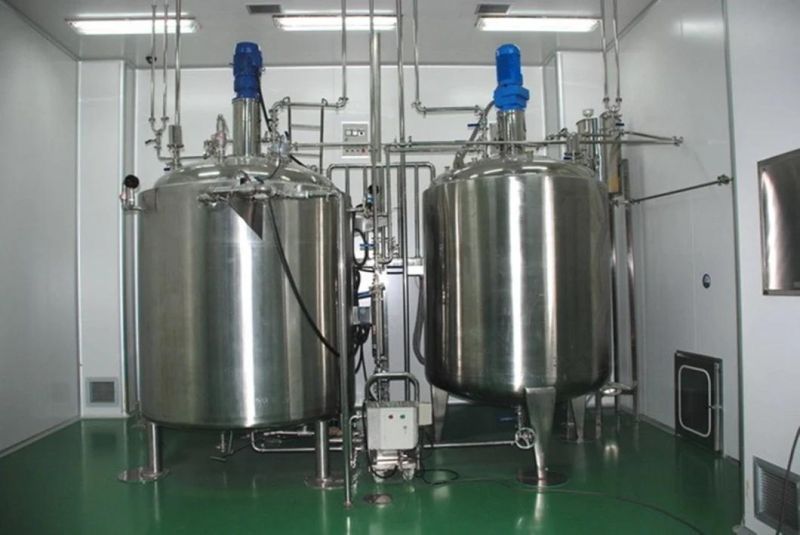

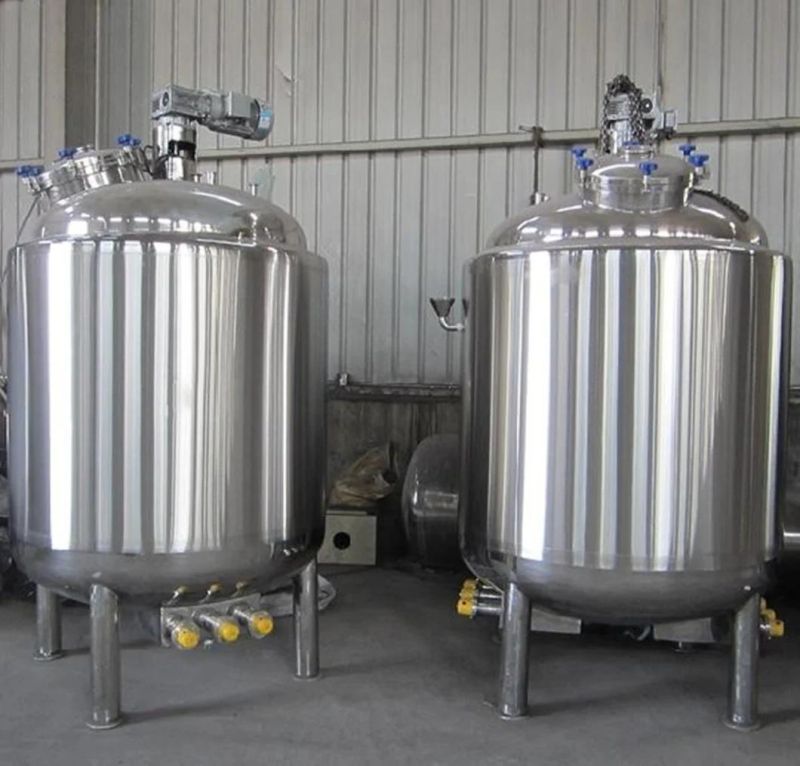

Double Wall Stainless Stee Mixing Heating Buffer Tank
