• Model NO.：AY-61
• Specification：38*22*20cm
• Trademark：ACME
• Origin：China
• Production Capacity：50000units,Year

Basic Info.

Model NO. AY-61 Specification 38*22*20cm Trademark ACME Origin China Production Capacity 50000units/Year

Product Description

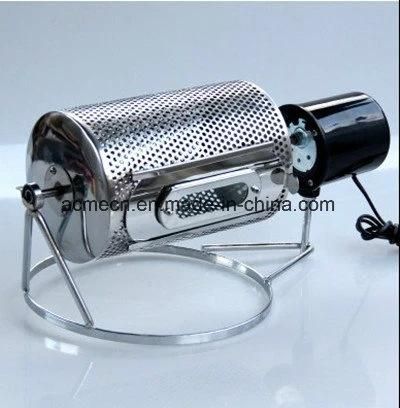

ACME Household Coffee Roaster





1.Installation
  Fix the motor and the rack by tightening the nut and then connect the cylinder and the motor(The motor's height should be the same level of its bearing).
2.Operation Instruction
  a.It can be used over stove.The rotational speed of the dynamo is 25 r/min to ensure the uniformity of roasting.

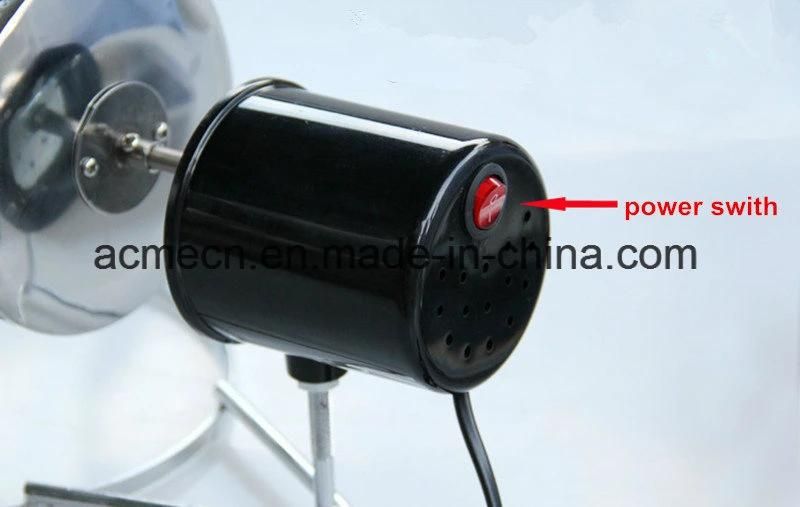

  b.Open the cylinder's lid and turn on the rotating switch.Put in the coffee beans and cover the lid after preheating up to 80 centigrade.Turn on the rotating switch again (it must be turned in reverse) and control the roasting depth through the observation window or by your personal likes or dislikes.

  c.Do not open the lid by your bare hand(s) and use a towel or something to protect your hand(s) from high temperature after finishing roasting.Put a stainless steel tray beneath the cylinder,start the switch and the goods inside will fall down automatically.Place the coffee beans into a netting basket and mixing can cool swiftly and peel the beans.The machine is used to roast the chestnuts,melon seeds,pine nuts,peanuts and cashew nuts and others needed to roast.

Operation:

This is a hand operated coffee roaster.  First you should put the machine on a device which can provied fire.

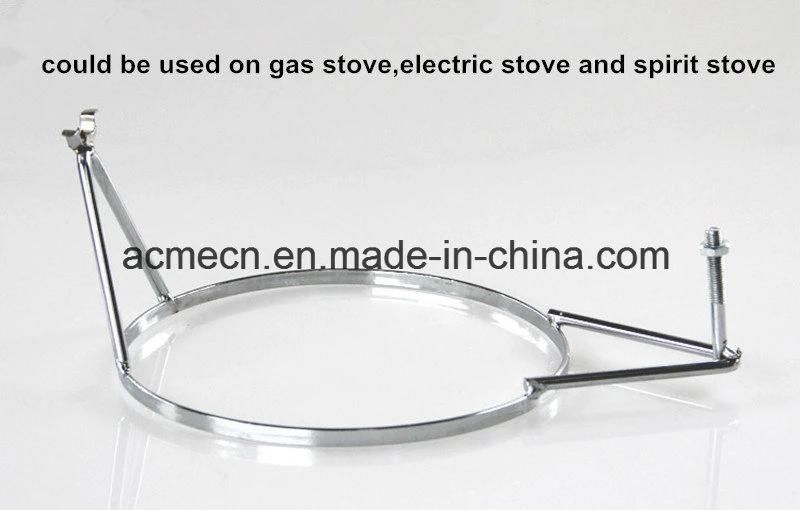

Those device could be gas stove,oven or furnace. Operater feeding the coffee bean into the revolving drum.

Then turn on the power. The roaster can roaste by itself. But you should master the roastering time.

There are many holes on the surface of the drum for your obersevation.

pecification

Product Name	Coffee roaster
Model	AN
Color	Stainless steel
Working manner	drum-type
Power	40W
Voltage	220V-240V 50Hz
Certification	CE
diameter of cylinder	14cm
Weight	2.6KG

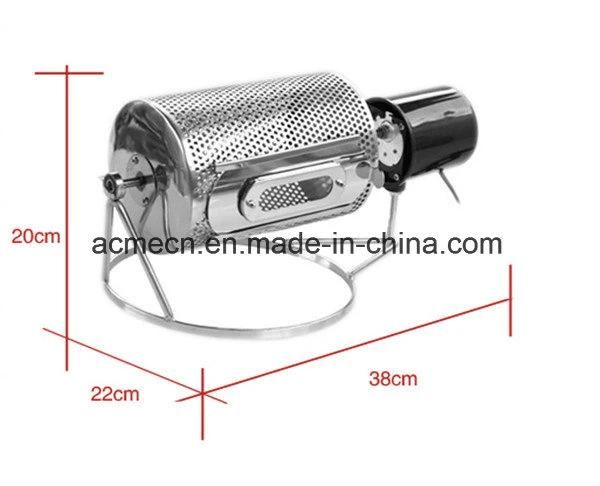

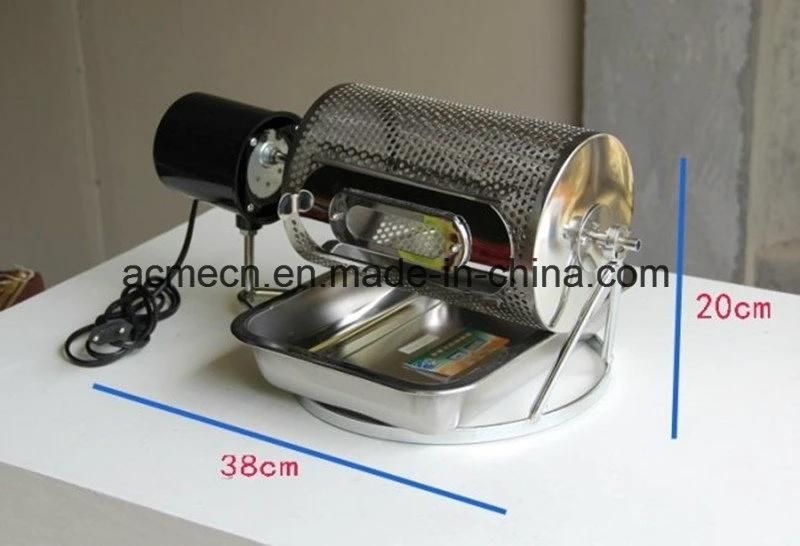

Dimension	38*22*20cm
Inner packing size	32*23.5*16cm
Wide packing size	34.5*19*23cm
