• Model NO.：KQ100L-30000L
• Voltage：Follow Your Request
• Mixing Speed：36rpm, 48rpm,96rpm, 2900rpm
• Heating：Electric ,Hot Water ,Steam ,Gas
• Working Life：More Than 10 Years
• Tank Function：Heating, Fermenting, Mixing , Warm Keeping
• OEM：Accept
• Certificate：CE
• Spare Parts：Available
• Application：Industry , Chemistry and Pharmacy
• Cleaning：CIP Spray Ball
• Motor Brand：Siemens ,ABB ,China Brand
• Transport Package：Standard Export Wooden Box
• Specification：ISO
• Trademark：KQ
• Origin：Shanghai China
• HS Code：8479820090
• Production Capacity：100sets Per Month

Basic Info.

Model NO. KQ100L-30000L Voltage Follow Your Request Mixing Speed 36rpm, 48rpm,96rpm, 2900rpm Heating Electric /Hot Water /Steam /Gas Working Life More Than 10 Years Tank Function Heating, Fermenting, Mixing , Warm Keeping OEM Accept Certificate CE Spare Parts Available Application Industry , Chemistry and Pharmacy Cleaning CIP Spray Ball Motor Brand Siemens /ABB /China Brand Transport Package Standard Export Wooden Box Specification ISO Trademark KQ Origin Shanghai China HS Code 8479820090 Production Capacity 100sets Per Month

Product Description

Milk Pasteurizer Fermentation Tank Mixing Machine Cooling Tank Jacketed Tank
Small electric heating tank pasteurizer for dairy, jucie factorys.

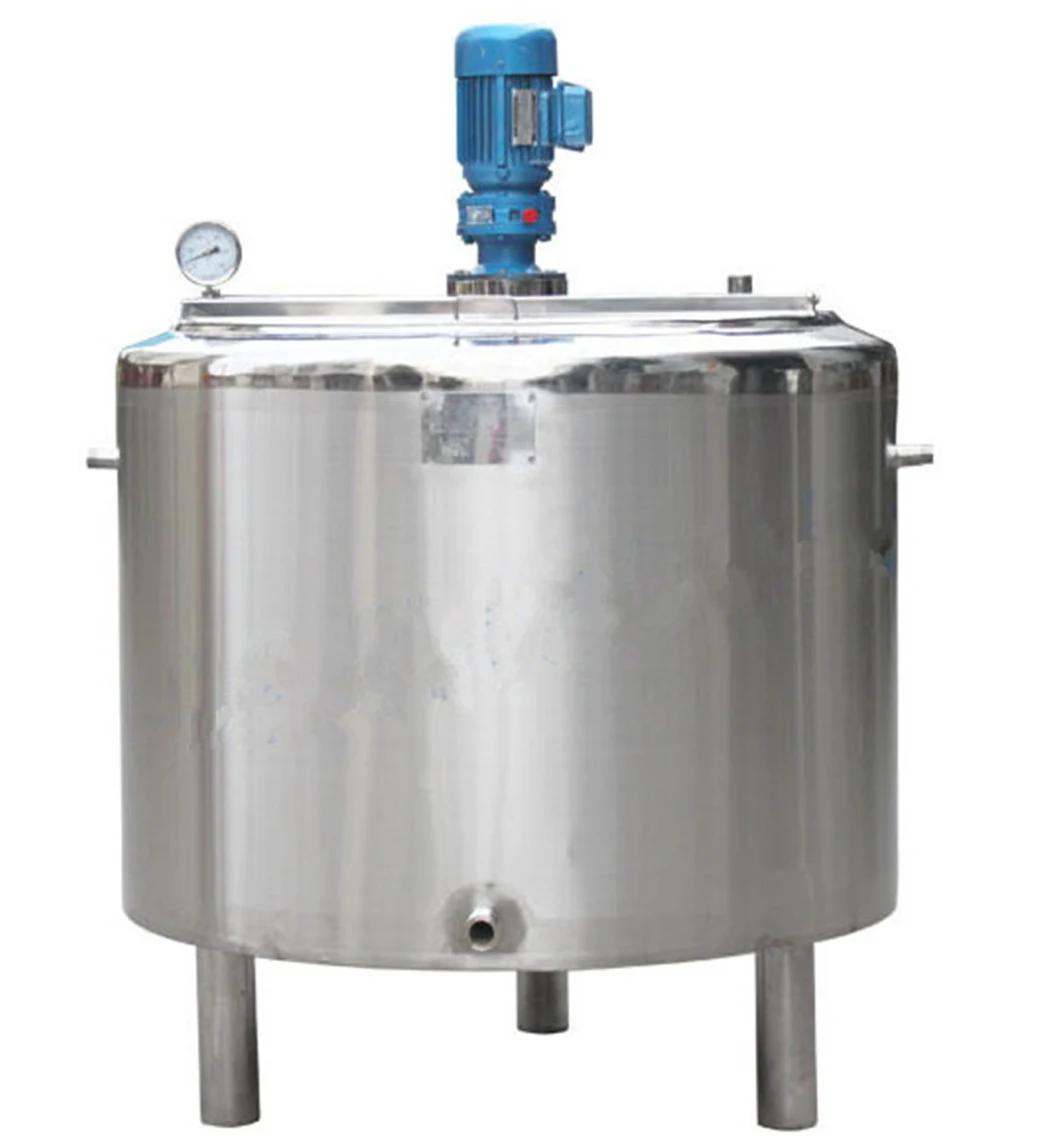

Electric heating and mixing tank



ELECTRIC HEATING MILK BATCH PASTEURIZER
200l, 300L, 400L ,500L, 600L JUICE PASTEURIZER, MILK PASTEURIZER.

TankCapacity(L)	200, SS304	300, SS304	500, SS304	1000,SS304
REV	36r/min	36r/min	36r/min	36r/min
Electric motor of the agitator	0.55KW,380v,50hz	0.75KW,380v,50hz	0.75KW,380v,50hz	1.1KW,380v,50hz
Electric heating tube power	15KW,380v,50hz	18KW,380v,50hz	24KW,380v,50hz	45KW,380v,50hz
Heating Area(M2)	0.9	1.1	1.9	4.5
Material Input/output(DN MM)	38	38	38	50
OUTSIDE DEMENSION(L*W*H)MM	900*900*1600	1000*1000*1500	1100*1100*1700	1400*1400*1750
GROSS WEIGHT(KGS)	150	200	300	450

 Newest electric double jacketed heating cable for tank
Heating by Electric(380V, 50Hz)
* Type: With Jacket and insulation
* Internal shell thickness: 3 mm
* Jacket thickness: 3 mm
* Outer shell thickness: 1.5 mm

* Appearance: Ellipsoidal head top and down
* Accessories:
(1)Lid able to open on the top
(2) Charging/discharging hole at the bottom,
(3) Heat transfer oils (water) Inlet/outlet,
(4) Temperature probe,
(5) CIP cleaning ball,
(6) Heating tube, (7) Electric cabinet, (8) Reduction gears, (9) Rack & blender etc. (10)The electric motor(2.2KW, 380V, 50Hz)




Milk Pasteurizer Fermentation Tank Mixing Machine Cooling Tank Jacketed Tank
