Good Quality Candy Pillow Wrapping Machine

Shanghai Target Industry Co., Ltd.
  • Certification：CE, ISO9001
  • Application：Candy
  • Customized：Customized
  • Packing Speed：200-1000 (PCS,Min)
  • Packing Size：(L)=10-55 Mm:; (W)=10-30 Mm; (H)=4-25mm
  • Film Width：≤180mm

Base Info

  • Model NO.：PTP1200
  • Demension (L*W*H)：3200*1200*1500mm
  • Total Power：4.5 Kw
  • Voltage：380V,50Hz
  • Total Weight：900kg
  • Transport Package：Wooden Case
  • Specification：CE, ISO9001, CQC
  • Trademark：SHINWEI
  • Origin：China
  • HS Code：84382000
  • Production Capacity：20set,Month

Description

Basic Info.

Model NO. PTP1200 Demension (L*W*H) 3200*1200*1500mm Total Power 4.5 Kw Voltage 380V/50Hz Total Weight 900kg Transport Package Wooden Case Specification CE, ISO9001, CQC Trademark SHINWEI Origin China HS Code 84382000 Production Capacity 20set/Month

Product Description

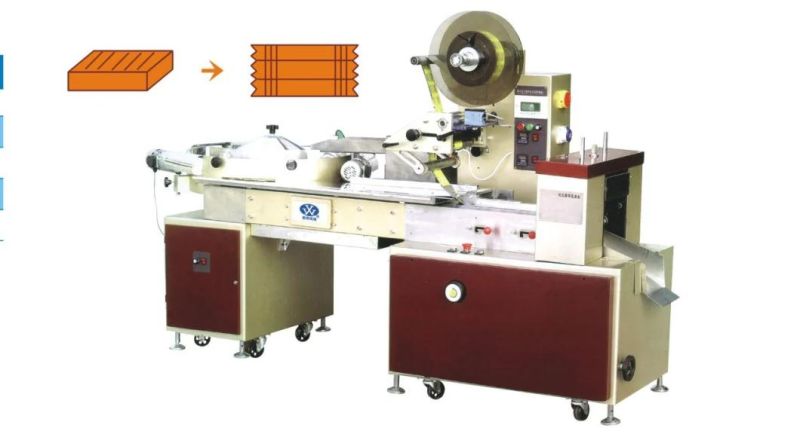

Good Quality Candy Pillow Wrapping Machine

Good Quality Candy Pillow Wrapping Machine

Product Advantage :
1.The key parts of machine are adopted of SS, in line with food QS and medicine GMP health requirements.
2.Controlled by dual frequency conversion, the cutting length of bag is following the length setting, saving time and film.
3.High sensitive electronic color eye tracing system. After setting the machine, there is no need to adjust by hand. The cutting position is accuracy, and the seal is firm and beautiful.
4.Temperature is controlled by PID, intelligence independently and steadily, which is suitable for various packing materials.
5.Counting automatically, packaging production counting is accuracy.
6.Machinery design and the convey system is simple and operation is more reliable which is more convenient to maintain..
7.The machine can be equipped with mixed gas, nitrogen, gusset device, pressing bar, brooming and production date system according to clients'packing requirements.
Product  technical of candy pillow wrapping machine
ModePTP1200
Packing speed200-1000 (pcs/min)
Packing size(L)=10-55 mm:;  (W)=10-30 mm;   (H)=4-25mm
Film width≤180mm
Demension (L*W*H)3200*1200*1500mm
Voltage380V/50Hz
Total power4.5 KW
Total weight900 kg

 ADVANTAGES:

1) Reliability, easy cleaning and maintenance

2) Accurate filling and simple changeover.

3) Servo-controlled accurate movement

4) Automatic belt tensioning


Packaging&Shipping

Wooden packing
1.Product production is completed, by the quality inspection department to check
2.After inspection qualified, clean for whole machine
3.Packing: a.Inside the machine put desiccant b.Add 6 cm thick foam plate around the machine,Then, winding stretch film for reinforcement, and combined with bubble wrap c.On wood packaging on the outside of the machine, then use metal reinforcement with steel
4.Container:according to different products for reinforcement

Our Service
After-sale service for abroad customers.

1. Free training of macine installion, operation and maintenance will be provided by our engineer.
2. Some spare parts will be sent with the machine for free. It is available to buy the parts from us forever at low price.
3. We will surpport customers after-service forever by call, email and video etc.
4. If necessary, our engineer is available to go to customer's factory for machine installion and adjustment
