• Model NO.：Wheat Skin Cleaning Brushing Machine
• Transport Package：Wooden Box
• Trademark：COYO
• Origin：China
• Production Capacity：50000PCS,Year

Basic Info.

Model NO. Wheat Skin Cleaning Brushing Machine Transport Package Wooden Box Trademark COYO Origin China Production Capacity 50000PCS/Year

Product Description



Product Description

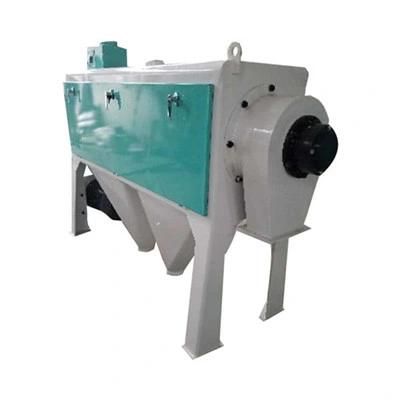

Grain brushing machine is an important cleaning equipment in flour machine, which is mainly used for cleaning wheat grain. Through continuous rotation and rubbing of grinding wheel inside the equipment, it can effectively remove the villi and cortex of wheat skin, and is widely used in wheat shoulder stone.



It can remove the impurities attached to the wheat epidermis, as well as the side by side mud, wheat grains eroded by diseases and insect pests, and wheat husk not removed completely, which plays a great role in improving the color of flour and reducing the ash content of flour.



At the same time, by adjusting the static speed of grinding wheel clearance, it can meet the needs of different customers and different materials, and remove impurities such as shoulder stones, mud, coal cinder, rat excrement and wheat surface fuzz, and also suitable for cleaning impurities in oil pressing, feed and wine making industries.



Feature



1. The frame is welded with good steel;



2. The main shaft adopts imported SKF Bearing, equipped with professional bearing seat, good sealing and dust-proof effect;



3. The grinding wheel is made of professional materials with good wear resistance and long service life;



4. The screen is carburized to highlight concave convex type and increase friction and wear resistance;



Technical Parameter


Model	Screen barrel diameter   (mm)	Screen barrel length   (mm)	Capacity   (t/h)	Power   (kw)	Weight(kg)	Size   (L×W×H)
FSML38	380	1100	3-8	7.5	500	1650×586×1520
FSML38×2	380	1100	6-16	7.5×2	980	1650×1172×1520
FSML45	450	1300	5-13	11	630	1840×630×1520
FSML45×2	450	1300	10-26	11×2	1260	1840×1260×1520
