Medium and Large Fish Dryer, Industrial Fruit, Vegetable and Fish Drying Machine, Small ...
Guangzhou Sibiono Drying Equipment Co., Ltd.- After-sales Service：Online Technical Support and Installation Support
- Warranty：1 Year
- Type：Dryer
- Voltage：380V
- Power：10.4 Kw
- Customized：Customized
Base Info
- Model NO.：DH-K06
- Function：Cooling+Drying+Dehumidity
- Heating Capacity：26 Kw
- Cooling Capacity：20 Kw
- Dehydration Rate：20 L,H
- Cop：4.3
- Compressor Brand：Copeland (USA)
- Drying Capacity：750-1000 Kg,Batch
- Certification：CE, CCC, ISO
- Transport Package：Plywood
- Specification：5000*3000*2300 mm
- Trademark：SIBIONO
- Origin：China
- HS Code：8419310000
- Production Capacity：100 Set , Month
Description
What is SIBIONO Heat Pump Dryer?
The heat pump dryer is a new type of heat lifting device, which is mainly used in the drying and dehydration process of food, medicinal materials, wood, agricultural and sideline products, and industrial products.
Commercial heat pump drying system is mainly composed of Heat Pump and drying chamber. The energy efficiency ratio (COP) of our equipment can reach the standard of 3.5-4.0. It is a very energy-saving clothes dryer.
Differences from other dryers:
1. Compare with other dryers
The operating cost of the SIBIONO Heat Pump Dryer is 30% of the electric heating dryer, 40% of the fuel dryer, and 60% of the coal dryer.
2. Design determines high performance
The heat pump dryer is a new type of drying device that mainly uses the reverse Carnot principle. The gas Freon is pressurized by the compressor to become high temperature and high pressure gas (temperature up to 100 ºC), which enters the heat exchanger (condenser) on the indoor side. The refrigerant is condensed and liquefied to release high-temperature heat to heat the air in the drying room.
Advantages of SIBIONO drying system:
1) High efficiency and power saving:
Only condensed water is discharged during the drying process, and there is almost no energy loss, so the efficiency is very high, and the energy efficiency ratio (COP) is 1:4;
2) Operating environment:
The drying effect can be kept consistent throughout the year and in any climate to ensure that it can be operated throughout the year;
3)Environmental protection and sanitation:
Outside dust cannot enter, it is safe and sanitary, and meets the sanitation needs of various items;
4) Nutrient retention:
Because the drying process is closed-loop and medium-low temperature drying, the drying effect can effectively retain food nutrients;
5) Uniform drying:
The Drying Room adopts a closed loop method with strong convection circulation of hot air, so that the food in the Drying Room is evenly heated;
6) Simple operation:
Using touch screen computer version control, one-key configuration of the drying plan, automatic completion of the drying operation;
7) Low labor:
The food is placed on ventilated trays, and the heating air is circulated. The drying process does not need to be turned, saving labor costs;
8) Flexible customization:
The board room and shelves are simple and flexible, and the drying capacity is large. Any number of hosts can be used side by side, and it can be designed as a board room or assembly line.

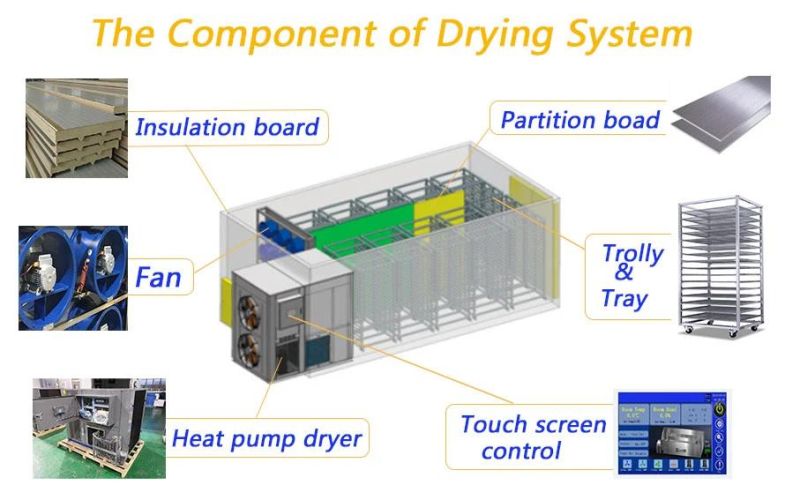

Component of SIBIONO drying system: SIBIONO heat pump fruit dryer is mainly composed of heat pump dryer and drying chamber.
Equipped with PLC intelligent control system, which can accurately control the temperature of the fruit drying room.

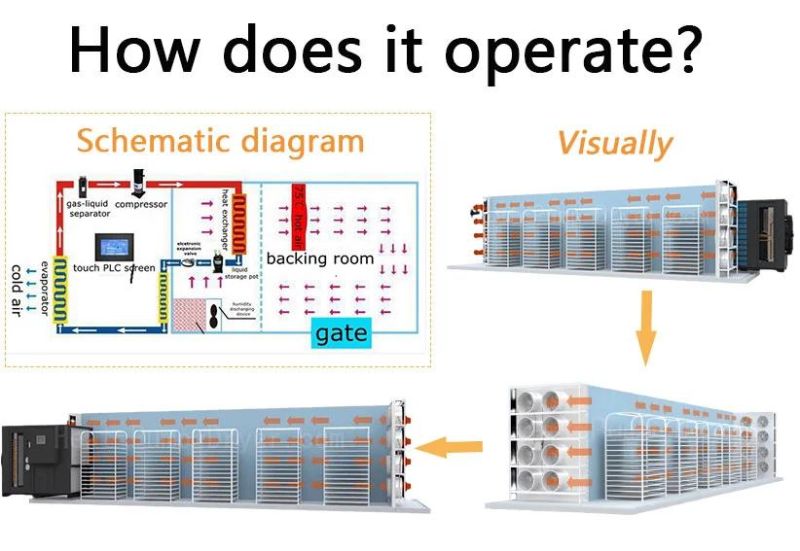

Working process:1) During the fruit drying process, the high temperature and high pressure gas produced by the compressor enters the condenser
to release heat, and the heat is sent into the room through the circulating fan. The temperature will reach 10-80°C.
2) The air at outdoor ambient temperature is heated by the heat recovery device before entering the drying room, and then
enters the drying room after heating. This design can save 60-70% of energy consumption and ensure the temperature
stability of the fruit drying room.
3) The hot air is convectively circulated in the entire fruit drying room through a large air volume circulating fan to make the
drying more even and thorough.
4) The fruit delivery cart is made of galvanized square material or stainless steel, which is resistant to high temperatures.

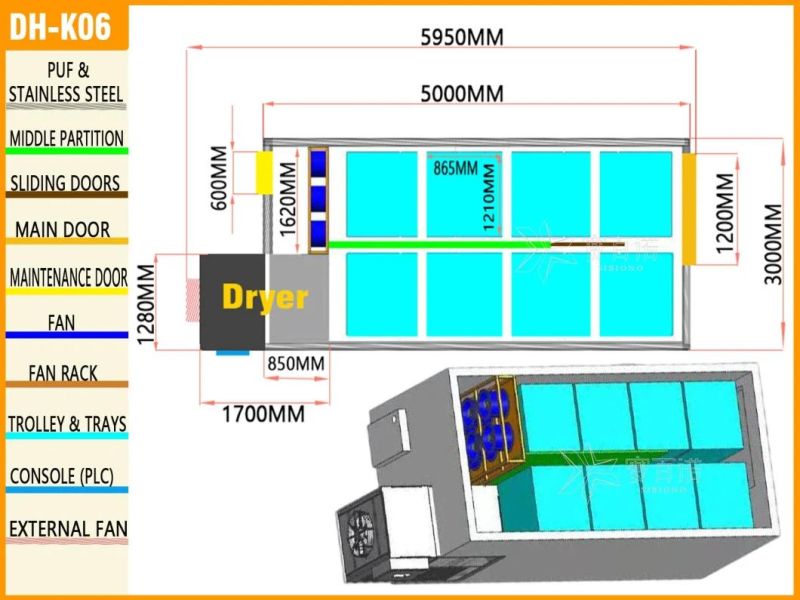

Introduction of DH-K06
Material that can be dried:

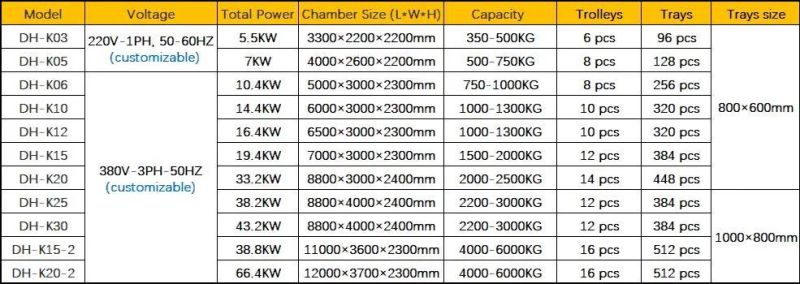

Shopping guide: You can choose the model according to your actual needs.

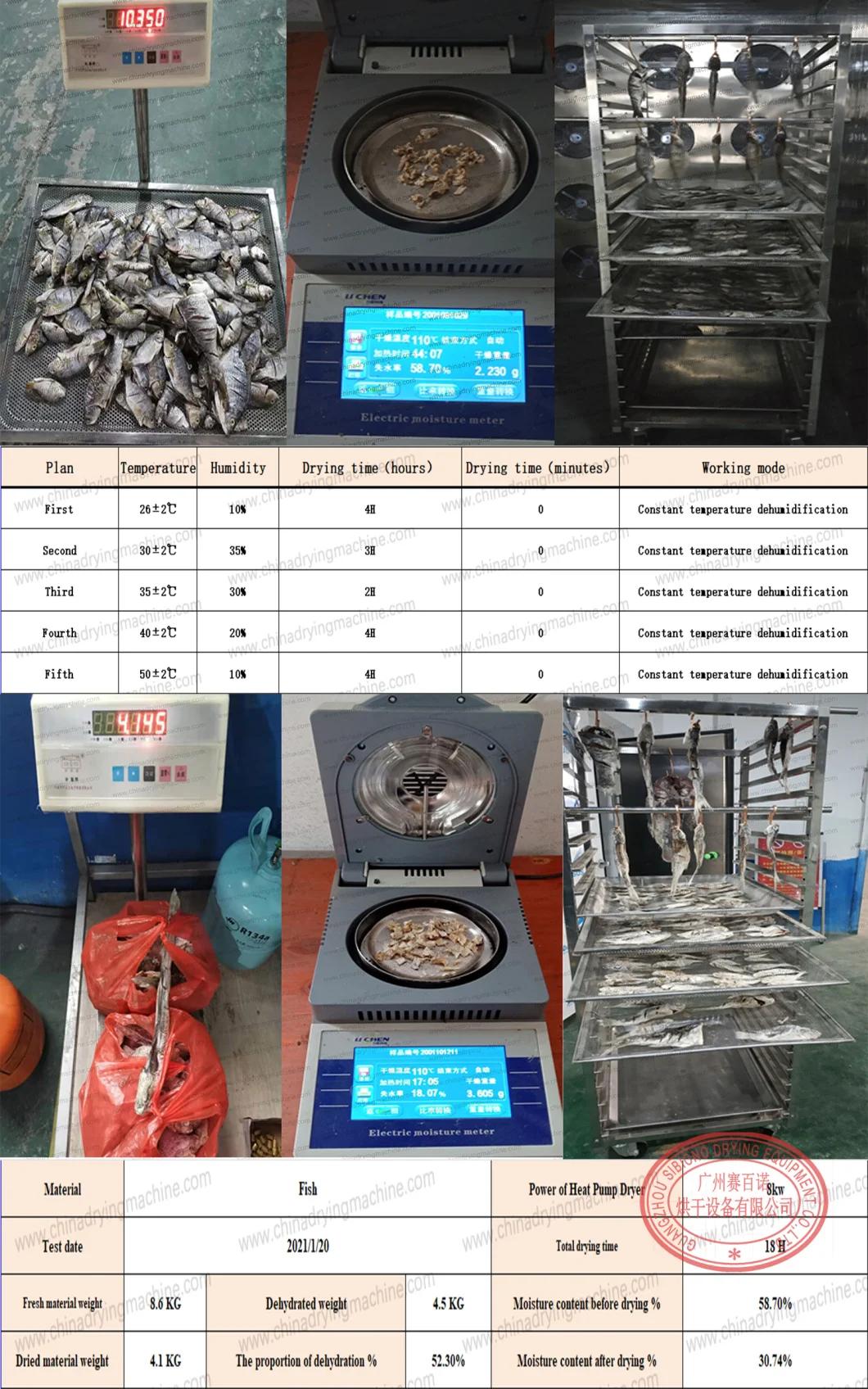

Fish Drying Test Report

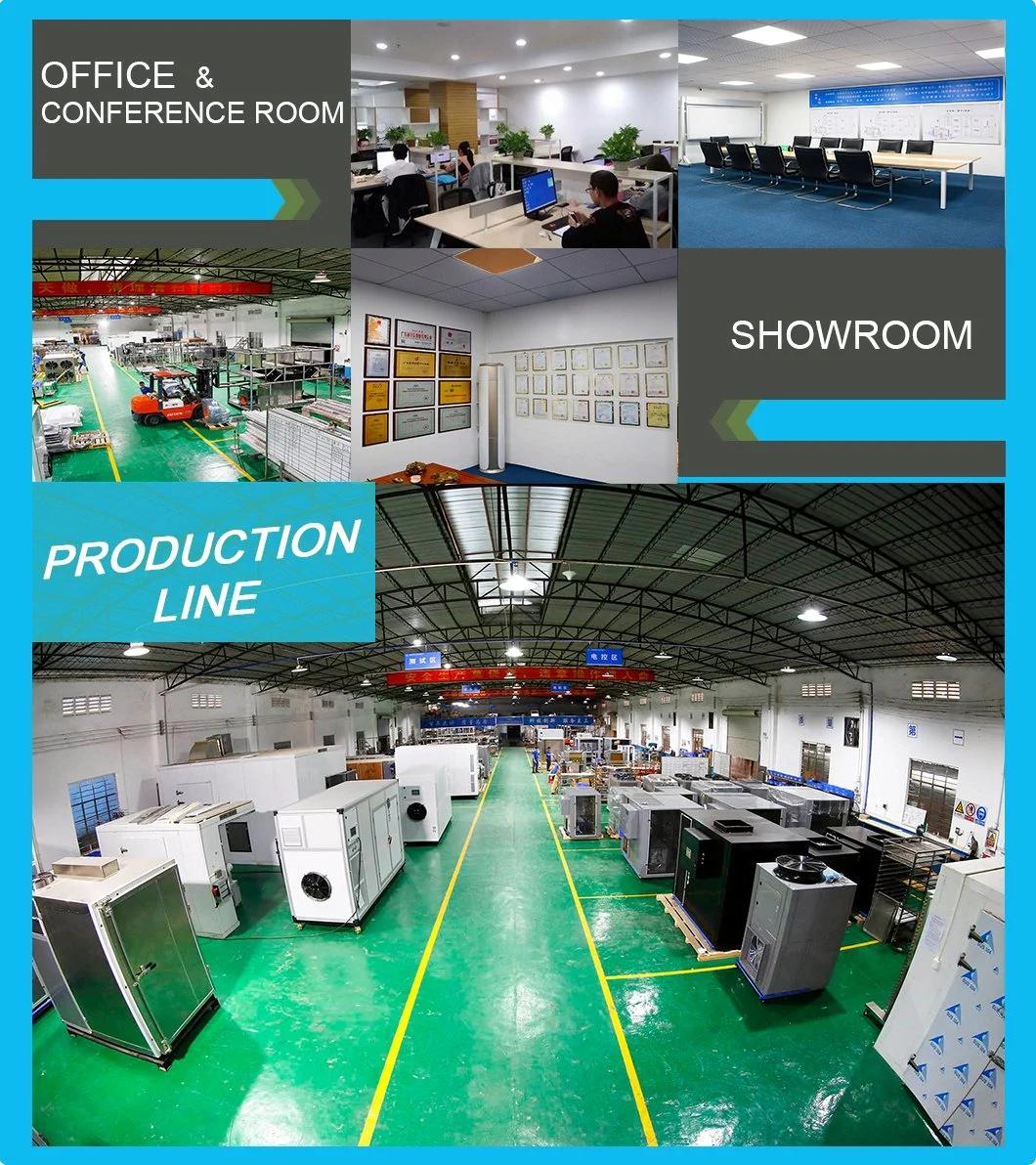

Introduction of our company: We are the main professional factory that develops and exports heat pump dryers.
Our company has five years of production and sales experience. Our heat pump dryers are successfully sold to the United States, Canada, Vietnam, Myanmar, Taiwan, India, Thailand, Kenya, Indonesia, Sri Lanka, Pakistan, South Africa, Madagascar, Estonia, Australia, Nigeria, Georgia, Uzbekistan, Malaysia, Colombia and so on.
Besides, we have a factory of 8,000 square meters, a professional team of 60 people, and CE, ISO, and other certifications.
Packaging & delivery
Service provided:A. Technical service 1. We calculate the capacity and recommend the best models.
2. We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation. 3. We supply the spare parts and technical support in & after the warranty time.
4. We supply the training course to your workers at our factory if you need.
B. After-sales service 1. Technical support for your installation, operation and maintenance.
2. One year's warranty, and you can pay for extended warranty.
3. Spare parts and technical support at most economic prices after the warranty.
