• Model NO.：DA-340
• Voltage：380V,415V
• Material：304 Stainless Steel
• Capacity：150-200kg
• Weight：800kg
• Size：2000*1100*1300mm
• Candy Thickness：4-8mm
• Delivery Time：45days
• Package：Container
• Electric Parts：Schneider
• Keyword：Fruit Candy ,Hard Candy
• Cooling Type：Air Blower
• Certificate：CE,SGS
• Spare Parts：Gurantee One Year
• After Service：Online Supported
• Cooking：Steam ,Gas,Electricity
• Transport Package：Woodern Box with Plastic Film
• Specification：304stainless steel
• Trademark：DAM
• Origin：China
• HS Code：84382000
• Production Capacity：200set,Year

Basic Info.

Model NO. DA-340 Voltage 380V/415V Material 304 Stainless Steel Capacity 150-200kg Weight 800kg Size 2000*1100*1300mm Candy Thickness 4-8mm Delivery Time 45days Package Container Electric Parts Schneider Keyword Fruit Candy /Hard Candy Cooling Type Air Blower Certificate CE/SGS Spare Parts Gurantee One Year After Service Online Supported Cooking Steam /Gas/Electricity Transport Package Woodern Box with Plastic Film Specification 304stainless steel Trademark DAM Origin China HS Code 84382000 Production Capacity 200set/Year

Product Description

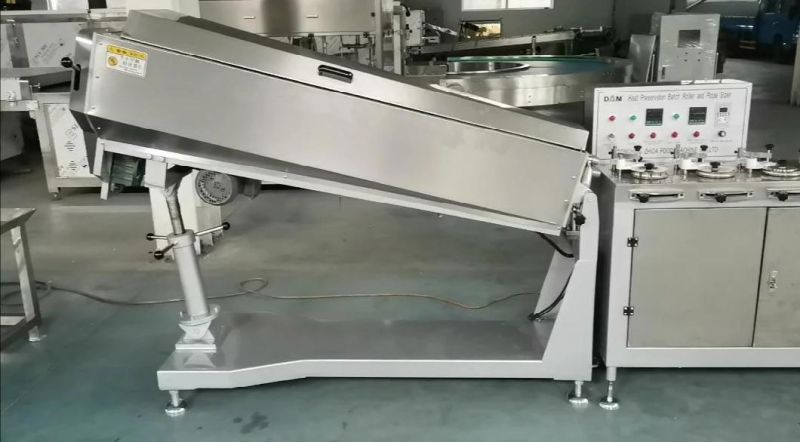

Name: Compound Cooling Roller .
Application:
1.This machine is applicable to product hard candy, milk candy, filling creamy candy etc, constant temperature control, automatic lift to adapt to the different production speed requirements, have two characteristic: heavy volume sugar, strong continuous production ability, suitable for all kinds of
complex process candy production.
2.The speed of out off sugar can be controlled by motor button.
3.Below of batch roller have a electric heating and keeping warm system
4.Four rollers of batch roller are 304stainless steel dedicated design mould pressing and welding.


Dimension	2200×700×1400 mm
Voltage	380 V
Power	3.15KW
Weight	500 kg

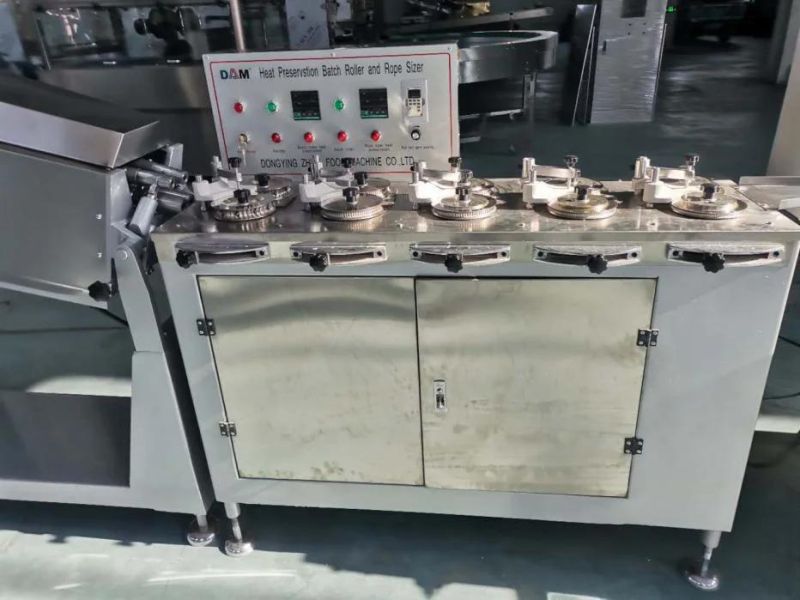

Rope Sizer :
Application:
1.According to different candy size,have four round wheels and five round wheels.
2.Whole machine under round wheels have electric heating and keeping warm system,can reach the temperature when we operate.
3.Under round wheels have double closed bearing,to prevent candy into machine.
4.The speed of this machine can adjust,can match with before and after machine.
5.Round wheels can remove,clean,easy to install.

Dimension	1400*700*1300mm
Voltage	380 V
Power	2KW
Weight	500 kg

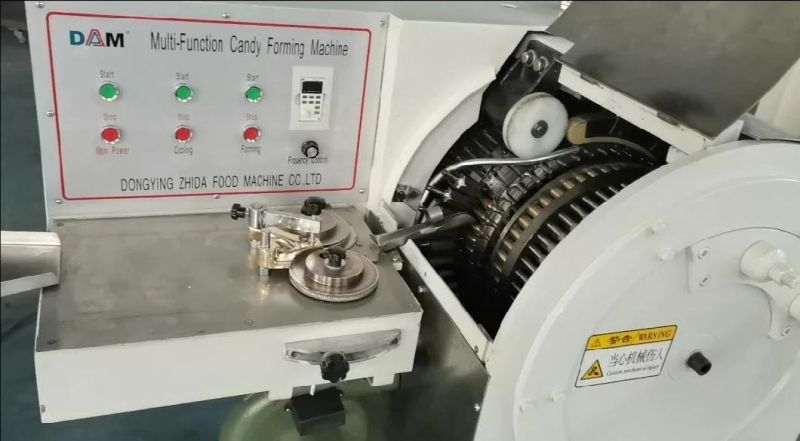

Die forming machine:

Characteristic: This machine is compact, good performance, easy operation , high production efficiency.Can use different shape and size candy moulds,die forming all  kinds of candies

Dimension	1500*1100*1200mm
Voltage	380V/50HZ
Power	2.2KW
Weight	650 kg

Products produce :

Packing &Shipping

         1.Plsatic Film with Woodern Box Covered        2.Reinforce with metal wire and wood board in container        3.Delivery time: 90 working days or depend on Custom

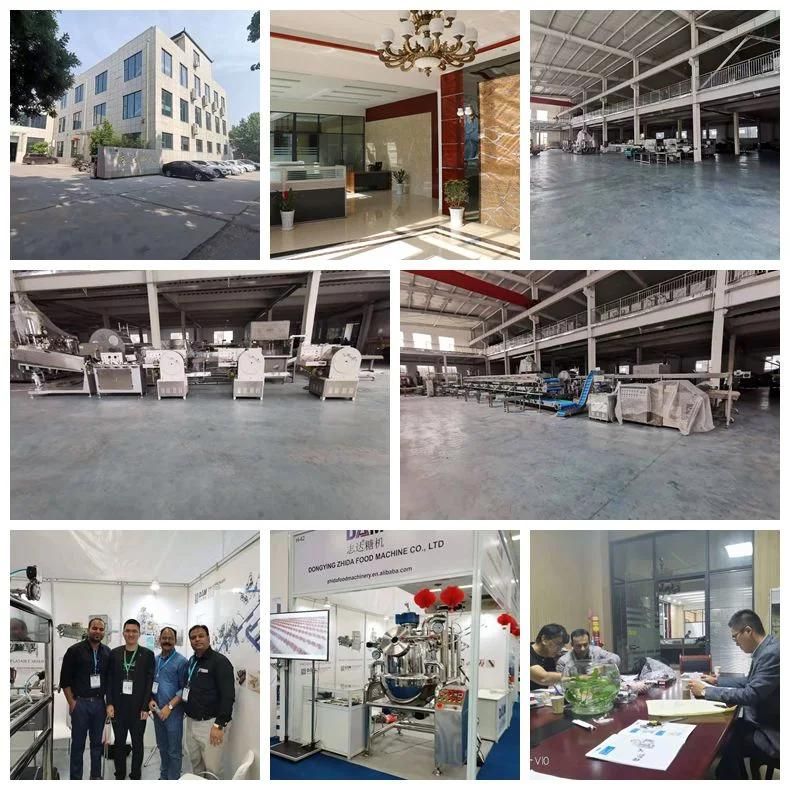

Factory&Exhibition
 Factory Patent

FAQ
1.What is your company advantage ?
We have own factory ,designed and manufacture by ourself. Near the Qingdao port, it is very convinent for exporting . Cheap than European machine, short delivery time than Germany machine.
2.What is the payment terms?
T/T or L/C , 30% advance deposit ,70% before loading .
3.Where is the factroy location?
 Dongying City ,Shandong Province, China, North of the China.4.Could you please send me your best price?Before quoting, please kindly consult us and provide a.The type of confectionery you will produce.  b.The size of your product, your expected capacity for the line or machine
