• Model NO.：ZKZB-125,200,330,420
• Bowl Bearing：Japan NSK
• Knife Bearing：SKF
• Motor：Siemens Special Frequency Conversion Motor
• Frequency Changer：Yaskawa
• Electric Parts：ABB
• Belt：Japan Bando
• Knife：Moon Knife or Folded Knife as Need
• Material：SUS 304 Stainless Steel Material
• Touch Screen：Delta
• Transport Package：Wooden Case
• Specification：international
• Trademark：YC
• Origin：Hebei
• HS Code：84385000
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. ZKZB-125/200/330/420 Bowl Bearing Japan NSK Knife Bearing SKF Motor Siemens Special Frequency Conversion Motor Frequency Changer Yaskawa Electric Parts ABB Belt Japan Bando Knife Moon Knife or Folded Knife as Need Material SUS 304 Stainless Steel Material Touch Screen Delta Transport Package Wooden Case Specification international Trademark YC Origin Hebei HS Code 84385000 Production Capacity 100 Sets Per Month

Product Description

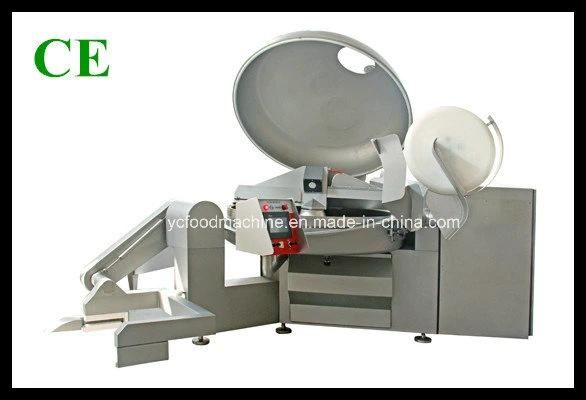

Busch Pump Vacuum Meat Bowl Cutter



YC Mechanism Vacuum Cutter Technology is founded on practical development with many years of experiences. Modern, high-capacity machine for industrial production of all types of top quality sausages, such as dry sausages, boiled sausages, cooked sausages and canned goods. We are known throughout the meat industry for the quality and reliability of our range of bowl cutters, manufacturing a few Models from 125 L to 420 L.

Advantages:
The main parts of machine we using good quality famouse brand.

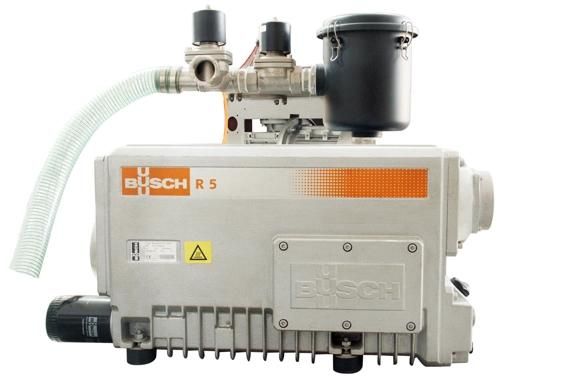

1)vacuum pump is BUSCH;
2)bearing is JAPAN NSK with diameter 630mm pressure model, the low cost machine using bearing is
Tapered roller bearing with diameter 300mm;
3)motor is SIEMENS Special frequency conversion motor;

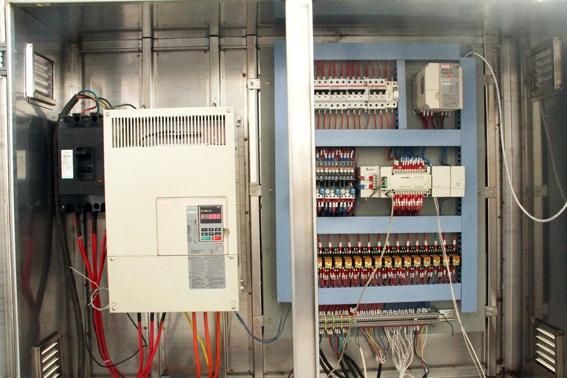

4)Frequency Changer is YASKAWA  with Vector constant torque model,this good Frequency Changer can make sure the state and speed of knife ,
low cost machine using common Frequency changer,if meat is thick the speed of knife will be low 30-40%;
5)electric parts is using Swiss ABB ;SKF bearing so on.


Due to excellent coordination of cutting speeds, bowl speeds and form of knives, we offer the technology for processing large pieces of meat. Saving time isn't the only advantage of using our Vacuum bowl cutter to emulsify, coarse chop or fine chop products. Not only is the grind/mix/regrind process time consuming, but you are missing an opportunity to extract the maximum amount of protein from your meat mixture so you can produce high-quality, value-added products. Maximum protein extraction translates to increased binding and weight retention, which equals less cookout and increased yields.


Model	Volume (L)	Cutting speed(r/min)	Pot Speed(r/min)	Discharger speed (r/min)	Power (KW)	Cutter Quantity	Rated voltage	Vacuum Level
ZKZB-125	125	300~4200	0~10	Stepless speed(available upon request)	35.2	6	380	0~-0.085
ZKZB-200	200	400~4000	0~10	Stepless speed(available upon request)	86.4	6	380	0~-0.085
ZKZB-330	330	360~3600	0~6	Stepless speed(available upon request)	102.4	6	380	0~-0.085
ZKZB-420	420	360~3600	0~6	Stepless speed(available upon request)	144.4	6	380	0~-0.085

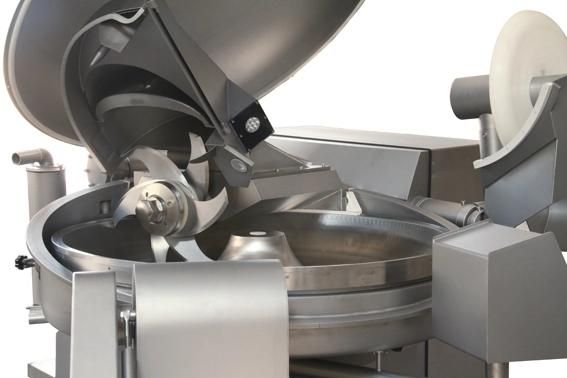

High-graded SUS 304 stainless steel construction with 6 blade knife-headed Cutter.
 Smooth surfaces giving the Cutter most sanitary design for easy and fast clean-up.
 Innovative axle shaft design.
 Automatic water feeding system (optional).
 Superior quality solid stainless steel bowl attached with large diameter bearings & guarantees a smooth Vibration-free cutting.
 Touch-Screen Monitor System (All movements - Loading/Unloading, Bowl cover, Knives & Bowl Speed, Vacuum system, Batch No, Time of process, Products temperature, Volume of water added, Fault diagnostics) by touch of a finger on Coloured LCD display.
 Designed with observation windows and material filling hole.




2.OUR COMPANY
We produce meat machines 30 years,boss is an professional enginner ,we have customers  using our whole line machines in DUBAI and other countrys.
