• Model NO.：JMJ20
• Application：Candy, Chocolate, Popcorn, Chips, Biscuit, Donut
• Customized：Customized
• Model：Jmj20, Jmj40, Jmj500, Jmj1000, Jmj2000, Jmj3000
• Usage：Chocolate Refining and Conching
• Capacity：20kg, 40kg, 500kg, 1000kg, 2000kg, 3000kg
• Fineness：20-25μm
• Grinding Time：7-24h
• Motor Power：1.5-55kw
• Voltage：380V
• Weight：320-7000kg
• Keywords：Chocolate Making Machine
• Transport Package：Wooden Package
• Specification：200; 1860; 1250
• Trademark：Gusu
• Origin：Suzhou Jiangsu, China
• HS Code：8438200000
• Production Capacity：5000 Sets Per Month

Basic Info.

Model NO. JMJ20 Application Candy, Chocolate, Popcorn, Chips, Biscuit, Donut Customized Customized Model Jmj20, Jmj40, Jmj500, Jmj1000, Jmj2000, Jmj3000 Usage Chocolate Refining and Conching Capacity 20kg, 40kg, 500kg, 1000kg, 2000kg, 3000kg Fineness 20-25μm Grinding Time 7-24h Motor Power 1.5-55kw Voltage 380V Weight 320-7000kg Keywords Chocolate Making Machine Transport Package Wooden Package Specification 200; 1860; 1250 Trademark Gusu Origin Suzhou Jiangsu, China HS Code 8438200000 Production Capacity 5000 Sets Per Month

Product Description

ISO certification 2018 hot sale factory directly sell Chocolate concheProduct Description

Chocolate conches are used for producing high-quality chocolate products. The ingredients are ground into very small particles, producing a smooth, luxurious texture.



The machine is fitted with its own extracting unit and the delivery end is fitted with a sampling valve and take off valve. It can be fitted with a shear as an extra to work with very thick mass - products as low as 21% fat content if required.



Once all of the ingredients have been loaded into the conche and it is turned on, the grinding bars begin to rotate and break down the ingredients into particles so small they are measured in microns, giving the produced chocolate a much smoother texture.



During the conching process the ingredients are homogenised thoroughly to produce a quality product with a very fine and smooth texture.


1. Specification Data

A. Machiney Capacity(kg): 20-3000kg

B. Main Drive Motor (kw): 1.5-55kw

C. Dimmension: See table below

D. Fineness(μm): 20-25

E. Grinding Time(h): 18-24

F: Weight(kg): 320-7000

Model	Capacity(L)	Fineness(μm)	Mill Time(h)	Motor Power(KW)	N.W.(KG)	Overall Size(mm)
JMJ3000	3000	20-25	18-24	55	7000	4120*1920*2170
JMJ2000	2000	20-25	16-20	37	5300	2990*1920*2200
JMJ1000	1000	20-25	14-20	22	3700	2750*1500*1800
JMJ500	500	20-25	14-20	15	2500	2500*1300*1495
JMJ40	40	20-25	7-9	2.2	400	1100*630*1090
JMJ20	20	20-25	7-9	1.5	260	1030*560*1000

2.Benefits
-Consistent product quality.
-Simple, fully automatic operation.
-Requires a minimal amount of space, no foundations required.
-Low energy consumption.
-Very low maintenance costs.
-Extremely low wear.
-Very flexible in terms of recipes and product composition.
-Fast payback time.

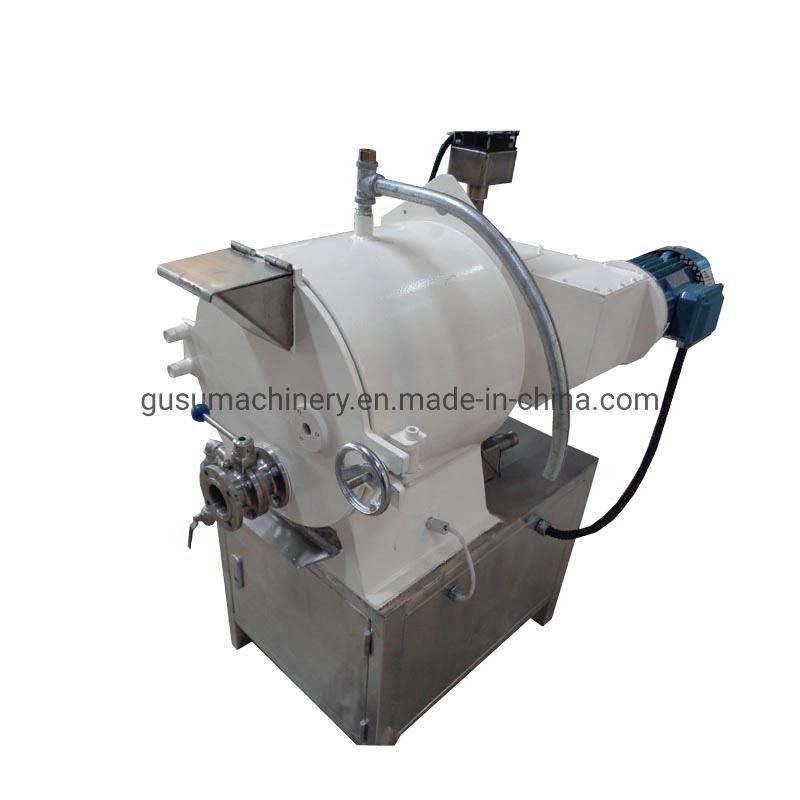

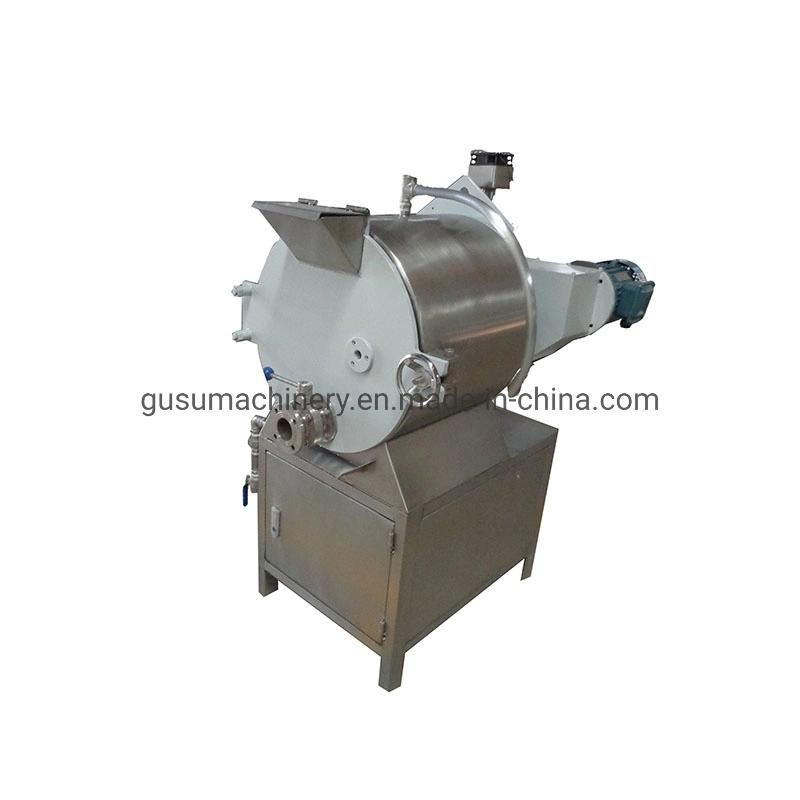

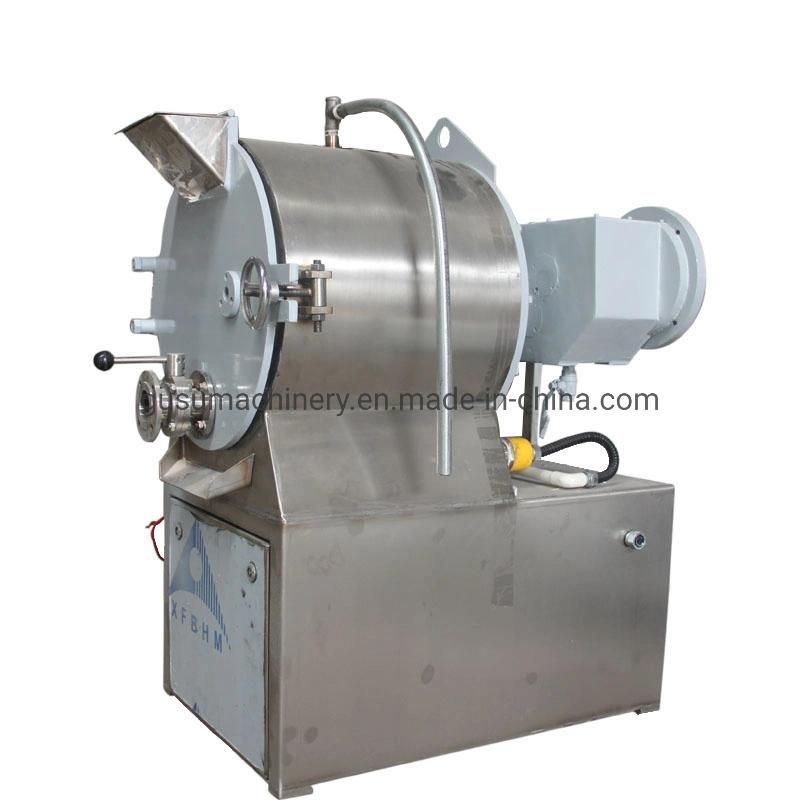

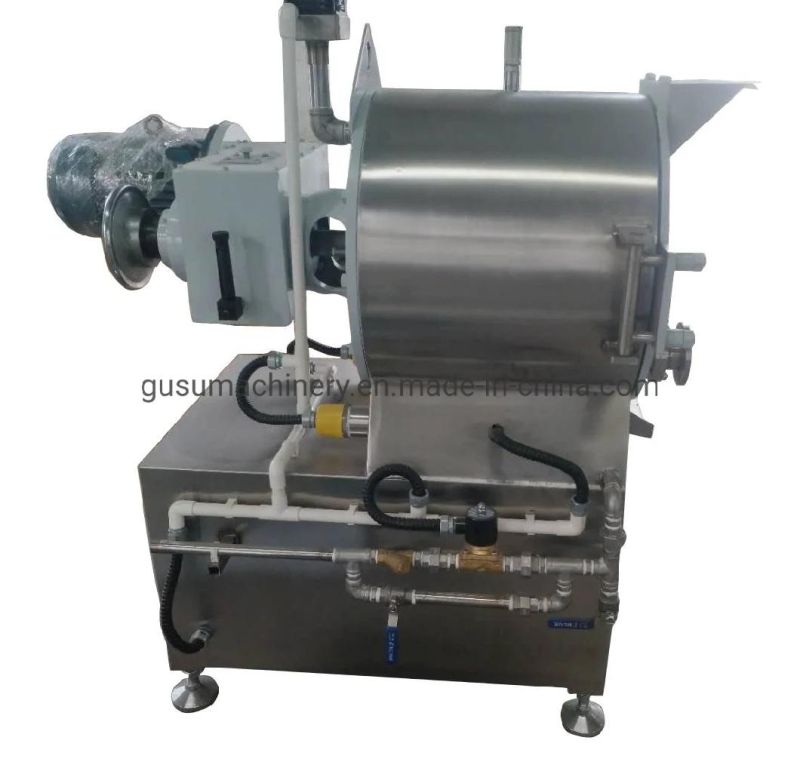

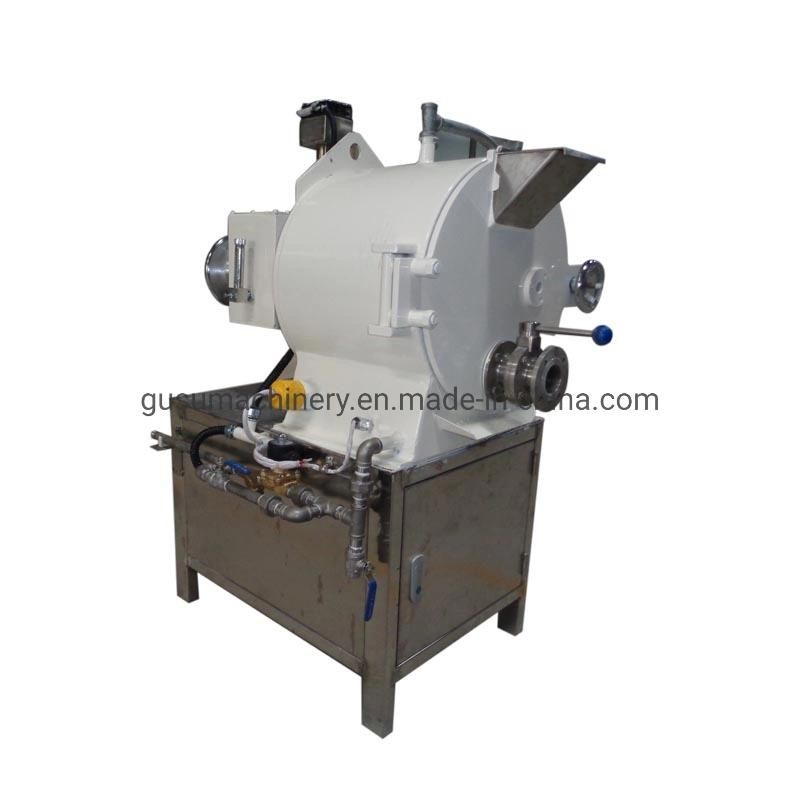

3.Photoes of chocolate conches

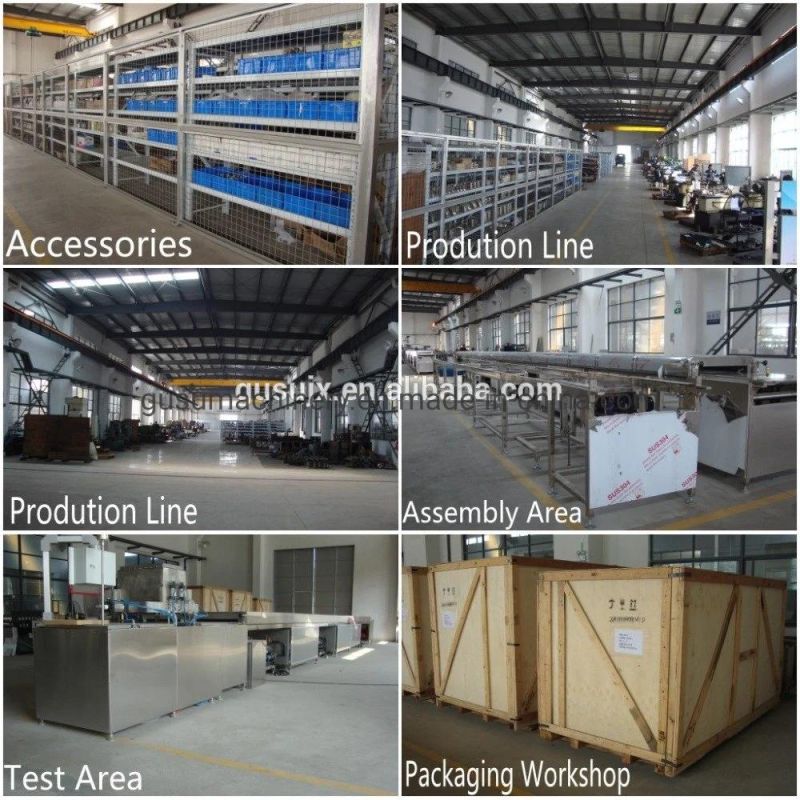

Factory

 Our Services

1. How about your quality?

 (1)We have been specialized in chocolate machines for more than 49 years (1969).

 (2)We have strict quality  inspect 12 hours' working status of all the machines before delivering to make sure the quality.



2.How about your after-sale service and warranty period?

(1)We provide one-stop installation (all fees including visa , Transportation, accomdation will be afforded by buyer , an USD 50/day installation fee should also be paid .

(2) Warranty period: 12 months after delivery.

(3) We will provide the replacement parts for free due to quality problems underproper operation within warranty period.

(4) Afterwarranty period, we'll charge the replacement parts at cost price.

(5) We provide lifetime technical support for all the machines.



3. Where are your main markets?

After 49 years' development, our chocolate machines have been sold to over 60 countries worldwide , such as U.S.A, Turkey, Russia,Ukraine, Uzbekistan, India, Spain, Peru, Egypt, Poland, Indonesia,Thailand, Bangladesh, Estonia, Armenia, Belgium, Aman,  Saudiarabia, Croatia, Yugoslavia, Japan, Britain, Brazil etc

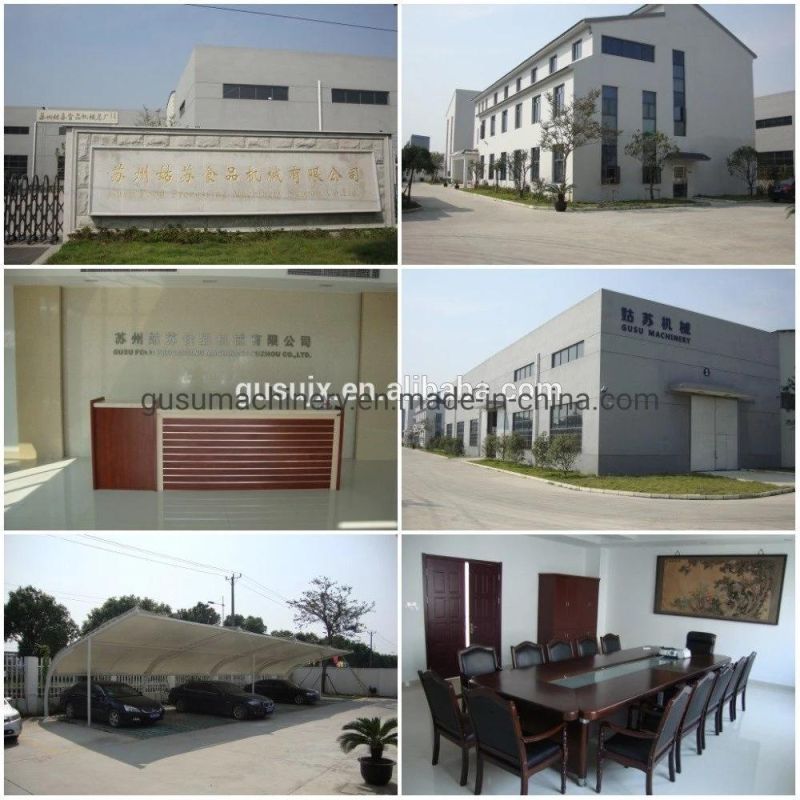

Company Information

Gusu Food Processing Machinery Suzhou Co.,Ltd., formerly known as Gusu General Works of Food Processing Machinery Suzhou, founded in 1969, is also the first enterprise making complete sets of chocolate machinery in China and honored in this industry as "the Mother of Chocolate in China".



Based in the China, Gusu has been successfully supplying chocolate machinery to confectionery manufacturers for over 40 years. We provide equipment and guidance on a wide range of industrial manufacturing processes.



Over 40 years, Gusu insists on a corporate philosophy of people-oriented, be loyal to customers and credit management, we aim at the first class equipments and technologies worldwide in the industry, we connected with the food industry, scientific and technological enterprises and universities to make continuous improvements, innovations and development of the products in order to provide better service to customers. Products are sold all over China and more than 80 countries and regions.



Gusu expanded and moved to the new factory in 2014, "Suzhou Food Engineering Research Center" was founded in our new factory.



The purpose of Gusu is daring to scale the heights and striving for industry pioneer, we will continuously work on scientific research and innovations, provide customers with better and better service. We warmly welcome customers worldwide to Gusu to conduct and consult.





FAQ

1 How to Order

1. Customer send us an inquiry.

2. Confirmmachine type, order quantity, price, lead time, payment term etc.

3.Our sales send the Proforma Invoice with company seal.

4. Customer make the payment for deposit and send us Bank receipt.

5. Inform the clients that we have got the payment,and will arrange the production according to yourrequest, inform the estimated time

6. Production products photos will send to you for approval.

7. Clients make payment for balance and Ship the goods .

8. Order is finished when you receive the goods and satisfy with them .

9. Feedback to us about Quality , Service, Market Feedback & Suggestion.And we can do better



2 About after-sell service

Usually machine guarantee time is about 1 year . Within guarantee time . Machine breaking caused bymachine itself design defect , we are responsible for it .we can provided free charge breaking part .If machine breaking caused by humane factor , user need take responsibility for it , we will providedtechnical support .



3 About goods shipping

We have long time working shipping forwarder. We can do our best to send machine to your port safe and quickly.



4 About our online Service

24 hours online to solve any problem .

Your email will be reply within 12 hours .

Your satisfy is our pursuit .sincerely hope our cooperation
