• Model NO.：SC-80
• Capacity：6000PCS,Day
• Material：Stainless Steel
• Warranty：1 Year
• Refrigeration：R22,R404,R410
• Compressor Brand：Tecumseh, Coopland, Panosonic
• Production Period：15-20minutes Per Batch
• Molds：Different Options or Customized
• Usage：Popsicle Making
• Power：2.2kw
• Weight：100kg
• Transport Package：Wooden Case
• Specification：800*500*1200mm
• Trademark：Yongchuang
• Origin：China
• HS Code：841869909
• Production Capacity：500set,Month

Basic Info.

Model NO. SC-80 Capacity 6000PCS/Day Material Stainless Steel Warranty 1 Year Refrigeration R22/R404/R410 Compressor Brand Tecumseh, Coopland, Panosonic Production Period 15-20minutes Per Batch Molds Different Options or Customized Usage Popsicle Making Power 2.2kw Weight 100kg Transport Package Wooden Case Specification 800*500*1200mm Trademark Yongchuang Origin China HS Code 841869909 Production Capacity 500set/Month

Product Description

Popsicle Machine with Different shape mould


Machine Introduce:

1. Adopts imported compressor such as Panosonic, Coopland, Tecumseh, thick copper pipe, special design of cooling system.
2. Fully made of 304# stainless steel, Environmentally friendly non-toxic frozen liquid.
3. High-strength design and thickening of the plate, make the machine particularly strong, even by severe impact or dumping will not affect its normal use.
4. Special motor to promote refrigerant heat exchange, Instead of traditional pump cooling at low temperatures and ordinary motor life is short.
5. Available to produce different flavors of ice, ice pops, ice bricks
6. The machine is equipped with a locked caster, easy to move, docked safety
7. With CE certificate.



Operation Step:

1. Adjust the machine. Make salty water as secondary refrigerant according with user manual. Fill water into ice moulds. Turn on the machine.

2. The machine needs 1 hours for the first time freezing. It can finish one batch every 15 minutes. After ice lolly is frozen, take out the ice lolly from the ice moulds, then freeze them quickly in freezer or it will melt.

3. Put the ice lolly moulds back into the machines. Fill lolly material in them and start the second batch.

4. You can also use packing machine to pack ice lollies into plastic bags.

Technical Parameters:

Model	Outside Size(mm)	Weight(kg)	Power(kw)	Cooling System	Refrigerant	Daily Production(PCS)
SC40/1	620*370*1150	70	1.6	Air/Water	R22	3000
SC80/2	760*480*1230	100	2.2	Air/Water	R22	6000
SC160/4	990*620*1230	120	3	Air/Water	R22	12000
SC240/6	1370*620*1230	150	3P	Air/Water	R22	18000
SC320/8	1750*620*1230	170	5	Air/Water	R22	24000
SC400/10	2110*620*1230	210	6.5	Air/Water	R22	30000
SC480/12	2500*620*1230	250	7.8	Air/Water	R22	36000
SC560/16	3340*620*1230	350	8.5	Air/Water	R22	36000

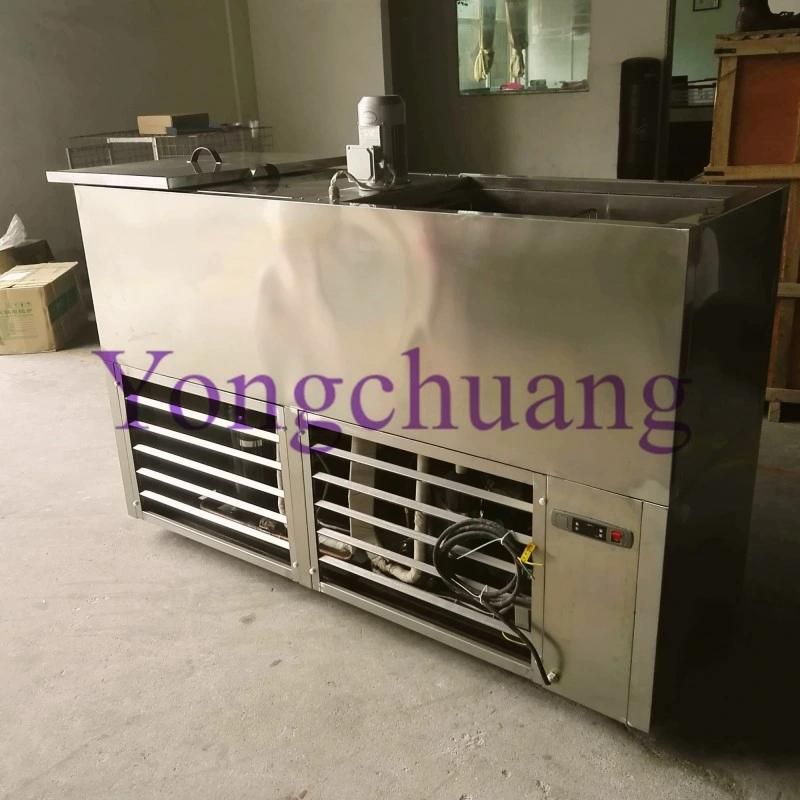

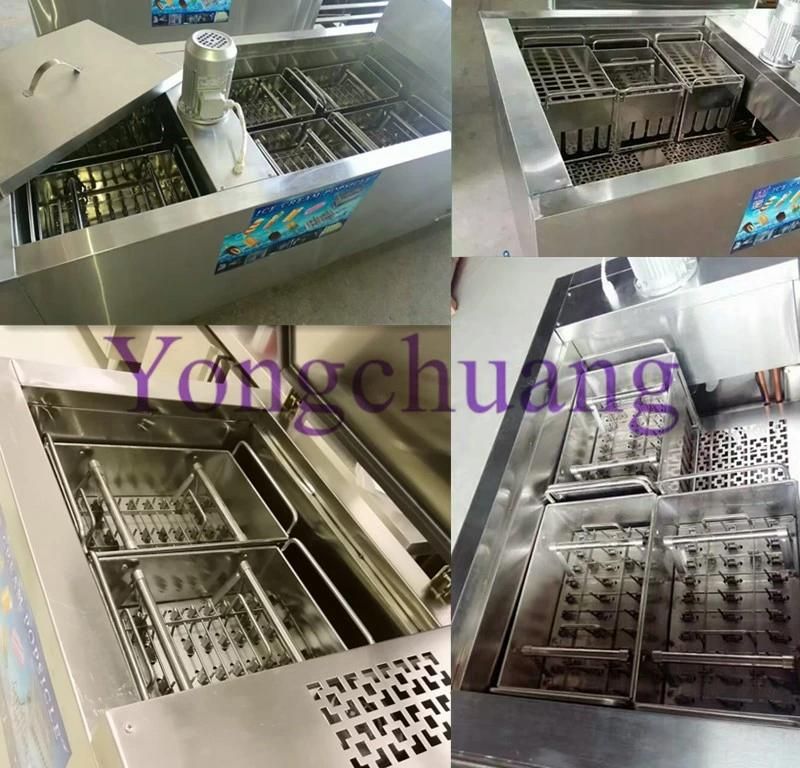

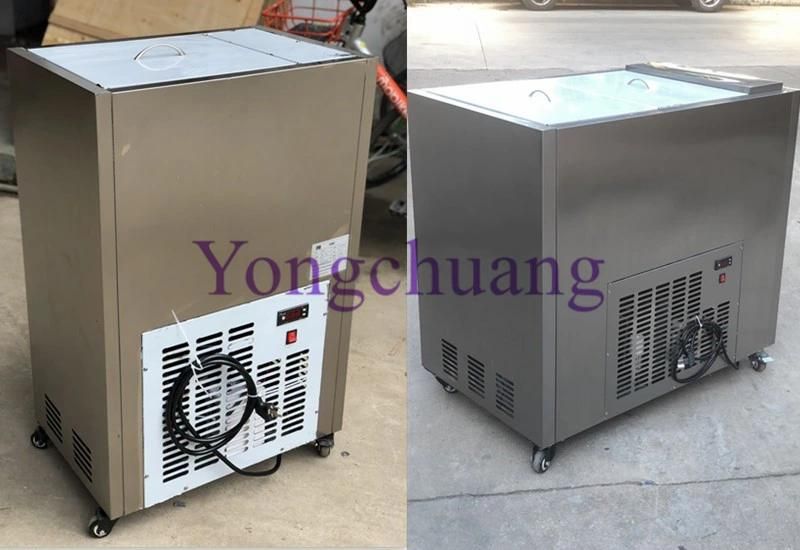

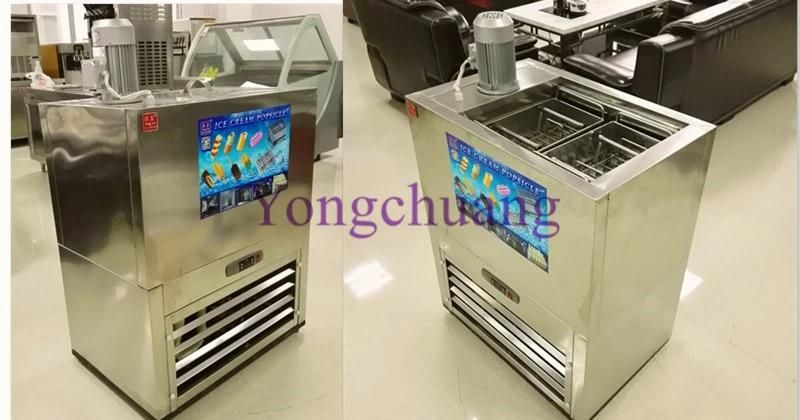

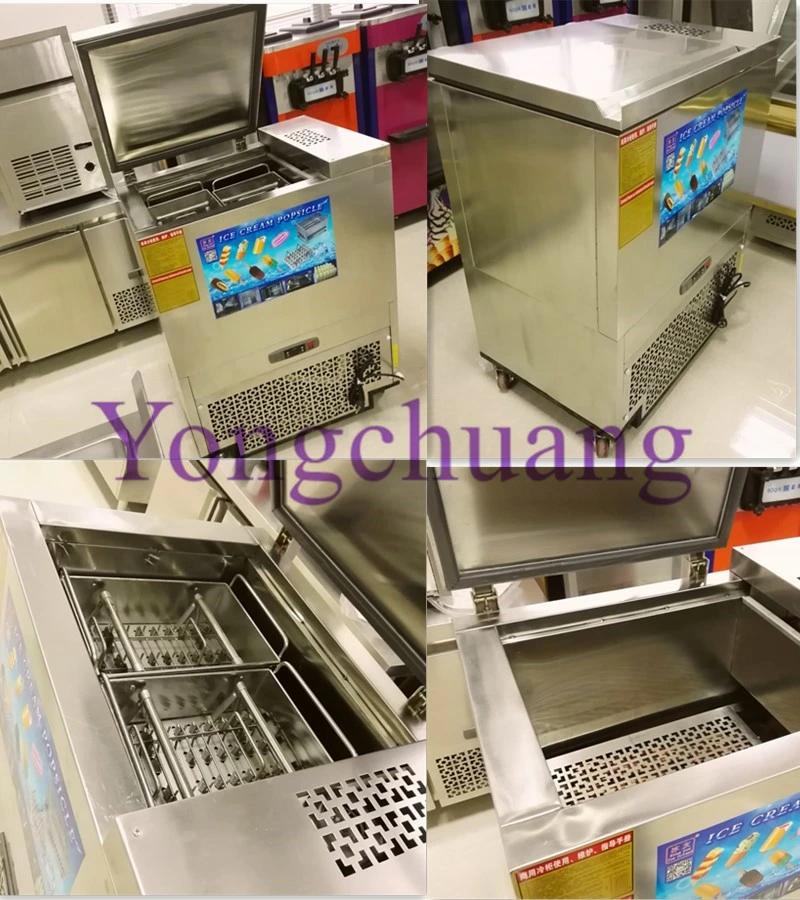

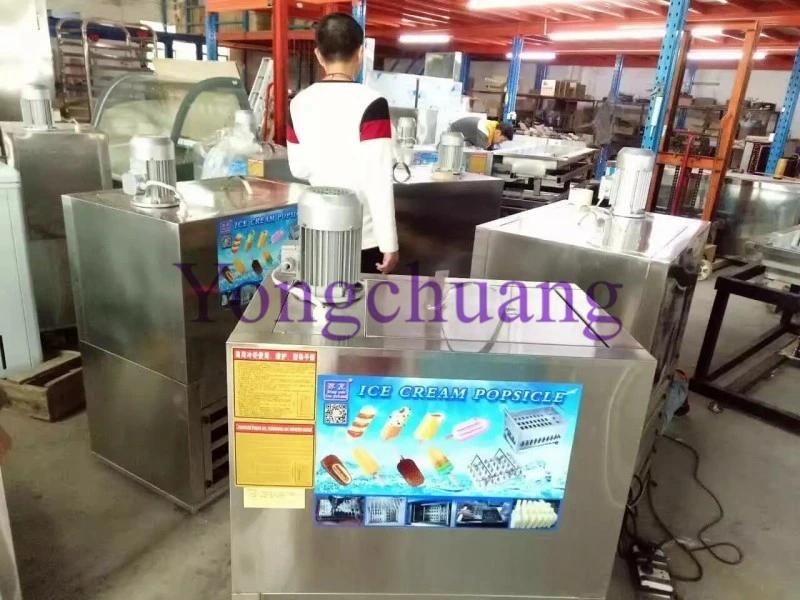

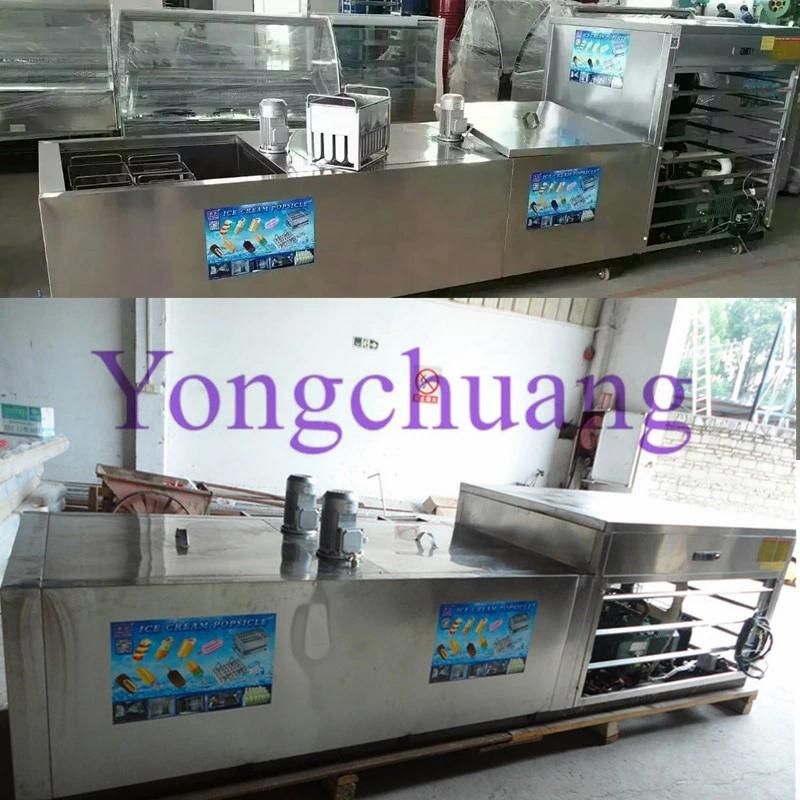

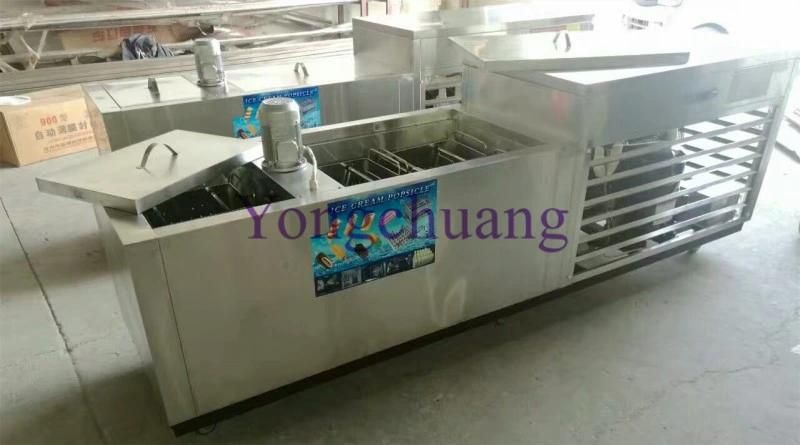

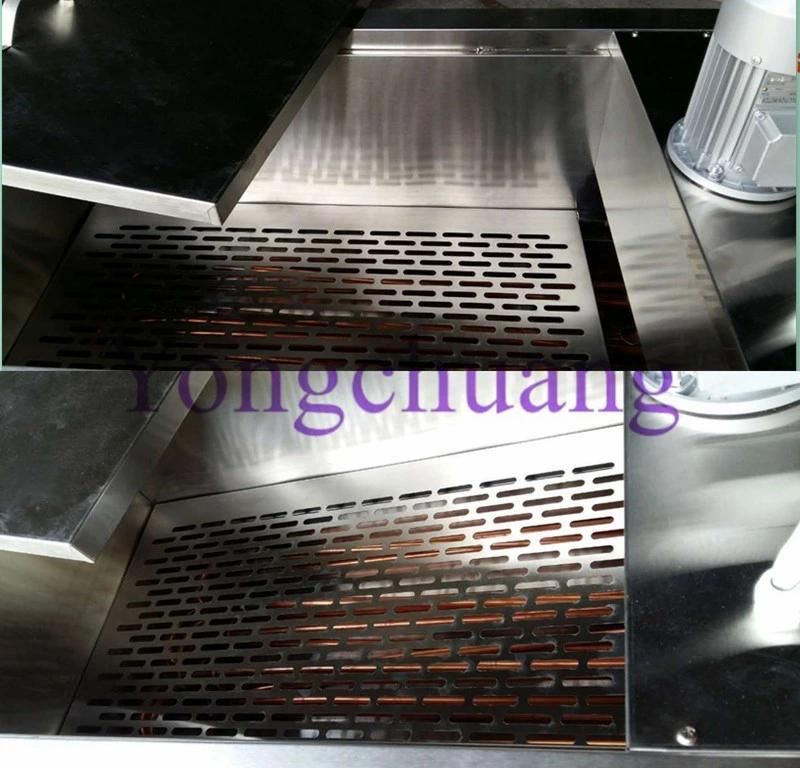

Machine Picture:
