• Model NO.：KL600
• Quality Certificate：ISO2001, CE Certificate
• Transport Package：by Standard Export Packing in Containers
• Specification：ISO9001, CE
• Trademark：sinobake
• Origin：China
• HS Code：8438
• Production Capacity：10 Pieces,Month

Basic Info.

Model NO. KL600 Quality Certificate ISO2001, CE Certificate Transport Package by Standard Export Packing in Containers Specification ISO9001, CE Trademark sinobake Origin China HS Code 8438 Production Capacity 10 Pieces/Month

Product Description

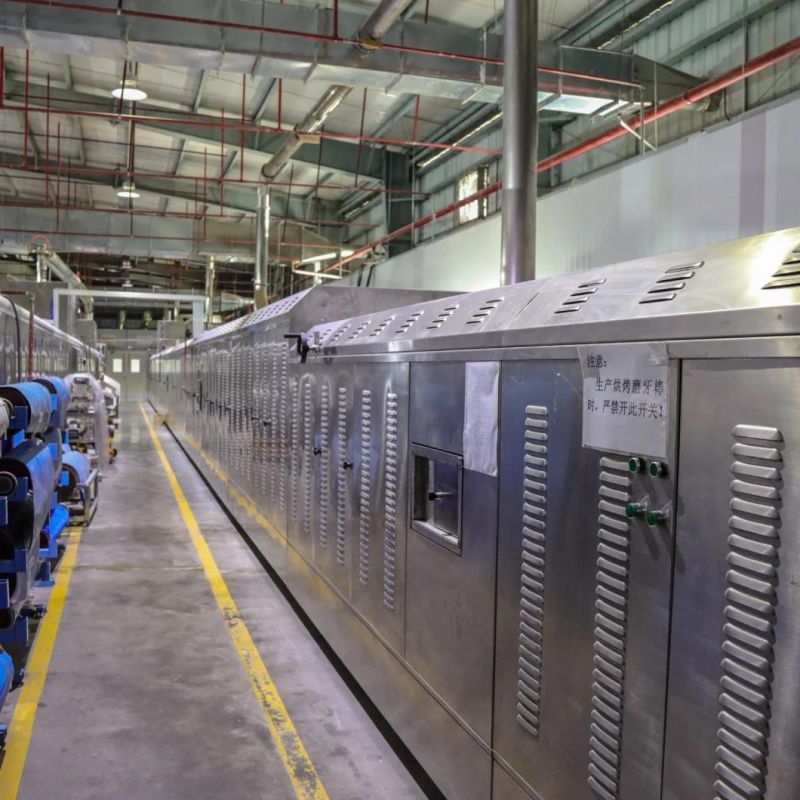

Indirect Convection Diesel Oil Oven, Indirect Gas Fired Oven KL600

Features:

It is the baking equipment on the biscuit production line, which bakes the biscuit under the action of heat convection, and makes the color, fragrance and taste good


Parameters:

1. Adopt burner heating indirect hot air circulation heating method
2. Section size of oven body: 1650mmX1805mm
3. oven length: 3M/section
4. Theoretical weight: 800KG/section
5. Zoning: Generally divided into 2-4 zones according to the length of the oven body, each zone is automatically temperature controlled, and the temperature is displayed in digital
6. Number of burners per temperature zone: 1 set/zone (the output power of a single burner is 25-350KW)
7. Burner working pressure: natural gas: minimum 30mbar, maximum 50mbar;
  Propane (petroleum) liquefied gas: minimum 30mbar, maximum 50mbar
8. Gas (oil) consumption: varies according to different biscuit production processes, generally LPG is 30-50kg/T biscuits, diesel fuel is 40-60kg/T biscuits
9. Excellent heat preservation and flame retardancy, the difference between the temperature outside the oven and the indoor temperature is no more than 10ºC
10. Production speed: Determined according to product baking time
11. Fuel type: LNG, LPG or light diesel
12. Exhaust plate hot air outlet method
13. The combustion box has a negative pressure protection device and a combustion box overheat protection device;
14. The main frame uses Q235 carbon steel material, and the surface is painted
15. oven material: electrolytic plate
16. Outer enclosure SUS304 stainless steel
17. Use aluminum alloy for trunking
18. Insulation materials: rock wool, aluminum silicate and other materials
19. Combustion machine: Well-known brand German Weishaupt or Italy Hosel
20. Bearings use Japanese brand: NSK
21. The fan adopts a well-known domestic brand: Xinyun
22. Control appliances mainly use well-known brands: Siemens/Schneider
