• Model NO.：50L-3000L
• Press Series：Second
• Condition：New
• Customized：Customized
• Product Name：Flower Oil Extraction Machine
• Advantage：Easy Operation
• Can Be Customized：Yes
• Quality：Superior International
• Weight：Will Be Fogured out by Your Capacity
• Color：Silver
• Capacity：50L-3000L
• Brand：Hdc
• Function：Essential Oil Distillation
• Material：Stainless Steel
• Transport Package：by Express
• Specification：480X480x560MM
• Trademark：HDC
• Origin：China
• HS Code：8419409090
• Production Capacity：10000

Basic Info.

Model NO. 50L-3000L Press Series Second Condition New Customized Customized Product Name Flower Oil Extraction Machine Advantage Easy Operation Can Be Customized Yes Quality Superior International Weight Will Be Fogured out by Your Capacity Color Silver Capacity 50L-3000L Brand Hdc Function Essential Oil Distillation Material Stainless Steel Transport Package by Express Specification 480X480x560MM Trademark HDC Origin China HS Code 8419409090 Production Capacity 10000

Product Description

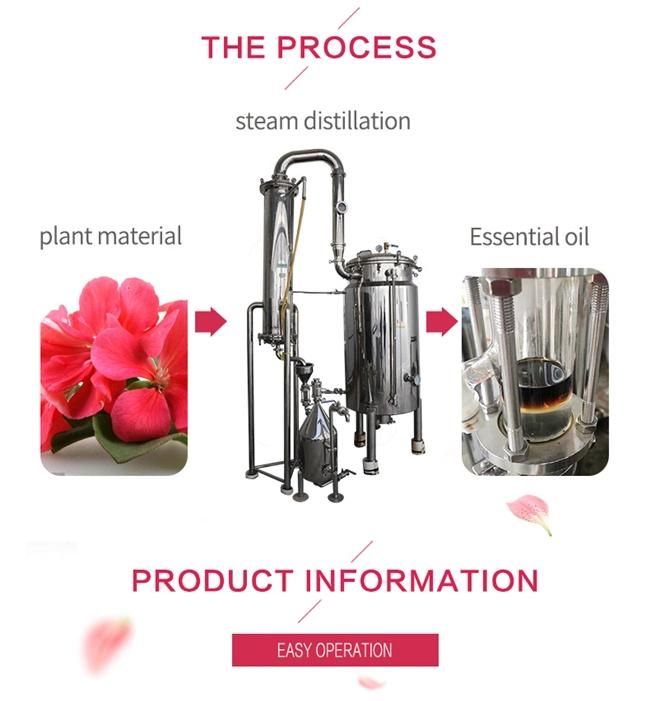

rose essential oil extracting machine oil machine

Product Structure:

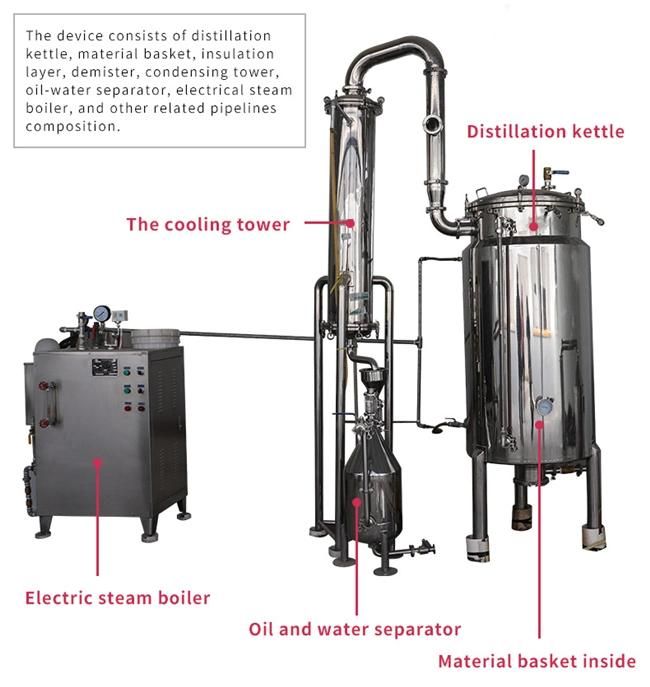

The device consists of inverted vertebral distillation kettle, demister, condensing tower, oil-water separator, double filter, supercharger, material conveyor belt and essential oil, pure dew collection tank, pure dew storage tank, food grade pump and other related pipelines composition. Equipment internal surface polishing Ra≤0.6μm,Outer surface matte treatment Ra≤0.8μm,To ensure that no health dead ends, in line with GMP requirements.

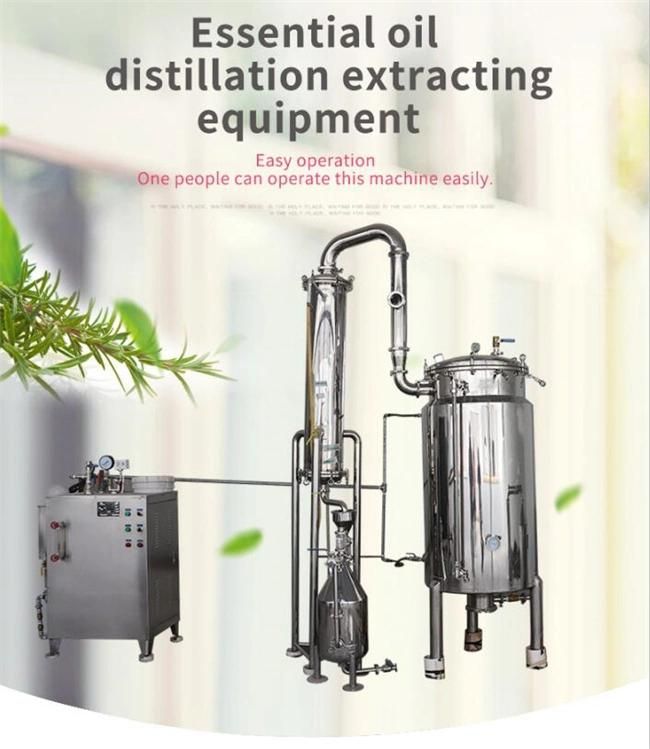

Essential oil distillation extracting equipment Main parameters


Distillation kettle	Effective volume: 3000L, using high-pressure steam through heating. Inside: working pressure: normal pressure;design temperature:120ºC,work temperature≤100ºC.Working medium:water; Upper oval headδ=5mm/S30408,Cylinder δ=5mm/S30408. Discharge slag door:DN1200, Three cylinder rotary slag gate, Single cylinder to open the door, two cylinder locking, a slag door with self-locking cylinder.
Demister	Size Φ300×750,δ=3mm/S30408,Demister inside has baffle, The top of the demister is set to the quick opening hole. Demister to facilitate cleaning.Meet the GMP requirements.
Condenser	Vertical condenser. Heat transfer area is greater than10m2 . Pipeline:designed pressure: normal pressure;working pressure: normal pressure;design temperature:100ºC, work temperature≤90ºC. Working medium:Secondary steam. Length:Φ25×2,Material: S30408
