• Model NO.：6YL-130
• Press Materials：All Oil Seeds
• Press Series：Second
• Condition：New
• Customized：Customized
• Shaft Speed：30-40rpm
• Hot Press and Cold Press：Both Available
• Delivery Time：5days
• Name：oil expeller
• Power：15-18.5kw
• Capacity：400-500KG,H
• Machine Size(mm)：2180X610X1480
• Weight：800kg
• Transport Package：Wooden Box
• Specification：CE
• Trademark：VIC
• Origin：China
• HS Code：84792000
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. 6YL-130 Press Materials All Oil Seeds Press Series Second Condition New Customized Customized Shaft Speed 30-40rpm Hot Press and Cold Press Both Available Delivery Time 5days Name oil expeller Power 15-18.5kw Capacity 400-500KG/H Machine Size(mm) 2180X610X1480 Weight 800kg Transport Package Wooden Box Specification CE Trademark VIC Origin China HS Code 84792000 Production Capacity 5000PCS/Year

Product Description

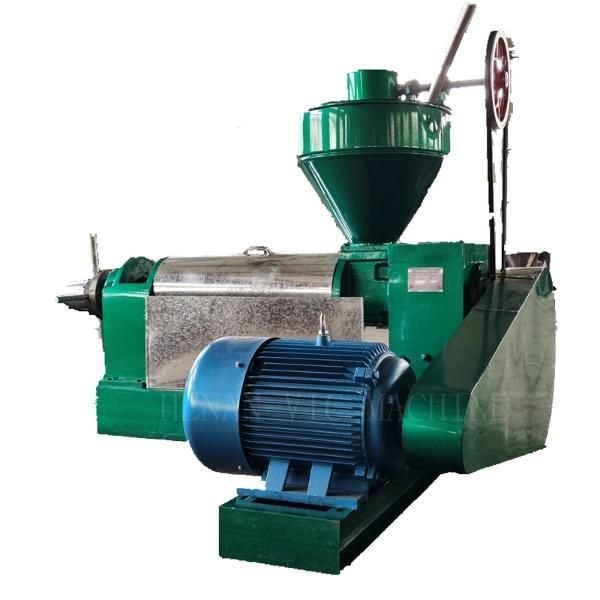

                                 6YL Series Oil Press Machine


Application:
This oil press is a rather advanced machinery in oil processing machinery, it has the function of easy operation, simple structure, low voice and high output, can be applied to press oil materials like peanut, soybean, rapeseeds, cottonseeds, sesame, sunflowerseeds, olive, coconut etc.
Advantage:
1.Simple and easy operation,one key to start without other operating
2.High oil yield to  the highest 97%
3.Reliable transmission systems are mostly helical gears with greater torque
4. Pure copper motors are more powerful and less failure rate
5. Reasonable design and configuration of strip and round row ensure faster oil output and higher oil yield
6. Stainless steel oil guide plate is cleaner and more sanitary
7 Advanced automatic stirring forced feeding system ensures the uniformity and continuity of feeding
8.Convenient and labor-saving adjustment and disassembly system facilitates product adjustment and maintenance

Technical data:

Model	Capacity(kg/h)	Power(kw)	Machine Size(mm)	Weight(kg)
6YL-68	50kg/h	5.5kw	930x490x820	150kg
6YL-68C	50kg/h	5.5kw	930x575x1055	150kg
6YL-68J	50kg/h	5.5kw	930x575x1055	150kg
6YL-80	100kg/h	5.5kw	1307x550x1102	300kg
6YL-95	200kg/h	7.5-11kw	2155x580x1250	550kg
6YL-100	200kg/h	7.5-11kw	2050x550x1180	550kg
6YL-120	300kg/h	11-15kw	2150x610x1300	700kg
6YL-130	450kg/h	15-18.5kw	2180x610x1480	800kg
6YL-160	550kg/h	18.5-22kw	2180x610x1480	900kg
6YL-165	700kg/h	22-30kw	2280x620x1680	1300kg

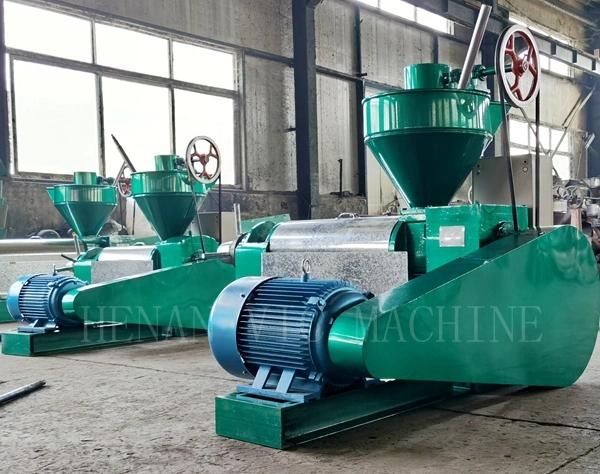

More picture

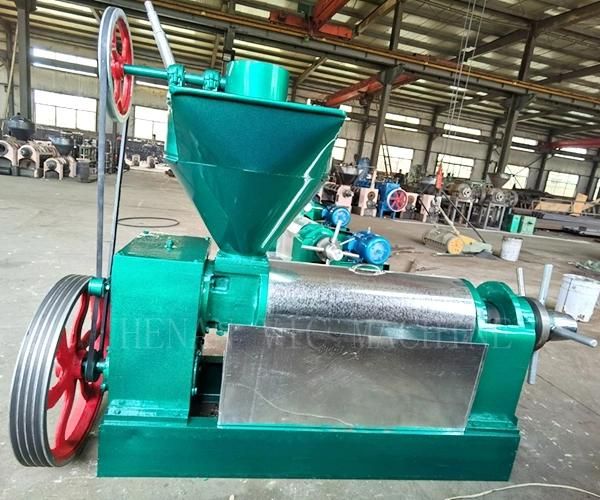

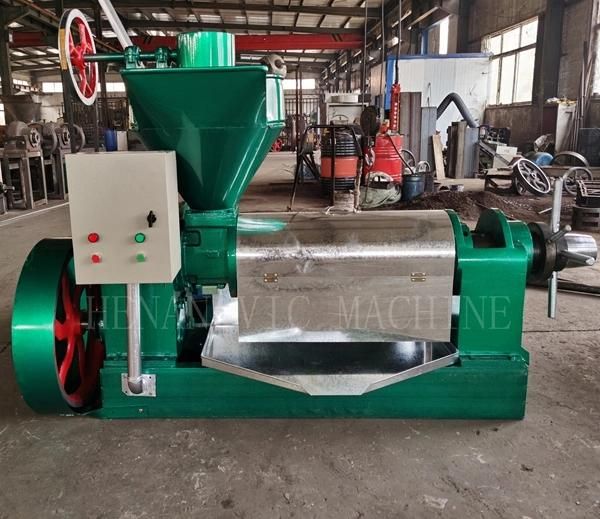

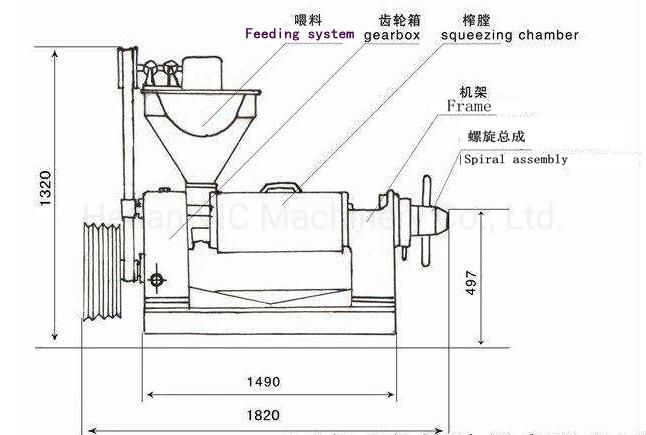

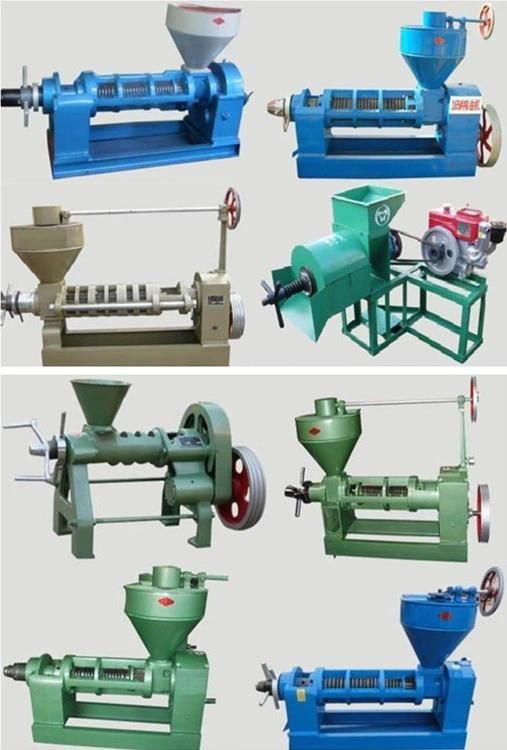

More pictures of 6YL-system oil press machine:

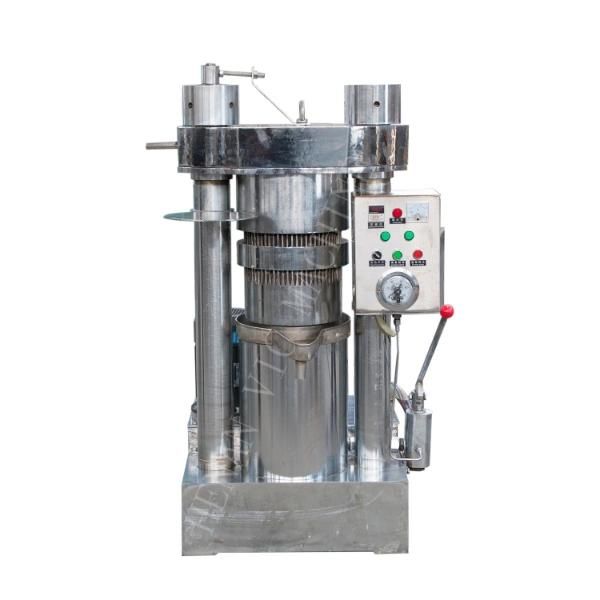

Hydraulic oil press 6Y-230

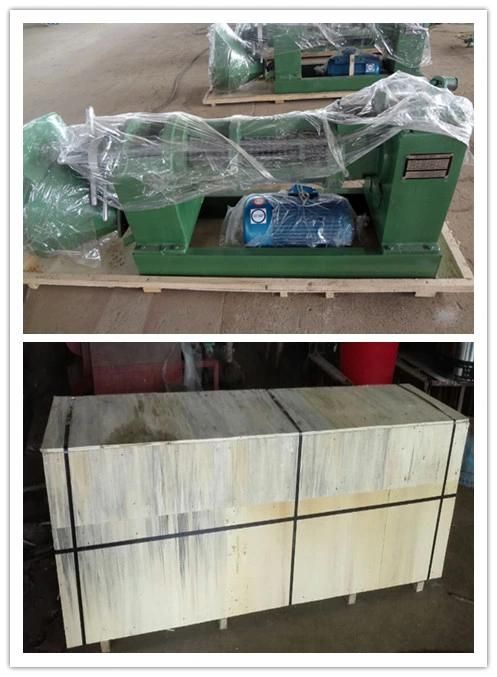

Package pictures:

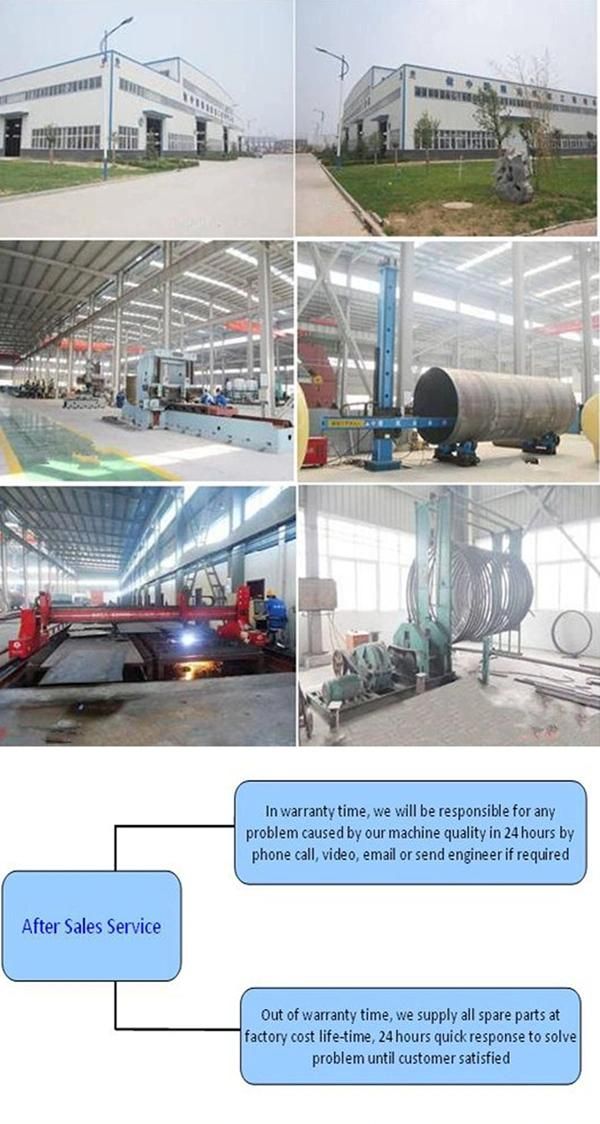

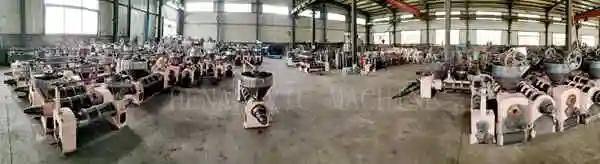

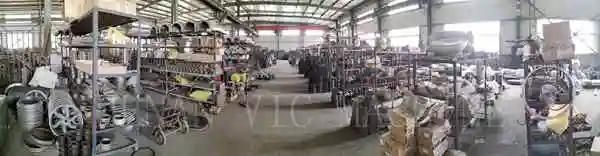

Factory view:




Company certification:
