GF 105 Tubular Centrifuge for Vco
Dalian Reyes Import & Export Co., Ltd.- Processing Material：Coconut Oil
- Application：Fruit, Edible Oil
- Customized：Customized
- Certification：CE, ISO9001
- Power Source：Electric
- Automatic Grade：Automatic
Base Info
- Model NO.：GF105
- Type：Cold & Hot Pressing Machine
- Material：Stainless Steel SS304,316
- Bearing：SKF
- Drum Speed：16300
- Capacity：200-1200L,H
- Motor Power (Kw)：2.2 Kw
- Transport Package：Wooden Cases
- Trademark：Reyes
- Origin：Liaoning, China (Mainland)
- HS Code：8421192000
- Production Capacity：500sets, 98%-100%
Description
Item
GF105
ID(mm)
105
Height (mm)
730
Sedimentation volume(L)
6
Max speed(r/min)
16300
Max separation factor
15620
Inlet nozzle diameter (mm)
4/6/8
Material inlet pressure (Mpa)
≥0.05
Capacity (water capacity)L/H
1600
Actually Capacity L/H(For coconut oil)
120-180
Motor model
3 phase two pole motor
Motor power (kw)
2.2
Machine dimension (mm)
600*1000*1600
Machine weight (kg)
460

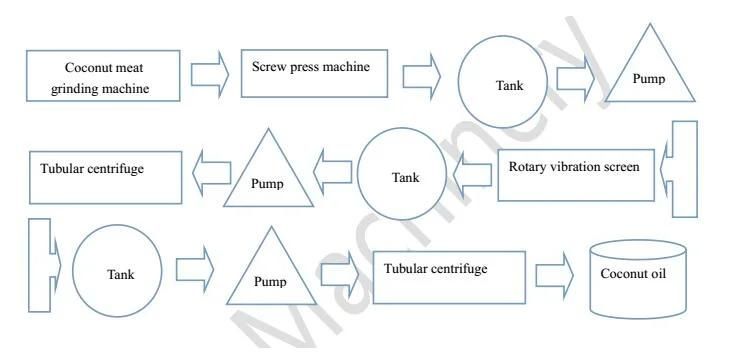

Flaw chat
Please refer to the following related machine coconut oil production line:

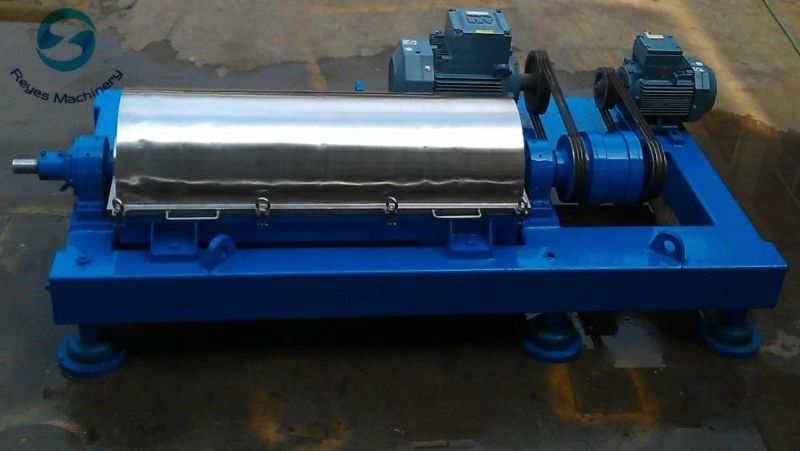

Decanter centrifuge:
https://dlreyes.en.made-in-china.com

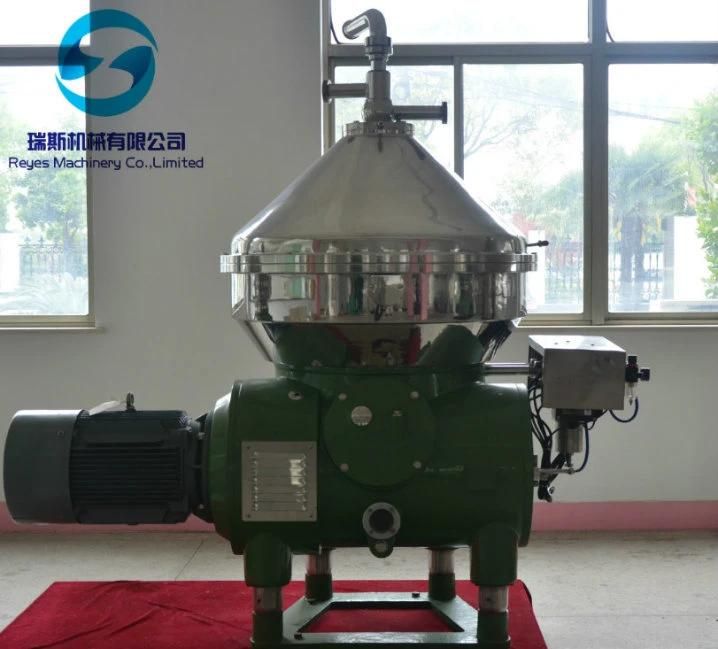

Disc separator:
https://dlreyes.en.made-in-china.com
Company Profile
Our services As Follows:
Provide free technical training, guidance and information of accessories.
Our technical staff could instruct our customers on the installation of connector and accessories on site, and deal with technical and quality issues.
Once receive the customer complaints, we will response within 24 hours.
Free maintenance and replacement will be provided if defects result from quality failure of our product.
Our company will provide perfect after-sale services and technical support.
Contact person: Andy
Hot line: +86-13804282806
