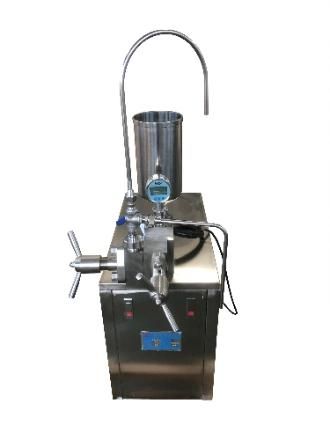

Small Lab High Pressure Homogenizer
SHANGHAI DONGHUA HIGH PRESSURE HOMOGENIZER FACTORY- Power Source：Electric
- Certification：ISO9001
- Automatic Grade：Semi-Automatic
- Application：Milk, Yogurt, Milk Powder, Cheese
- Customized：Customized
- Name：Laboratory Homogenizer
Base Info
- Model NO.：GYB60-6S
- Machine Type：Gyb60-6s
- Delivery：30d
- Capacity：60L,H
- Power：3kw
- Package：Standard Wooden Case
- Transport Package：Export Wooden Packing
- Specification：920*550*1120MM
- Origin：China
- HS Code：8434200000
Description
Model
Equipment flow
Maximum pressure
Nominal pressure
Motor power
Equipment size
Weight
Voltage

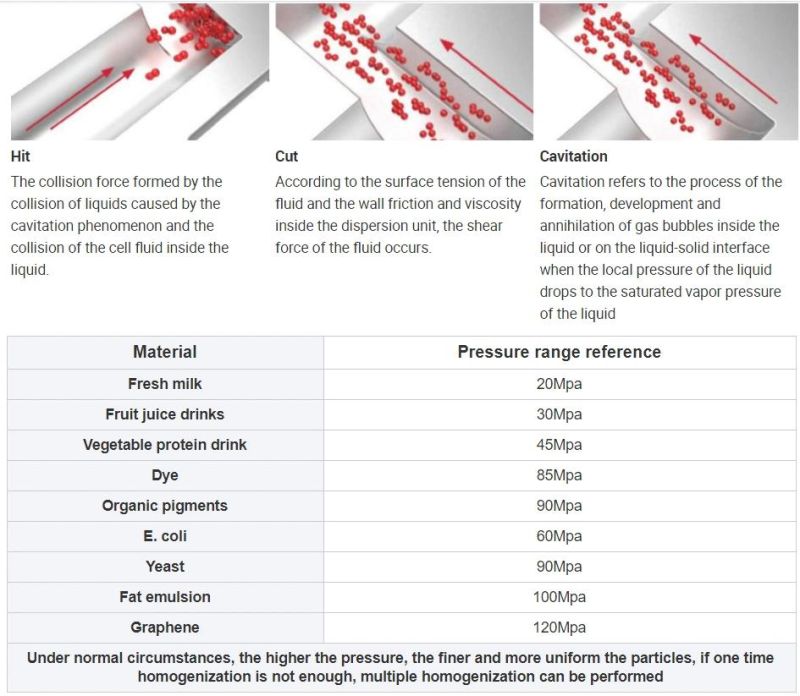

Product Description:The material is sucked in and pressurized by the plunger pump, and enters the valve block with adjustable pressure under the action of the plunger. After passing through the restrictive gap (working area) of a specific width, the material that loses pressure instantly has a very high flow rate (1000 Up to 1500 m/s) and collide with the collision ring of one of the valve components, producing three effects: Cavitation effect The material compressed by the plunger accumulates extremely high energy, and it loses pressure instantaneously when passing through the flow-limiting gap, causing high-energy release and cavitation explosion, which causes the material to be smashed and refined. Impact effect When the material passes through the restricting gap, it hits the special collision ring at the above extremely high speed, causing the material to be crushed. Shear effect High-speed materials will produce strong shear when passing through the valve cavity channel and the flow limiting gap.Application Areas:-It can be used in pharmaceutical, biological, food and other industries, especially suitable for drug research and development and small pilot test requirements.
-Technical performance The crushing rate is high, and the crushing rate can reach more than 95% at one time; The ultra-high pressure design, the pressure can reach 1800bar/27000psi; The special feeding valve design, without exhaust, direct feeding;
The frequency conversion control system can be adjusted according to requirements flow;
-Built-in cooling system, which directly absorbs and breaks heat to ensure the activity of intracellular substances; It is designed in accordance with GMP and passed the EU CE certification; Optional: pneumatic pressure, PLC control.
