• Model NO.：GD1200
• Speed：55~65 N,Min
• Max Candy Weight：6kg
• Weight：3500-8000kg
• Voltage：380V
• Material：Stainless Steel
• Depositing Speed：55-65n,Min
• Transport Package：Wooden Case
• Specification：CE, ISO9001: 2000
• Trademark：tgmachine
• Origin：Shanghai
• HS Code：84382000
• Production Capacity：1 Set,2 Month

Basic Info.

Model NO. GD1200 Speed 55~65 N/Min Max Candy Weight 6kg Weight 3500-8000kg Voltage 380V Material Stainless Steel Depositing Speed 55-65n/Min Transport Package Wooden Case Specification CE, ISO9001: 2000 Trademark tgmachine Origin Shanghai HS Code 84382000 Production Capacity 1 Set/2 Month

Product Description

The features:

1.All units of the production line are auto running,all raw materials are handling in the piping and machine,and various kind of recipes can be programmed in the PLC and applied easily and freely when needed.

2.PLC and serve driven system are imported brand which is more reliable and better quality.

3.Depositing volume (candy weight)can be changed easily that just need to set the data in the touch screen.more accurate depositing and continuous production makes minimal product wastage.

4.Simple and compact machine structure,menu operation,better efficiently ,high speed running reliable and steady;little noise are available in this machine.


Whole Automatic Hard Candy Making Machine Constituent Parts:

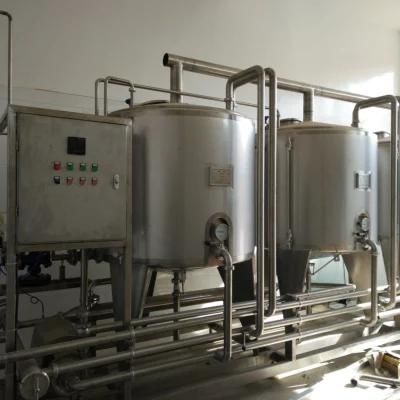

Sugar Melting Pot---Syrup Pump---Storage Tank(with mixing function)---continous Vacuum Micro-film Cooker--Multi-function Servo Depositing Machine---sticking Machine---Wrapping Machine

Technical Parameters:

Model	GD150-S	GD300-S	GD450-S	GD600-S	GD1200-S
Output(kg/h)	150	300	450	600	1200
Max candy weight	6g	6g	6g	6g	6g
speed	55~65 n/min	55~65 n/min	55~65 n/min	55~65 n/min	55~65 n/min
Steam consumption Steam pressure	250kg/h, 0.5~0.8MPa	300kg/h, 0.5~0.8MPa	400kg/h, 0.5~0.8MPa	500kg/h, 0.5~0.8MPa	800kg/h, 0.5~0.8MPa
Compressed air consumption Compressed air pressure	0.2m3/min, 0.4~0.6MPa	0.2m3/min, 0.4~0.6MPa	0.25m3/min, 0.4~0.6MPa	0.3m3/min, 0.4~0.6MPa	0.4m3/min, 0.4~0.6MPa
Electric power needed	18kW/380V	27kW/380V	34kW/380V	42kW/380V	68KW/380V
Total length(m)	15	17	17	20	25
Gross weight	3500 kg	4000 kg	4500 kg	5000 kg	8000kg

Wooden packing
1.Product production is completed, by the quality inspection department to check
2.After inspection qualified, clean for whole machine
3.Packing: a. Inside the machine put desiccant b. Add 6 cm thick foam plate  around the machine, Then, winding stretch film for reinforcement, and combined with bubble wrap c. On wood packaging on the outside of the machine, then use metal reinforcement with steel
4.Container:according to different products for reinforcement
