• Model NO.：SE-150H
• Color：Sliver
• Material：304 Stainless Steel
• Type：Fully Automatic
• Usage：Candy Making
• Power：Electric , Steam Power
• Function：Function
• Final Product：Hard Candy
• Specifications：1-25g,PCS
• Capacity：100-750kg,H
• Item：Electric Food Making Equipment
• Transport Package：Wooden
• Specification：150kg,h
• Trademark：SIEN
• Origin：Shanghai China
• HS Code：8438200000
• Production Capacity：150kg,H

Overview

Product Description

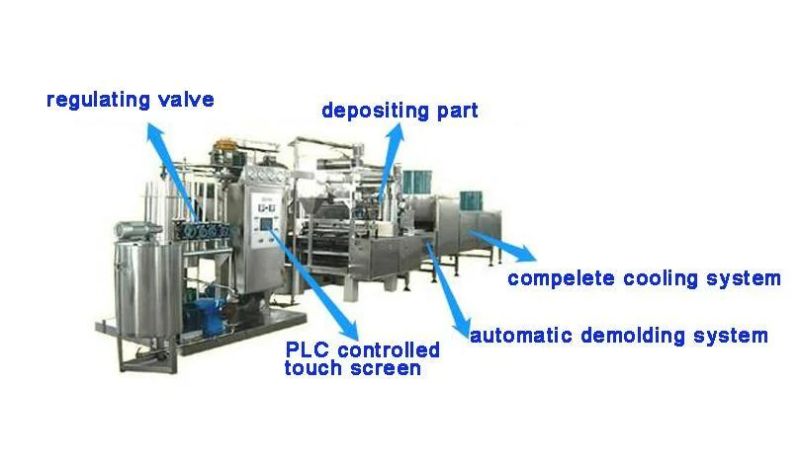

SE150/300/450/600 hard candy depositing line  is not only an ideal equipment which can produce products of good quality ,but also an advantage for the candy manufacturer to pass the GMP,HACCP,QS authentication easily.This line mainly consists of auto weighing and mixing system, dissolving tank, micro-film cooker, depositor and cooling machine and adopt the advanced servo system to control.


The advantage of the line is as following:PLC/computer process control available;An LED touch screen for easy operating;The main part is made of  stainless steel;Molds can be made according to the candy samples provided by customer;Exported to more than 20 countries(Vietnam and India etc)24 hours before and after sales

Product Parameters



SE300SE450SE600Capacity150kg/h300kg/h450kg/h600kg/hMax candy weightAs per the candy sizeDepositing speed55-70n/min55-70n/min55-70n/min55-70n/minSteam requirement250kg/h
0.5-0.8MPa300kg/h
0.5-0.8MPa450kg/h
0.5-0.8MPa600kg/h
0.5-0.8MPaCompressed air requirement0.6m3/min
0.4-0.6MPa0.6m3/min
0.4-0.6MPa0.6m3/min
0.4-0.6MPa0.6m3/min
0.4-0.6MPaWorking conditionTemp:20-25
Humidity:55%Temp:20-25
Humidity:55%Temp:20-25
Humidity:55%Temp:20-25
Humidity:55%Total power18KW/380V27KW/380V34KW/380V38KW/380VTotal length15m15m17m17mGross weight3500kg4000kg4500kg5000kg

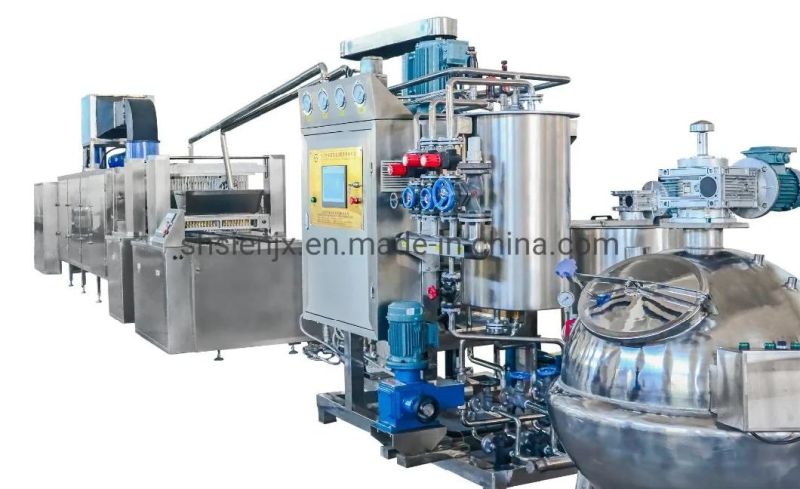

Detailed Photos

Company Profile

Shanghai sien food machinery manufacturing co., LTD is a modern enterprise specializing in the development, manufacture and sales of confectionery machinery and baking equipment. The company has passed the certification of ISO9001 quality management system, and some products have passed the eu CE test and obtained the CE certificate.

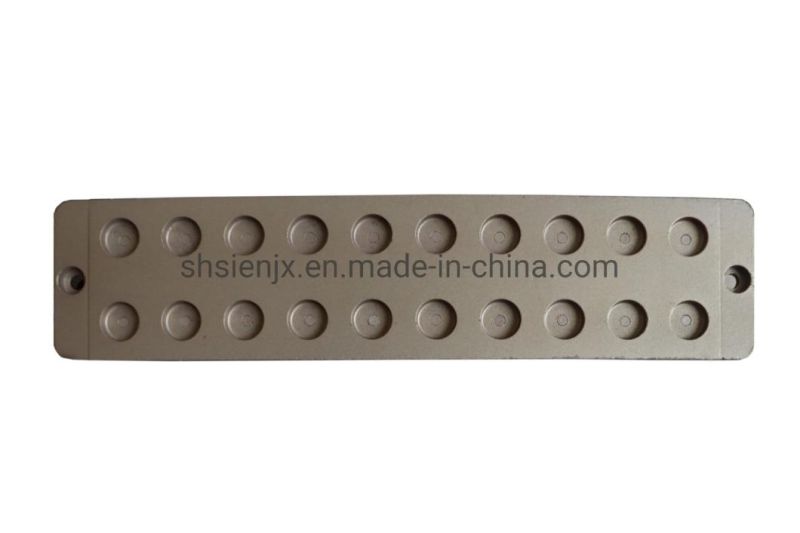

Hard candy Moulds

Packaging & Shipping



Flow Chart

FAQ

Q:Are you a factory or trading comapny?

A:We are a factory and have more than 7
 years manufacture and sales experience
Q:What's your MOQ
A: 1set
Q:How should i do if meet some trouble while using?
A:We can help you resolve the problems online
or dispatch our worker to you factory.
Q:How can I contact with you?
A:You can send inquiry to me.
Also can contact with me by cellphone
