• Model NO.：ZD-100
• Voltage：3n, 380V or 3n, 220V
• Customized：Customized
• Material：304stainless Steel
• Capacity：32trays
• Tray Size：600 X 400 mm
• Trolley：One Trolley, 16layers
• Differnent Size of Rotary Oven：8trays, 16trays, 64trays
• Transport Package：Plywooden
• Specification：CE
• Trademark：MOOHA
• Origin：Shanghai, China
• HS Code：84381000
• Production Capacity：500PCS,Year

                                      3N,380V,50Hz fuel consumption  48kw/h natural gas (3.1-5.7 m³/h)  LPG (1.2-2.3 m³/h  2.5~3L diesel oil capacity                                         32trays productivity                                         100kg/h temperature                                         50~300°c size                                     1900*1800*2300mmeach serie has 2 models for your choice,first ,trolley hang up at the top,second,trolley fixed at the bottom.
Features
1,galss door for easy observation
2,time-alarmer
3,steam
4,equip "emergence stop "set
5,Hot air circulating system,adjust the temperature automatically
6,304 stainless steel,CE certificate
7,good insulation

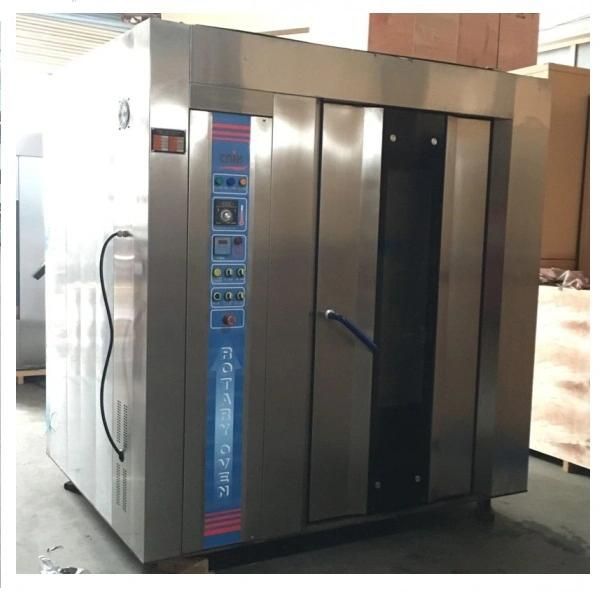

Electric, gas and diesel oil fuel type rotary rack oven available, trolley hanged at top or rotated at bottom style can be chosen.
Wide baking range, bread, cake, biscuit, meat etc.
The machine's overall dimension would be 2050*2000*2150mm once the trolley rotated at the bottom.
Hot air circulating system
High heating efficiency, equip with time-alarm, adjust temperature automatically.
Large baking capacity, 32 pans each time. Good baking effect.

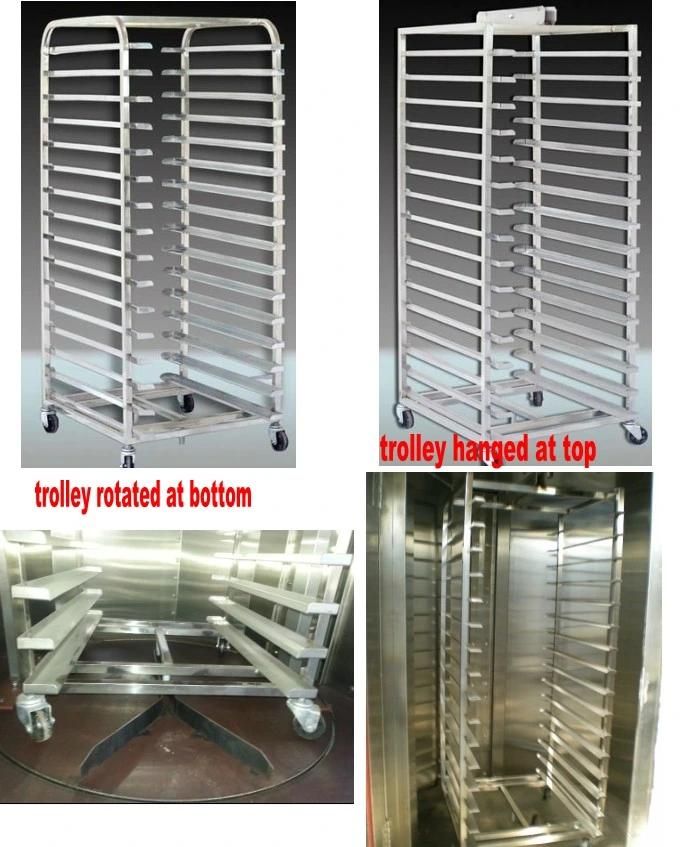

2 different trolley fixed model
