• Model NO.：KQ100-1000
• Voltage：220V,380V,440V
• Customized：Customized
• Name：Double Jacketed Kettle 100L 200L Electric Jackete
• Function：Heating and Mixing
• Capacity：50L to 1000L
• Mixer Type：Kettle with Scrapper Agitator
• Application：Cooking , Pasteurizing and Mixing Liquid

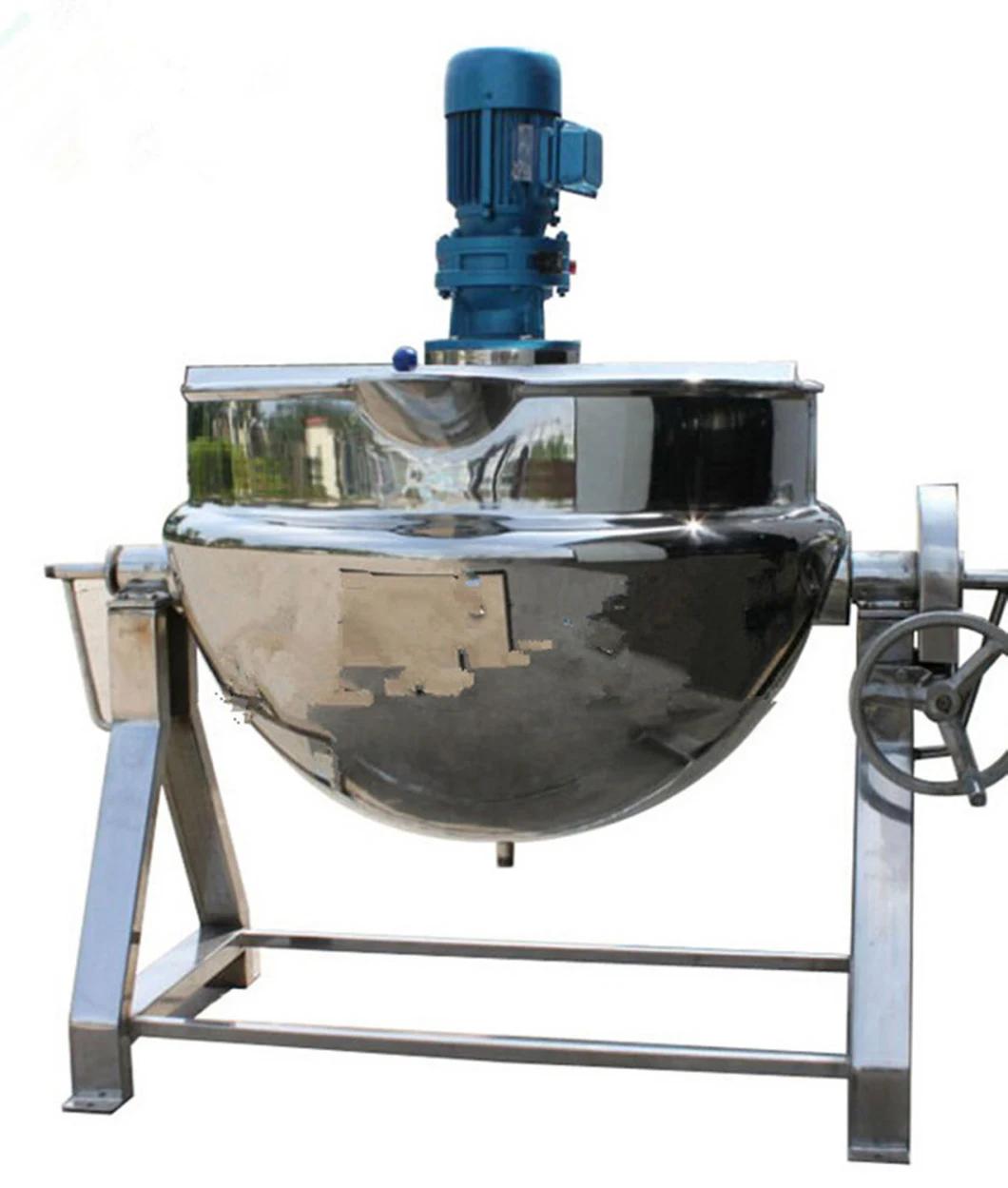

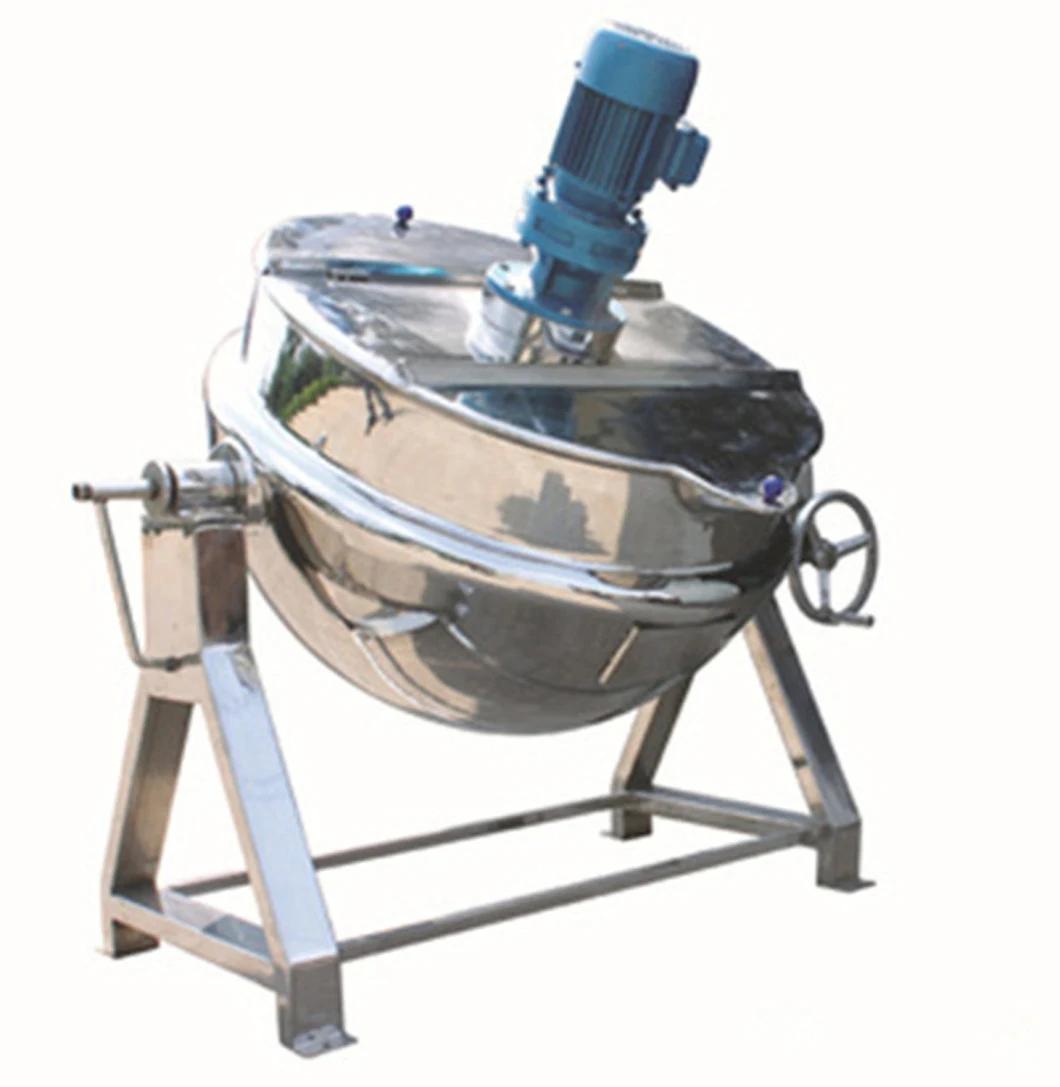

• Kettle Type：Tilting, Vertical ,Fixed
• Material：Stainless Steel 304 ,316
• Heating Source：Electric Heating Kettle, Steam Heating Kett
• Mixer：Scrapper Mixer, Customized
• Voltage ,Hz,Phase：Make It to Your Order
• Packing：Wooden Box
• MOQ：1set
• OEM：Yes
• Tilting：Yes
• Spare Parts：Available
• Transport Package：Standard Export Wooden Box
• Specification：ISO
• Trademark：KQ
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：2000set ,Year

Product Name:Stainless steel jacket kettleDescription:Designed according to 3A standard, widely used for transfer viscous media in the food-processing, cosemtics and pharmaceutical industriesConstruction: vertical jacketed kettle,tilting jacketed kettleHeating mothedBy electricity (oils or water), by steam, by gasMaterial:SS304/SS316L/1.4301/1.4404Capacity:50L-1000LAgitator Type:With PTFE scraperMechanical seal:SIC/SiC/EPDM(Standard)Motor power:0.55kw, 1.1kw, 1.5kw, 2.2kw, 3kw, 7.5KWSealing option:Sanitary single mechanical seal/Double mechanical seal with cooling systemVoltage:220V, 380V,415VMotor:ABB, LOCAL,50hz/ 60hzSurface treatment:Inner polished and outside polishedAvailably connection:Clamp, Thread Butt weld, FlangeAvailably standard:DIN, SMS, 3A, RJT, ISO/IDFOperated:ElecticApplication scope: Dairy, food, beverage, pharmacy, cosmetic, etcPackaging Details:Plywood case or customerized. Or as per the request of customersDelivery details:Usually within 20 days after receiving T/T down payment



Stainless steel double-layered boiler/kettle ,used for heating, mixing fruit jam and processing meat, food, Candy, pharmacy, dairy , liquor, cake, drink, candied fruit, etc

JACKET  Kettle PART
Capacity: 300L TO 1000L
Material: SS304
Heating by Electric (380V, 50HZ)
* Type: with Jacketed wall
* Internal shell thickness: 3 mm
* Jacket thickness: 3 mm
stainless steel electric/steam/gas heating jacket kettle


KQ100
KQ150
KQ200
KQ300
KQ400
YT500
Capacity L

100
150
200
300
400
500
Jacketed pressure
 Mpa
                            < 0.2
Evaporation capacity
kg/h

40
50
65
75
100
150
Heat area
 m 2

0.45
0.76
1.0
1.15
1.44
1.90
Energy consumption
 kg/h

44
55
72
90
110
165
N.W.
 kg

190
210
230
320
360
485
LxWxH
 mm

800X650X830
1350X650X1100
1400X700X1100
1450X800X1110
1500X850X1140
1600X900X1150
Double Jacketed Kettle 100L 200L Electric Jacketed Kettle Cooking Pot .
