• Model NO.：SC-10-25
• Capacity：500L,H
• Power：4kw
• Working Pressure：20MPa
• Place of Original：China
• Transport Package：Fumigation Free Packing for Export Wooden Cases
• Specification：1010*616*975mm
• Trademark：Yongchuang
• Origin：China
• Production Capacity：500set,Month

Basic Info.

Model NO. SC-10-25 Capacity 500L/H Power 4kw Working Pressure 20MPa Place of Original China Transport Package Fumigation Free Packing for Export Wooden Cases Specification 1010*616*975mm Trademark Yongchuang Origin China Production Capacity 500set/Month

Product Description

 High Quality Milk Pasteurizer And Homogenizer With Factory Directly Sale
Machine Introduce :
Milk homogenizer is used for the viscosity of less than 0.2Pa.s, the temperature is below 80 ºC homogeneous liquid emulsion material. Such as dairy products, beverages, cosmetics, pharmaceuticals and other products homogenization and emulsification.

Machine advantage for  milk homogenizer:
1. It adopts the first-class transmission form, compact structure, stable operation, high efficiency, low noise and low energy consumption.
2. The crankcase is casted with ductile iron, which has good rigidity, high strength, no deformation and no fracture.
3. The crankshaft is cast in high grade ductile iron. It is treated by special advanced technology. The surface hardness is HRB600-800. The hardness depth is 0.5mm. The basic hardness is HRB260-280. Therefore, the crankshaft has good rigidity, wear resistance and no fracture.
4. The pump body is forged integrally with acid-resistant and high-quality stainless steel. It adopts a straight-through three-way structure, which can effectively prevent the internal stress from accumulating and avoid cracking.
5. The plunger material is vacuum hardened by 1Cr18Ni9Ti substrate, which is wear-resistant, corrosion-resistant and super-hard surface. At the same time, the surface of the plunger is mirror-polished, which improves the surface finish, reduces the wear of the sealing ring and prolongs the service life of the plunger. .
6. The plunger seal adopts self-expanding and self-lubricating imported sealing material, which greatly improves the reliability of the seal.

Machine Parameter :

Model	Capacity	Power	Working pressure	Dimension
SC-2/25	200L/H	2.2KW	20Mpa	755*520*935mm
SC-5/25	500L/H	4KW	20Mpa	1010*616*975mm
SC-10/25	1000L/H	7.5KW	20Mpa	1100*676*975mm
SC-15/25	1500L/H	11KW	20Mpa	1100*770*1100mm
SC-20/25	2000L/H	15KW	20Mpa	1410*850*1190mm
SC-30/25	3000L/H	22KW	20Mpa	1410*960*1280mm

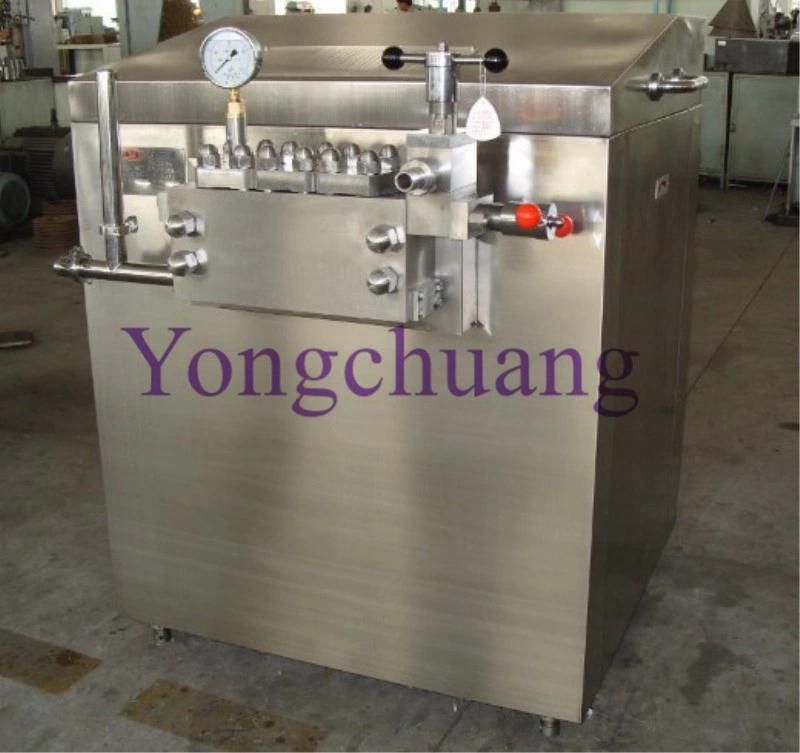

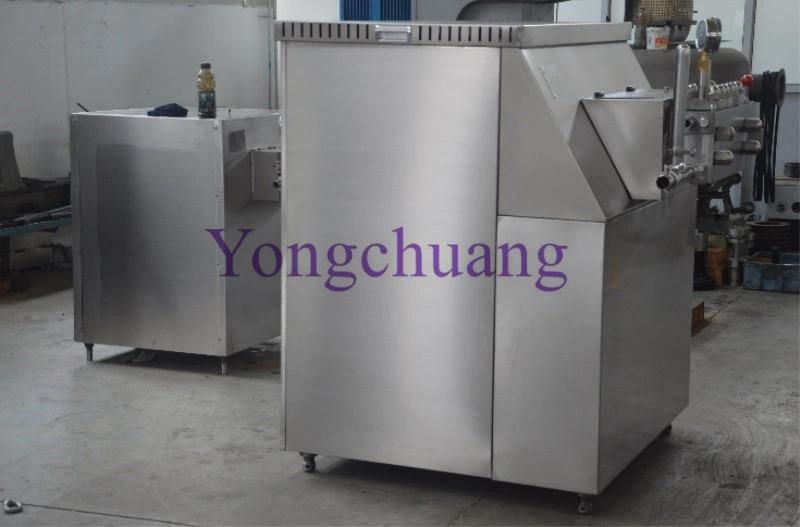

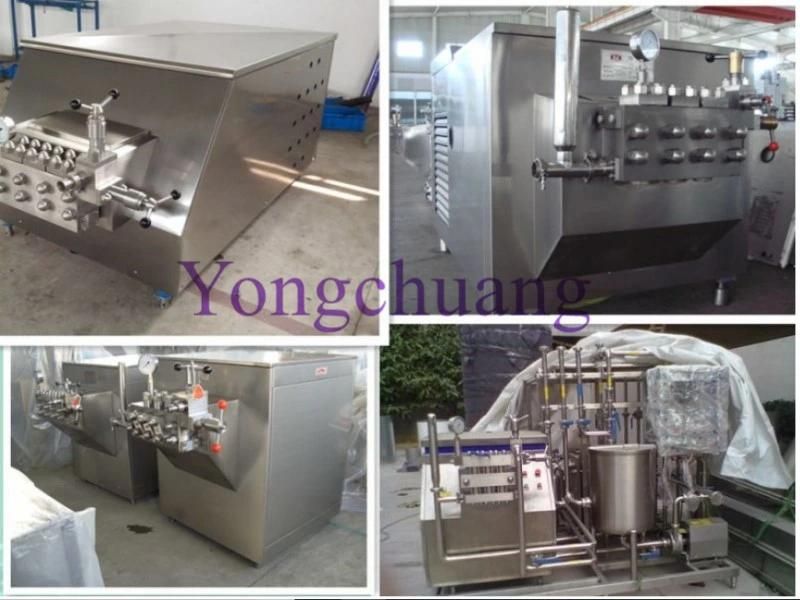

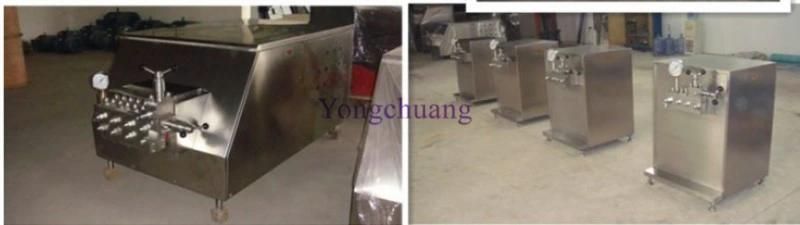

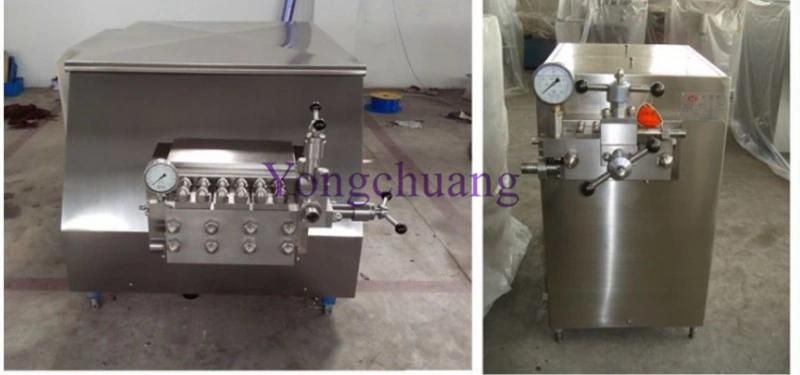

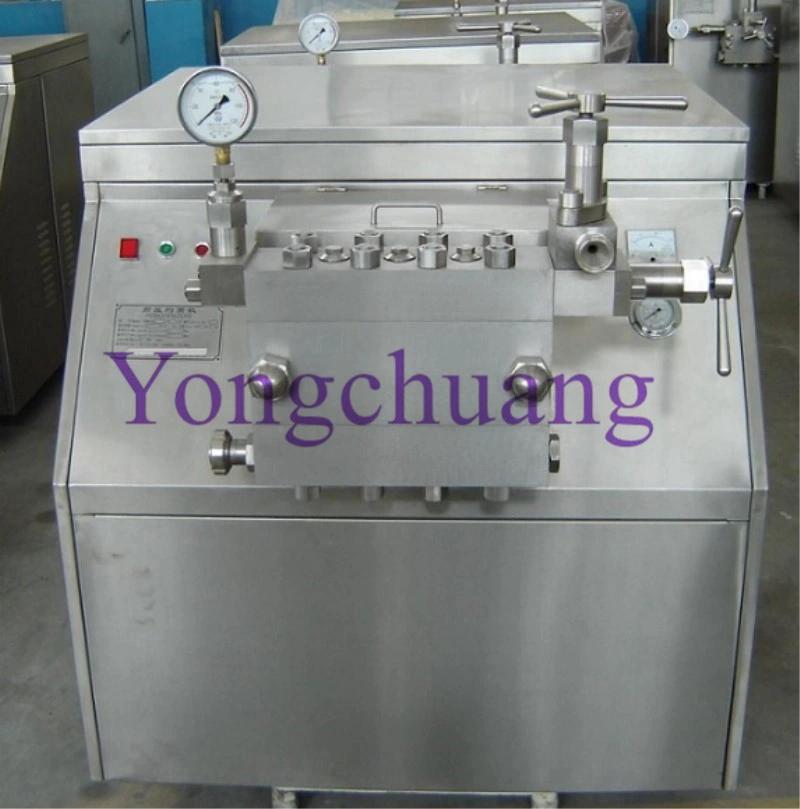

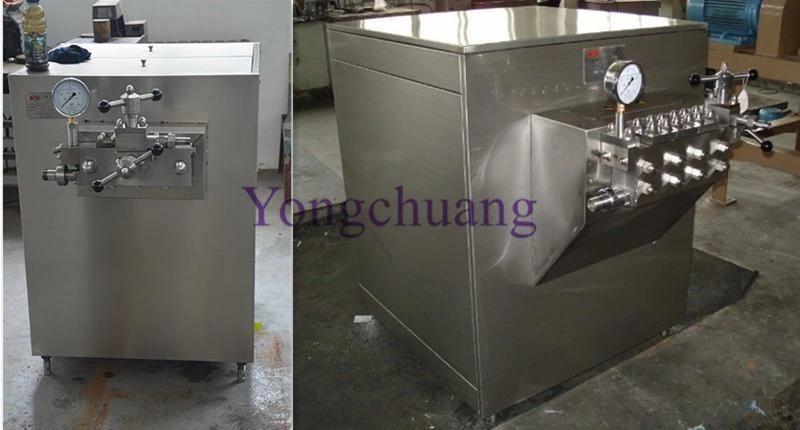

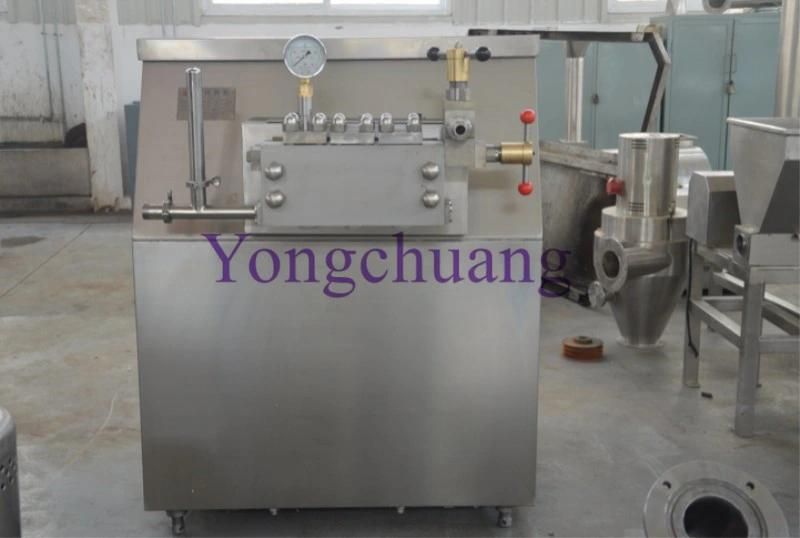

Machine Picture :
