• Model NO.：QX-50
• Name：Automatic Meat Sausage Smoking Machine
• Heat Power：by Steam or Electric
• Capacity：50-150kg
• Guarantty Time：12 Month
• Delivery Time：25 Days
• Transport Package：Wooden Case (Plywood)
• Specification：CE certificate
• Trademark：Astar
• Origin：China
• HS Code：8438500000
• Production Capacity：50 Sets, Month

ModelQX-50 SteamQX-50 ElectricityCapacity(kg)5050Power(kw)4.09.5High pressure(Mpa)0.3-0.6/Low pressure(Mpa)0.1-0.2/Temperature(°C)<120<150Water pressure(Mpa)0.2 /Standard trolley Dimension(mm)700*730*915700*730*915Machine Dimension(mm)1200*1000*16801200*1000*1680Weight(kg)330330
100 Type Sausage Smoking Machine Specifications:ModelQX-100 Steam QX-100 ElectricityCapacity(kg)100100Power(kw)4.213High pressure(Mpa)0.3-0.6/Low pressure(Mpa)0.1-0.2/Temperature(°C)<120<150Water pressure(Mpa)0.2 /Standard trolley Dimension(mm)816*860*1150816*860*1150Machine Dimension(mm)1350*1050*19781350*1050*1978Weight(kg)650700
150 Type Sausage Smoking Machine Machine:ModelQX-150 SteamQX-150 ElectricityCapacity (kg)150150Power (kw)4.819.5High pressure (Mpa)0.3-0.6/Low pressure (Mpa)0.1-0.2/Temperature (°C)<120<150Water pressure (Mpa)0.2/Standard trolley Dimension (mm)866*880*1250866*880*1250Machine Dimension (mm)1740*1100*21601740*1100*2160Weight (kg)820820

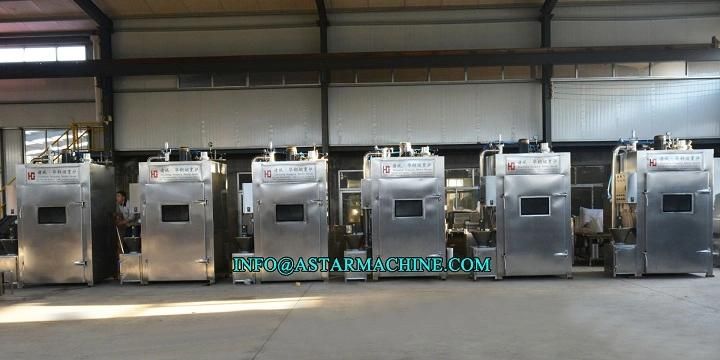

Industrial Use Automatic Meat Sausage Smoking Machine ( RYX-ALLROUND) More Photos :

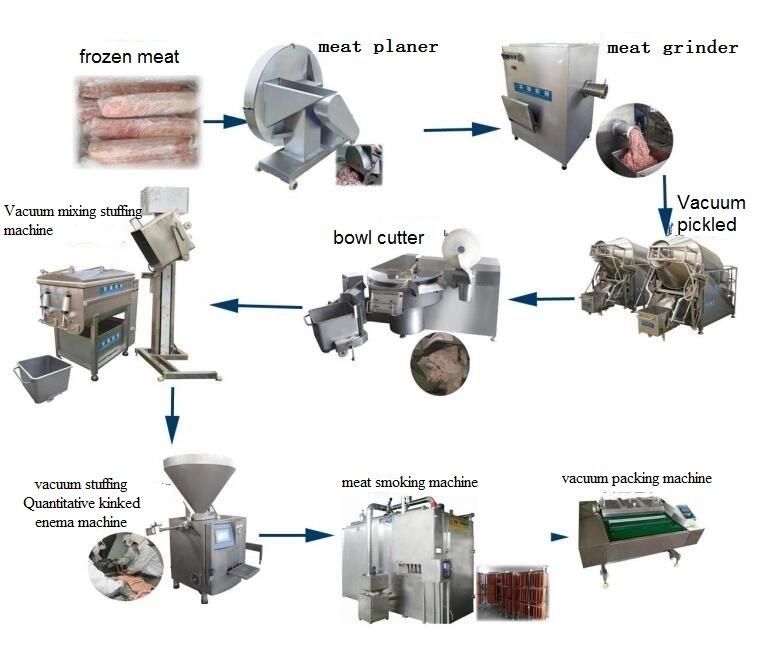

Sausage Making Line :


Any more information you need Industrial Use Automatic Meat Sausage Smoking Machine ( RYX-ALLROUND),  please feel free to contact with us.
