• Model NO.：F1
• Power Source：AC110V,220V 300W
• Filling Speed：1200-1800PCS,Hour
• Heating System：Temperature Control
• Repeated Filling Accuracy：0.02ml
• Working Temperature：Can Heat up to Over 80 ºC
• Compatible Device：Cartridge, Vape Pen, Pod, Syringe, Bottle
• Materials：Stainless Steel
• Key World：Oil Filling Machine
• Color：Clear & White
• Certification：Ce, FCC, RoHS
• Transport Package：Wood Box
• Specification：110kg
• Trademark：Eboat Times
• Origin：China
• HS Code：6879648934
• Production Capacity：5 Sets,Week

Basic Info.

Model NO. F1 Power Source AC110V/220V 300W Filling Speed 1200-1800PCS/Hour Heating System Temperature Control Repeated Filling Accuracy 0.02ml Working Temperature Can Heat up to Over 80 ºC Compatible Device Cartridge, Vape Pen, Pod, Syringe, Bottle Materials Stainless Steel Key World Oil Filling Machine Color Clear & White Certification Ce, FCC, RoHS Transport Package Wood Box Specification 110kg Trademark Eboat Times Origin China HS Code 6879648934 Production Capacity 5 Sets/Week

Product Description

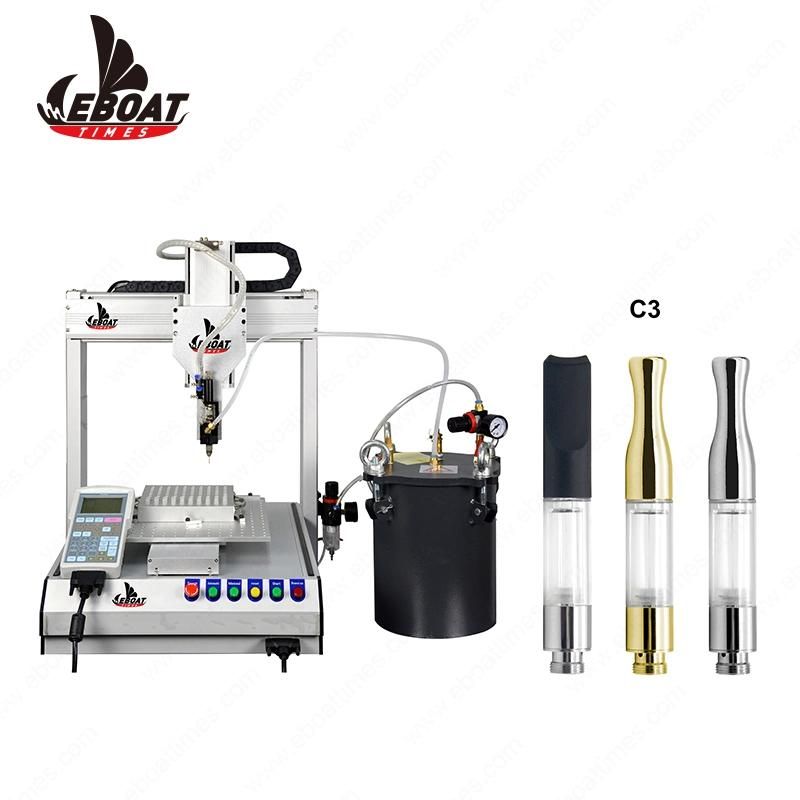

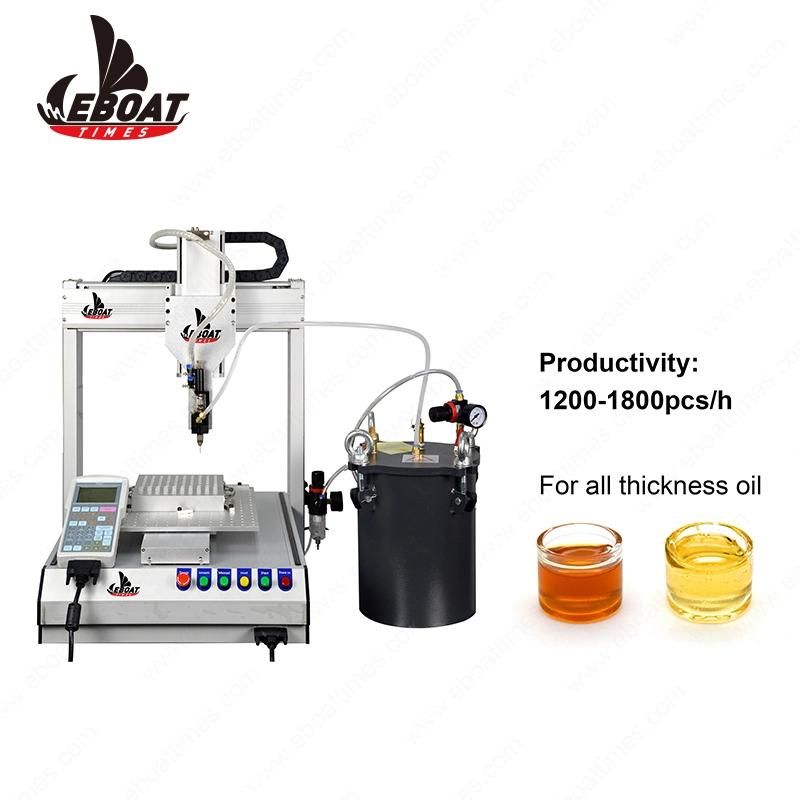

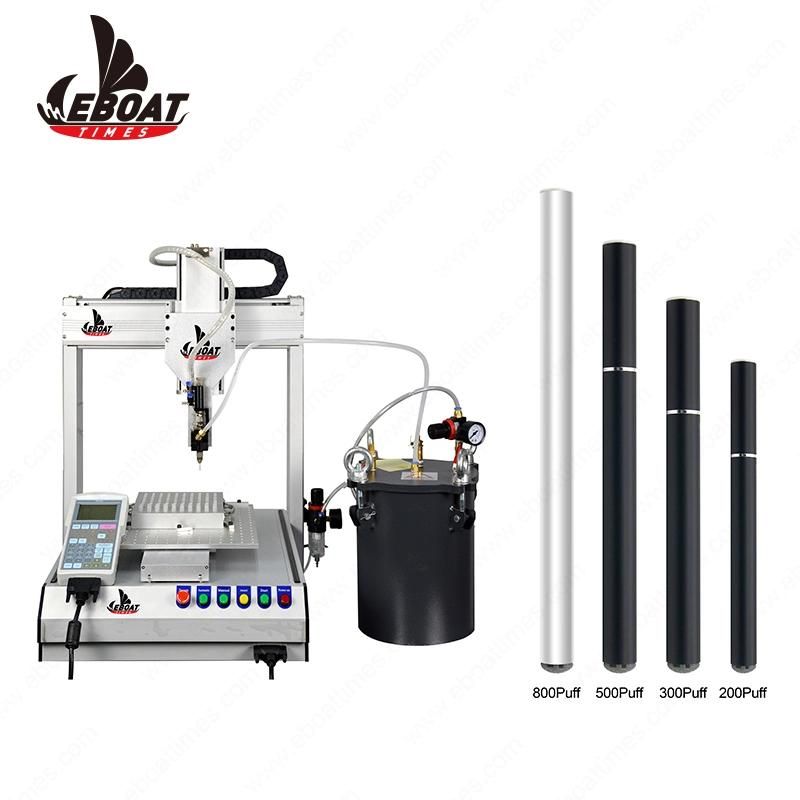

   EBOATTIMES E liquid oil bottle filling machine for thick  oil

________________________________________________________________________________________________

EBOAT TIMES meticulously focus on producing premium  vape cartridge, battery & disposable vape pen and providing customized branding and marketing strategies under the guideline of "Customers First "



Product Description

Features of F1 Oil Filling Machine:

1. Three heating systems. Fit for all thickness of Oil.
2. Custom fill tray for for cartridge, pod, 510/808d cartomizer, disposable e-cig, oil bottles, medical syringe,etc
3. Fully automatic, Easy to operate
4. Efficient: 1200-1800 pcs/hour
5. Working life: 10 years
6. Low Price. Factory diectly selling.

Detail information:
1. Filling precise: +/-0.02ml
2. Handle thick oil: Three heating systems (on needle, reservoir, transit pipe) to handle thick oil and you can choose any of them according to the thickness of your oil.
3. Reservoir options: 300ml, 500ml, 1L, 4L or customized size to meet your requirements
4. Material for oil reservoir: Stainless steel or Carbon steel (Food grade standard)
5. Warranty: 1 year


Specifications of F1 Oil Filling Machine:

Item Description	oil filling machine
Working area (X*Y*Z)	200*200*100mm
Speed	X & Y/Z (mm/sec): 0.1~800/ 500
Resolution	0.01mm/ Axis
Repetitive positioning accuracy	±0.01mm/ Axis
Program display	Teach pendant LCD
Programming method	Teach pendant
Power supply	AC 100-230V, 300W
Exterior dimension	580mm*520mm*490mm
Machine weight	Approx. 72KG
Working environment	Working relative humidity: 20-80%RH no condensation; Working temperature: 0-40ºC
Load Y/Z AIXS	5 Kg/ 3Kg
Program capacity	Min 100 group, 4000 points/group
Data storage type	CF Card
Motor system	Micro stepping motor
Control method	PTP & CP
Interpolation function	3 axes(suit for 3D requirement)
I/O signals port	8 inputs/8 outputs

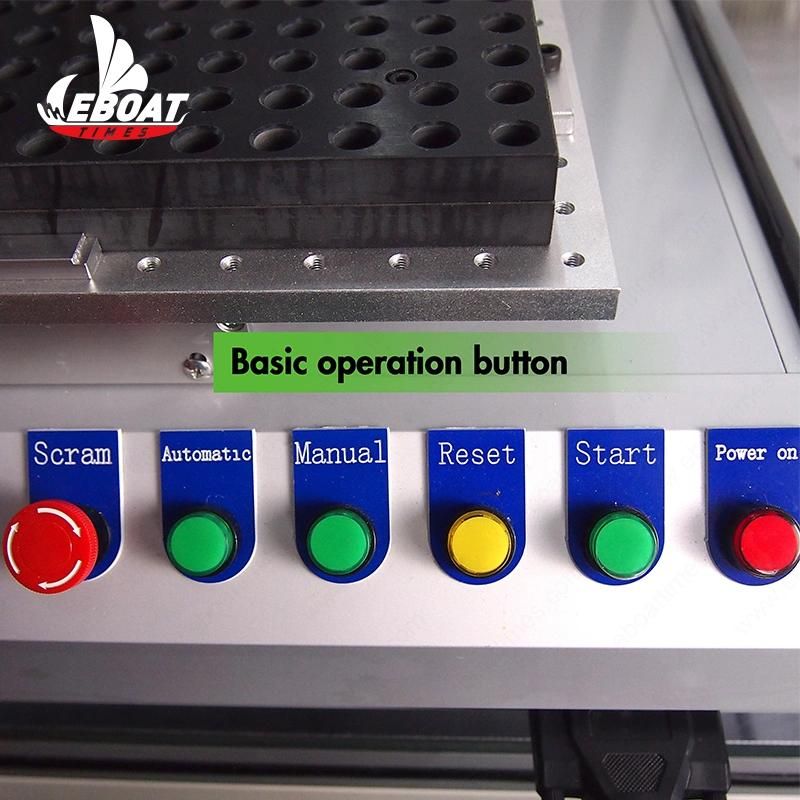

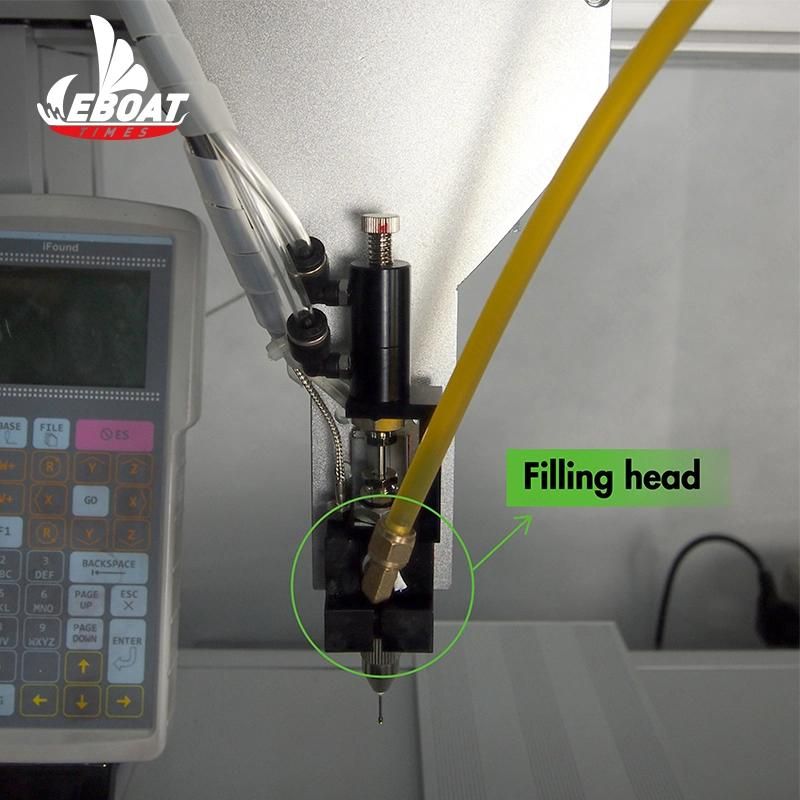

Picture Show





Custom Tray: 100 hole/225 hole




Related Products: F4 & F5 Screw tip filling machine

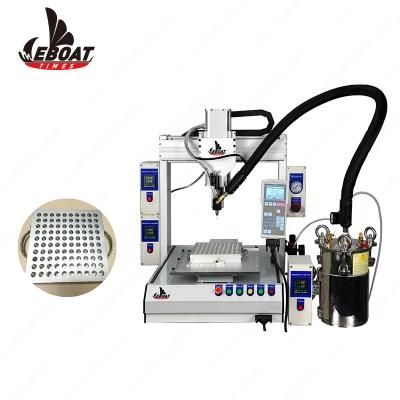

F4 filling machine
Touch Screen Control
2 heaters available

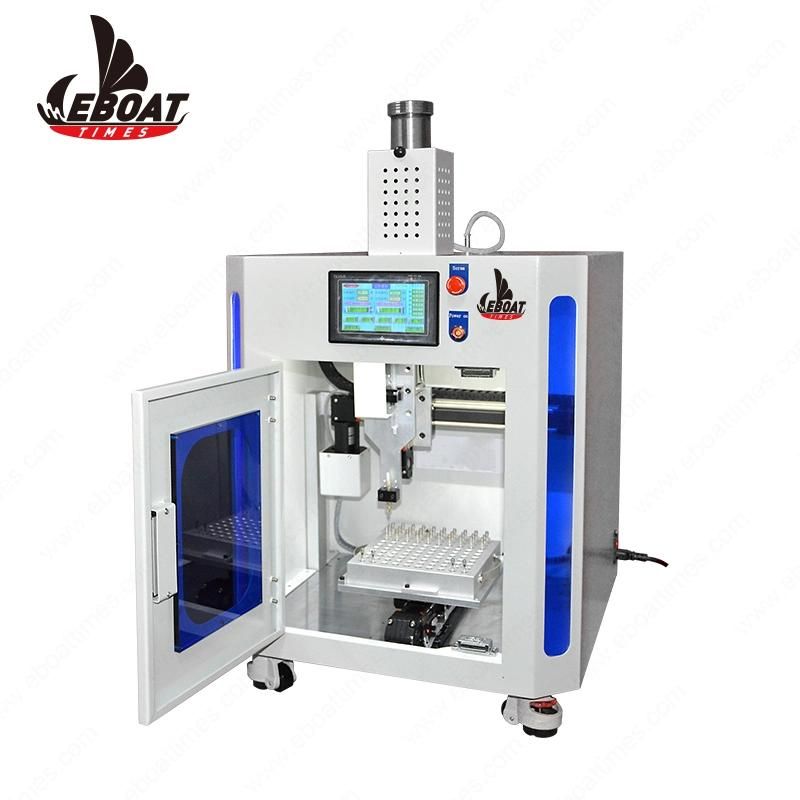

F5 Screw Tip filling machine
Screw different type mouthpiece for glass cartridge
Touch Screen Operate

Company Information

Shenzhen Eboat Times Technology Co., Ltd. is a China manufacturer specialized in production, sales and service. Located in Shenzhen, have over 120 employees, more than 30 professional sales to care for global customers inquiries.
The workshops occupy an area of more than 1,270 square meters. We have obtained CE, RoHS and FCC certificates for our products.


Certifications

CE/FCC/RoHs Certification

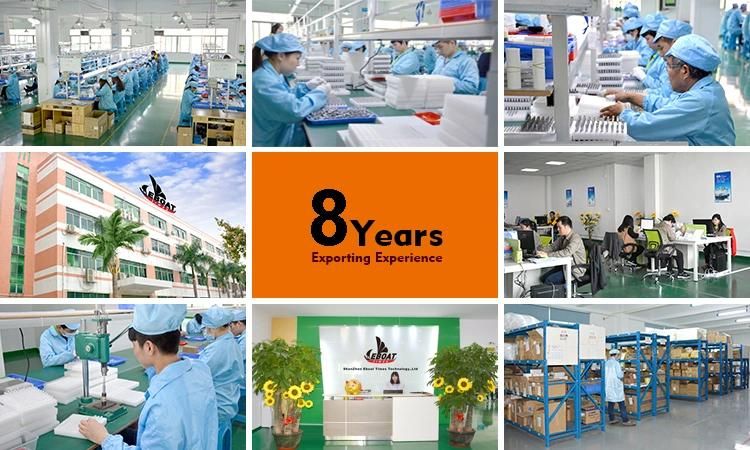

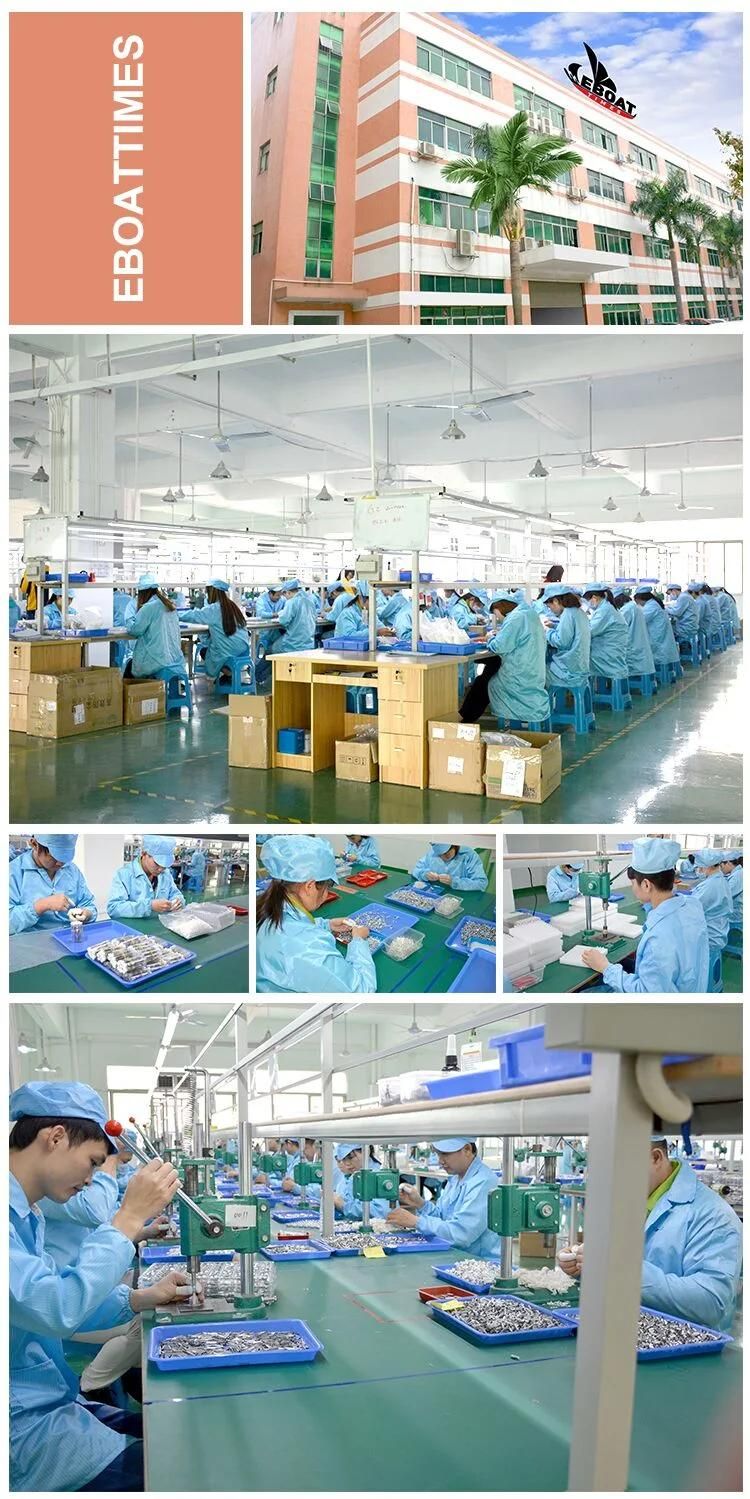

Factory Show

Warmly Welcome Your Coming!

Payment & Shipping

Payment: Paypal, TT, Western Union

If more than $5000, we accept 50%-70% deposit, Balance pay before shipping!

Shippment: DHL, UPS, Fedex, USA Special Line

Safe, Fast and cheap!



Why Choose US

1. Guarantee:              Top electronic Cigarette &  vape manufacturer
2. Quality:                    15 people Strict quality inspection department
3. Product Service:     One Stop Solution on Products, Custom Logo, Packing Design
4. R & D:                       More than 8 years R&D experiences.


10 people Professional R & D department
3000 square meters area
Precise & Advanced Machine
QC for all process of the products
15 production lines with more than 500 experienced worker
Over 50 people Professional Sales Team
Good After-sales service
Custom First is always our first principle

 ____________________________________________________________________________


1. About Wholesale:

    Our factory occupy an area about 3000 square meters. Daily output up to 40-60k pcs.



2. About OEM:

    Silk printing/Engrave logo on  cartridge, battery and disposable vape pen

    Gold/Silver Stamping, UV

    Custom packaging: Gift Box/Display box/Blister Card etc.



3. About After-sales service:

   1) Give replacements if there is quality problem of the part;
    2) valuate the customs risk and choose safest shipping company during different period;
    3) Follow status up time by time until the goods arrive client's hand.

___________________________________________________________________________________


FAQ for F1 oil Filling Machine:

1. Customer: Can i do the logo with my brand?
    Eboattimes: Sure, we could custom the logo on the products and packaging. The moq is only 1000pcs.

2. Customer: How About the MOQ?
    Eboattimes: Most product's MOQ are 1 pcs.

3. Customer: Can it fill the 30ml bottle?
    Eboattimes: Sure, the max filling capacity is 50ml.

4. Customer: How to order the products?
    Eboattimes:  Step1. Tell us what model and quality you need, Get Latest Quote
                         Step2. Make Proforma Invoice
                         Step3. Confirmed PI to us, and arrange the payment.
                         Step4. Once we get payment, we will make production samples to confirmed
                         Step5. After confirmed, start to produce.


Any more questions please feel free to contact me at any time!
