• Model NO.：QJJ175 510
• Power Source：Electric
• Automatic Grade：Automatic
• Casting Head：3+2
• Mould Size 1：330*200*30
• Mould Size 2：510*200*30
• Function：Automatic
• Transport Package：Wooden Box
• Specification：CE, SGS
• Trademark：Lejoy
• Origin：Suzhou, Jiangsu, China (Mainland)
• HS Code：84382000
• Production Capacity：6-15 Moulds,Minute

Basic Info.

Model NO. QJJ175 510 Power Source Electric Automatic Grade Automatic Casting Head 3+2 Mould Size 1 330*200*30 Mould Size 2 510*200*30 Function Automatic Transport Package Wooden Box Specification CE, SGS Trademark Lejoy Origin Suzhou, Jiangsu, China (Mainland) HS Code 84382000 Production Capacity 6-15 Moulds/Minute

Product Description

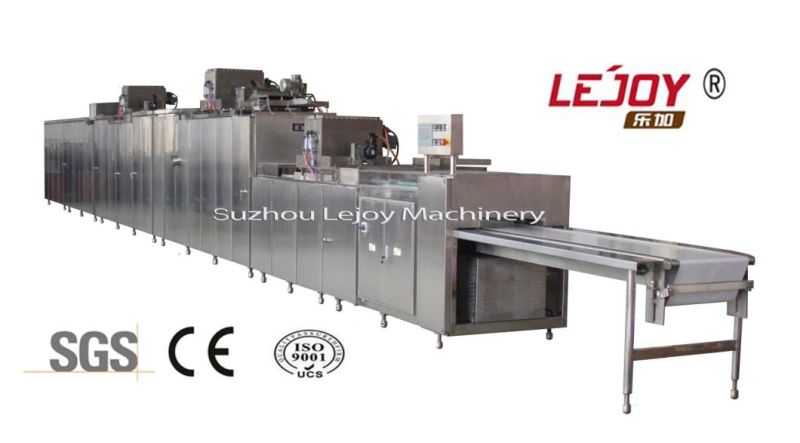

Big Central Chocolate Depositing and Moulding Line

The machine is a special equipment for chocolate casting form. Besids pure chocolate, chocolate with filling, multi-colours and multi-tastes can be produced. The machine set of the second baking mold, pouring three times, three vibration, three cooling, transmission, automatic ejection in one multi-casting machine.
This machine has the quantitative precision (each piston rod are used import seal, each are inlaid stainless steel piston set outside the rod), photoelectric control casting, electrical heating mode, automatic climate control, hot water circulation. It is suitable for the factory which has many varieties and large production capacity.
Main parameter:
Production ability: 6-15 moulds/minute
Mould dimension: 510× 200× 300mm
General power: 28KW (include refrigerate machine)
Weight: 5300KG
Outside dimension: 1800(include 200cm length transportation table)*120*210cm

Pics:







Type	Production capacity( moulds/minute)	Power(KW)	Mould number	Mould demensions(mm)	Weight (kg)	Outside dimension(mm)
QJJ150	6-15	7.47	200	275*175*30	500	4000*520*1500
QJJ175 (single casting head)	6--15	19	280	275*175*30	3500	16000*1000*1800
QJJ175( double casting heads)	6-15	23	330	330*200*30	4100	16000*1000*1800
QJJ330-510	6-15	28	380	510*200*30	5300	18000*1200*1900
QJJ275 (3-steps depositing)	6-12	38	410	275*175*30	6500	15420*5270*2100
QJJ1000	6-12	49	580	----------	8200	26800*3500*2550

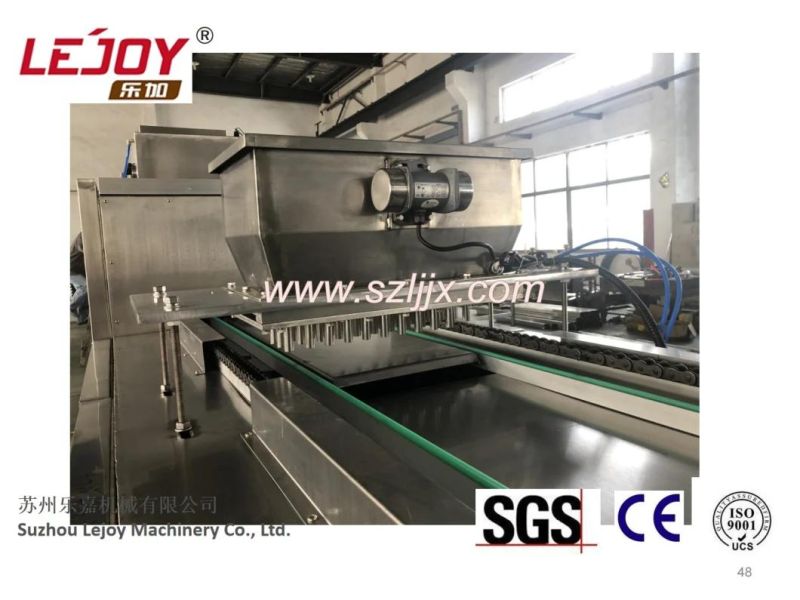

Nuts adding device
PLC CONTROL

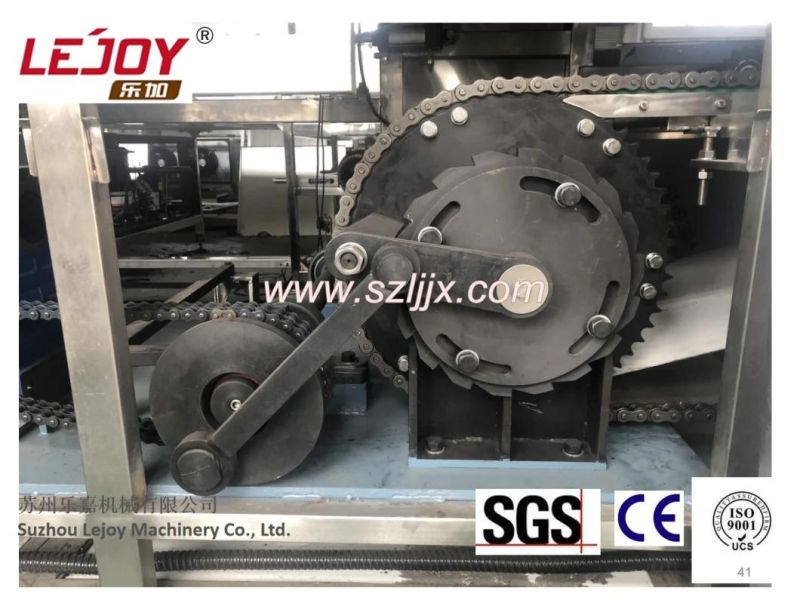

Driving system
