• Model NO.：KQ-1000
• Processing Material：Natural Ingredients
• Process：Homogenizing and Fining
• Name：Dairy Process Homogenization Machine Milk Homogen
• Material：Stainless Steel 304 ,316
• Polish：Morrior Polish
• Capacity：500L,H--10000L,H
• Pressure：250bar to 700bar
• Homogenizer Certificate：CE
• Homogenizer Appication：Milk , Juice, Beverage, Butter, Honey, Cream
• High Pressure Homogenizer：Customized Electricity Motor
• Stage：Two
• Motor：5.5-110kw.
• Voltage ,Hz ,Phase：Make It to Your Order
• Voltage ,Hz,Phase：Make It to Your Order
• MOQ：1set

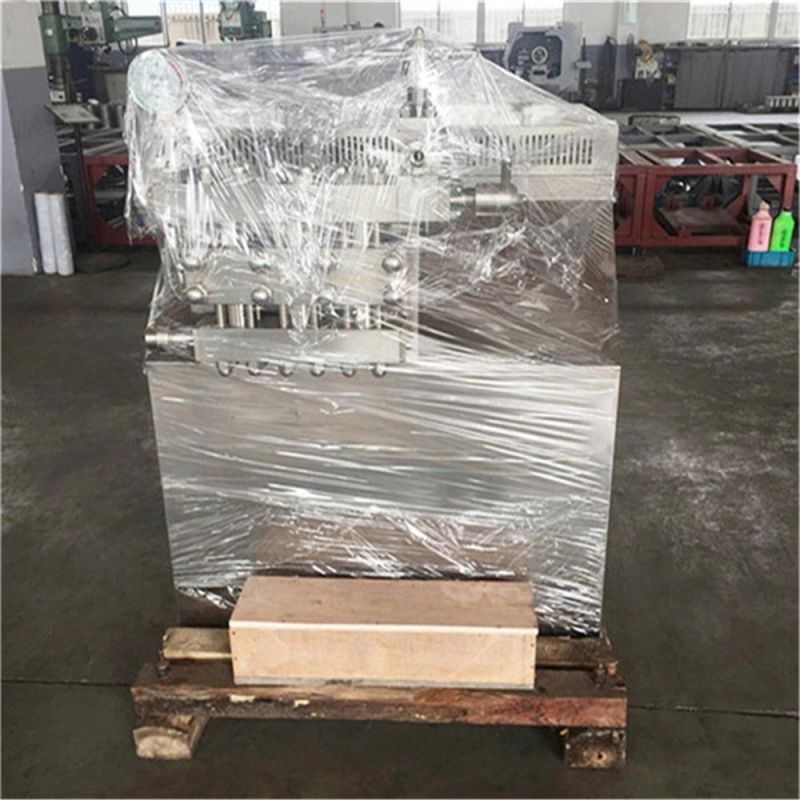

• Packing：Wooden Box
• Motor Brand：Siemens ,ABB ,China Brand
• Transport Package：Standard Wooden Box
• Specification：CE
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：1000units,Month

Basic Info.

Model NO. KQ-1000 Processing Material Natural Ingredients Process Homogenizing and Fining Name Dairy Process Homogenization Machine Milk Homogen Material Stainless Steel 304 /316 Polish Morrior Polish Capacity 500L/H--10000L/H Pressure 250bar to 700bar Homogenizer Certificate CE Homogenizer Appication Milk , Juice, Beverage, Butter, Honey, Cream High Pressure Homogenizer Customized Electricity Motor Stage Two Motor 5.5-110kw. Voltage ,Hz ,Phase Make It to Your Order Voltage ,Hz,Phase Make It to Your Order MOQ 1set Packing Wooden Box Motor Brand Siemens /ABB /China Brand Transport Package Standard Wooden Box Specification CE Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 1000units/Month

Product Description

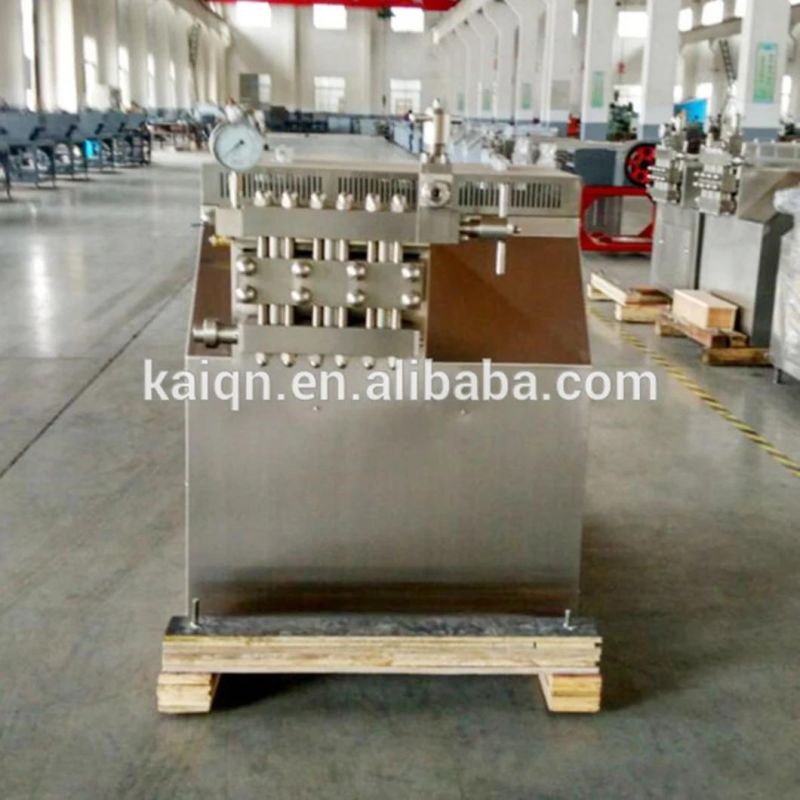

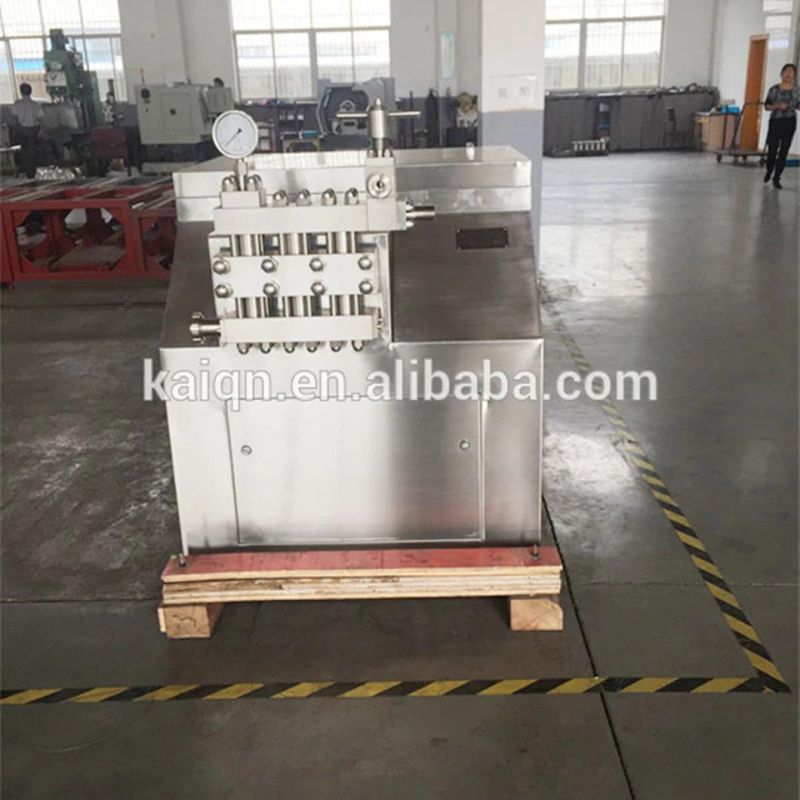

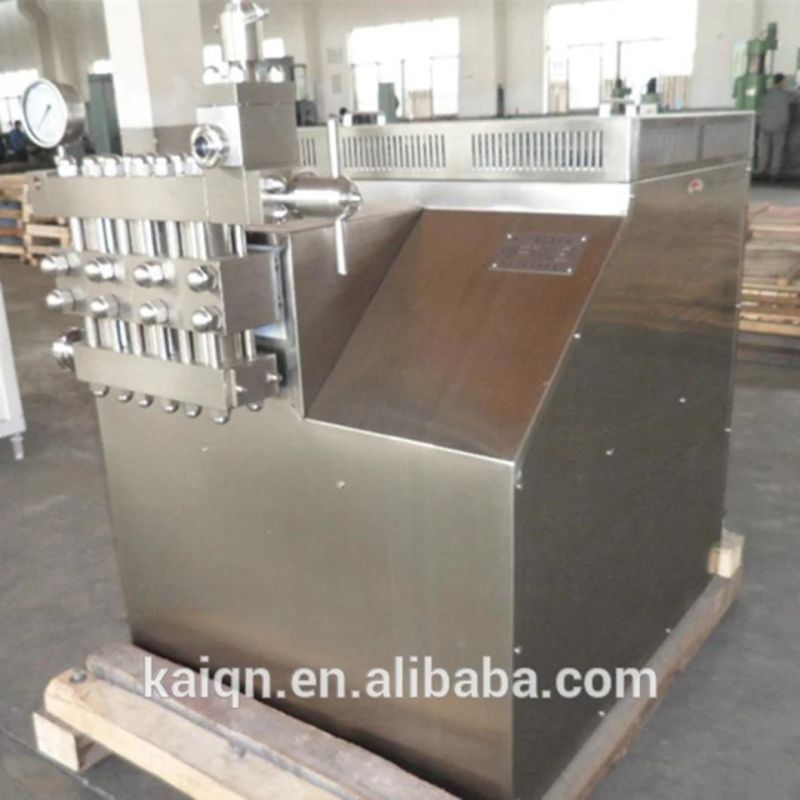

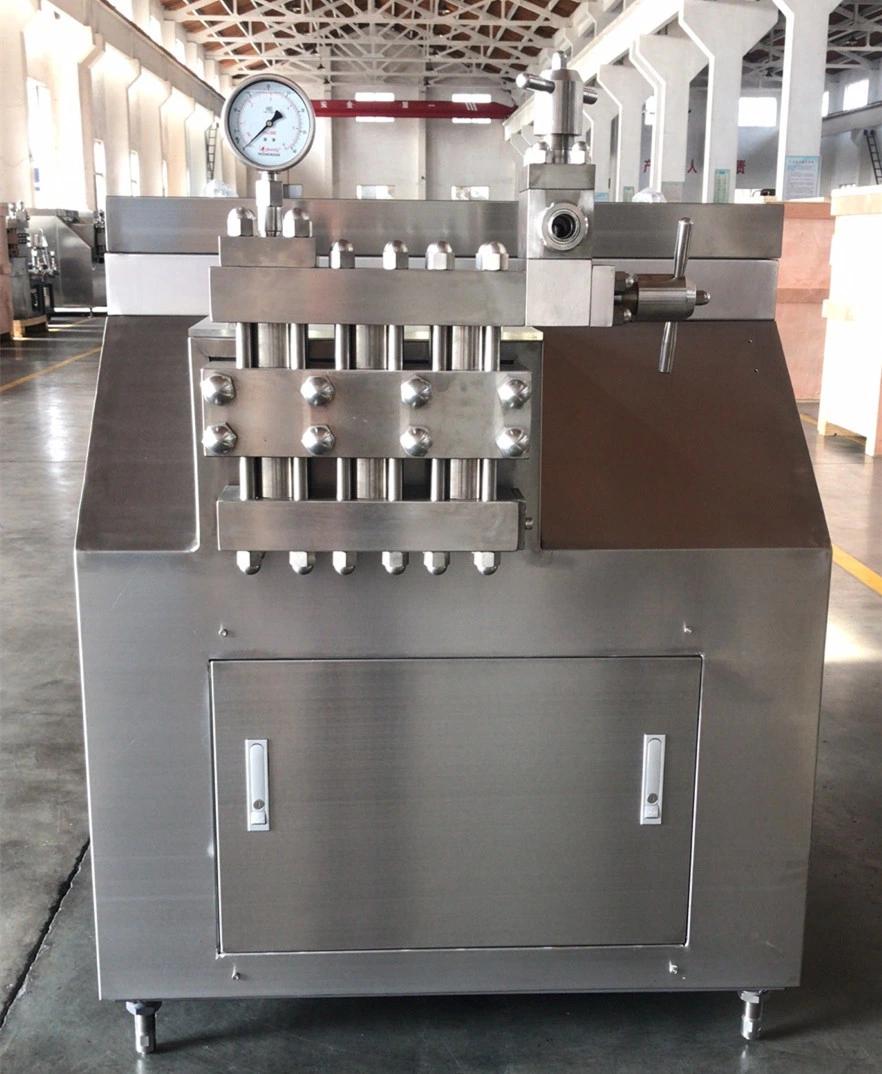

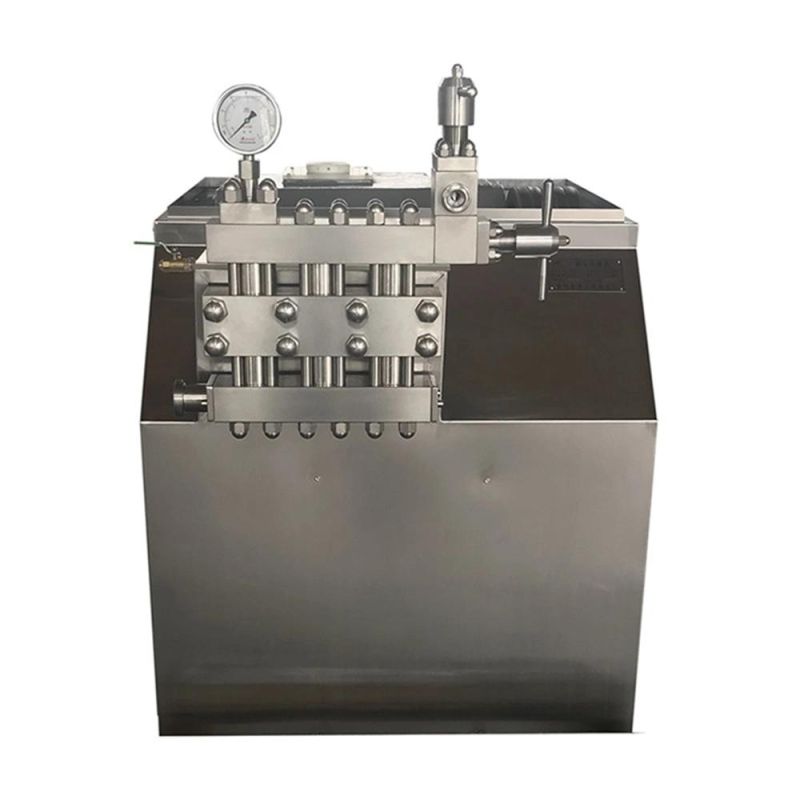

Dairy Process Homogenization Machine Milk Homogenizer Cream Homogenizer
Milk High Pressure Homogenizer, You Can Buy Various High QualityMilk High Pressure Homogenizer Products from us, the 250bar milk homogenizer FROM US

CE CERTIFICATED HOMOGENIZER FOR MILK, JUICE, DAIRY, ICECREAM, SOYBEAN MILK, HONEY
Soybean milk homogenizer, 40MPA homogenizer
Tea drinks homogenizer, juice homogenizer
High pressure homogenization is a standard industrial process for dairy products, to improve their stability and shelf life





Series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.
The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.
The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )

Model No. Technical parameter	KQ0.5-25	KQ1-25	KQ1.5-25	KQ2-25	KQ2.5-25	GJB3000-25 KQ3-25	KQ5-25
Rated pressure(MPa)	25	25	25	25	25	25	25
Rated flow ( Liters/H )	500	1000	1500	2000	2500	3000	5000
Medium temperature(C)	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Feeding pipe diameter(mm)	25	25	25	25	25	32	40
Discharge pipe diameter(mm)	15	15	20	20	20	20	25
Power of motor(Kw)	5.5	7.5	11	15	18.5	22	45
Volt and Electricity Flow	220V,60HZ,3PH	380V,50HZ	380V,50HZ	380V,50HZ	220V,60HZ,3PH	380V,50HZ	380V,50HZ
Outline dimension (m) Length * width * height	1.16×0.9×1.24	1.16×0.9×1.24	1.16×0.9×1.24	1.4×1.1×1.42	1.4×1.1×1.42	1.4×1.1×1.42	2.2×1.45×1.1
Weight(Tons)	0.4	0.5	1.25	1.25	1.25	1.25	1.7
